INSTALLATION INSTRUCTIONS
for Swinging French and Patio Doors (JII105)
2

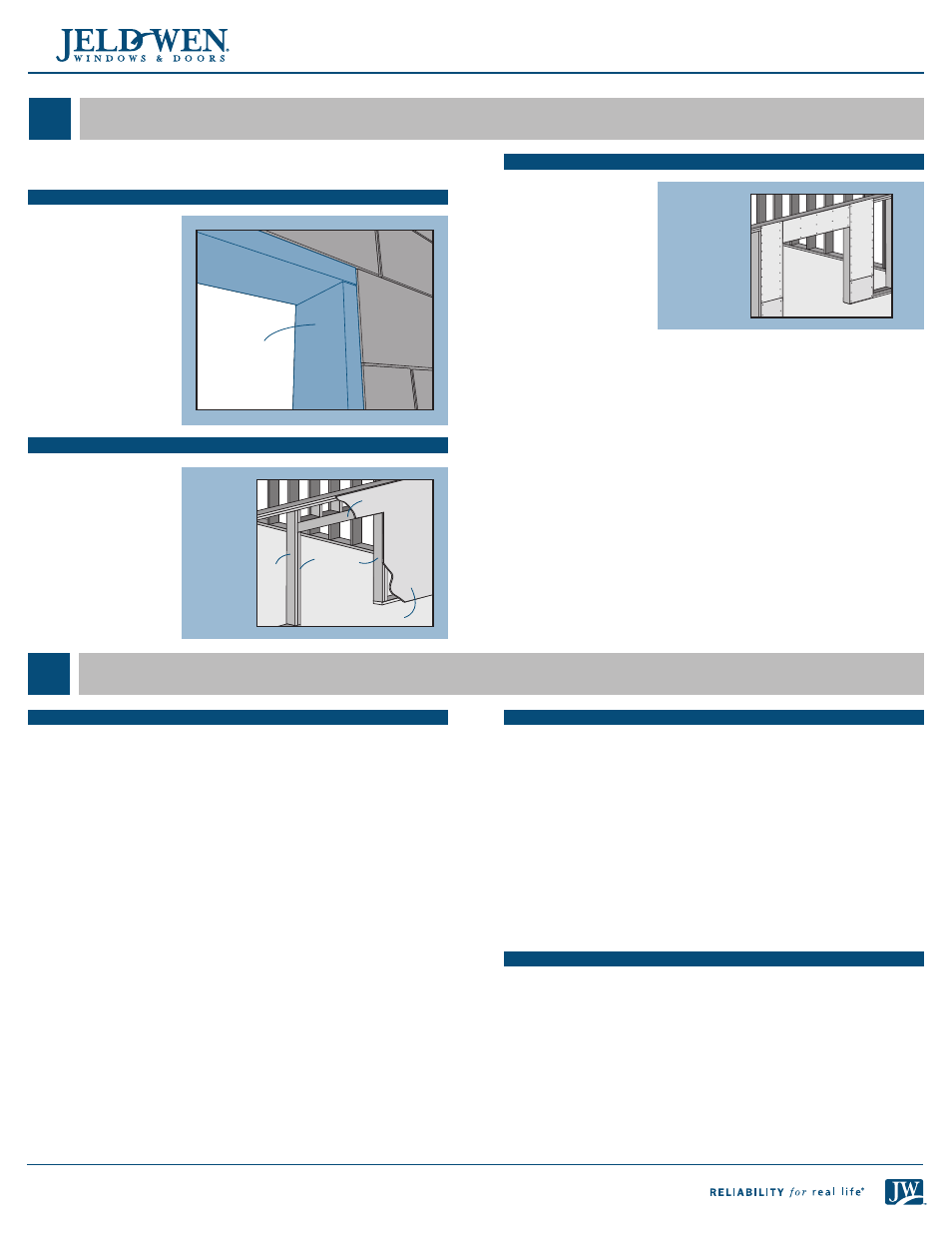

OPEN-STUD CONSTRUCTION
The wall framing
needs to be covered
by backing support
before the door can
be installed. The door
will be mounted with
the nailing fin/exterior
trim flush against
the applied backing
support.
This backing support should be a thin (max. 1/8" thick) sheet material
such as plywood or lauan. Completely surround the rough opening with
the backing support as shown. Backing support must be applied before
building wrap.
This installation guide specifically addresses masonry/block wall,
sheathed wall and open-stud construction.
MASONRy/BLOCK WALL CONSTRUCTION
This installation
assumes that a
building professional
has already properly
fastened and sealed
a framework of studs
(often called a buck)
to the concrete/
masonry wall.
FULLy ShEAThED WALL CONSTRUCTION
The wall framing is
covered by sheathing
and the door will be
mounted with the
nailing fin/exterior
trim flush against
the sheathing. This
installation assumes
building wrap is
properly installed
prior to installation.
ROUGH OPeNINGS
Open-Stud
with Backing
Sheathed
Wall
Trimmer
studs
Header
Sheathing
Sill area
King
stud
SAFETy
• Read and fully understand ALL manufacturers’ instructions
before beginning.
• Do not work alone. Two or more people are required. Use safe lifting
techniques.
• Use caution when handling glass. Broken or cracked glass can cause
serious injury.
• Wear protective gear (e.g. safety glasses, gloves, ear protection, etc.).
• Operate hand/power tools safely and follow manufacturer’s
operating instructions.
• Use caution when working at elevated heights.
SAFeTy & HANDlING
MATERIALS & DOOR hANDLING
• Make sure the operating panel is secured prior to installation.
• Heed material manufacturers’ handling and application instructions.
• Protect adhesive surfaces from dirt, moisture, direct sunlight and
folding over onto themselves.
• Do not put stress on joints, corners or frames.
• Store door in dry, well-ventilated area in vertical, leaning position to
allow air circulation; do not stack horizontally or drag on the floor.
• Protect from exposure to direct sunlight during storage.
• Install only into vertical walls and when conditions and sheathing
are dry.
• Never use solvent-based sealants on vinyl products.
IF INJURy OCCURS, IMMEDIATELy SEEK MEDICAL ATTENTION!
Buck
