INSTALLATION INSTRUCTIONS
for Custom and Premium Pocket Windows (JII022)
4
Exterior
Install
Shims
Interior
Install
Shims
5. For Custom Casement/
Awning/Picture
windows only, gently
pry out and remove
the interior trim
(screen stops, operator
cover etc.) from the
head, sill, and sides for
access to installation
holes. Drill pilot holes
into existing frame
through pre-drilled
installation holes
in the replacement
window jambs.
6. Install screws in every
pre-drilled hole and
tighten all screws
appropriately. Re-
apply all previously
removed interior
trim and sash stops.
Premium double-hung
operating units are
supplied with color-
matched vinyl caps. For
casement windows,
natural wood caps
are available through
dealers. Install caps into
the installation holes as
desired.
7. On double hung
operating windows,
remove the band
securing the jambs
at the check rail and
remove the lower
sash.
8. On double hung
operating units only,
jamb jack hardware
is mounted in the
middle installation
holes to allow
for some jamb
adjustment. Install
jamb jack screws until
captured (first ‘click’),
the screw may then be
screwed in or out to
adjust the jamb as needed. Replace lower sash.
Both Installs/Interior View
Screws
(Shims not
shown for clarity)
Remove
band
Screws
Both Installs/Exterior View
Verify
square,
level, &
plumb
Turn clockwise to
first click and adjust
as needed
Jamb Jack

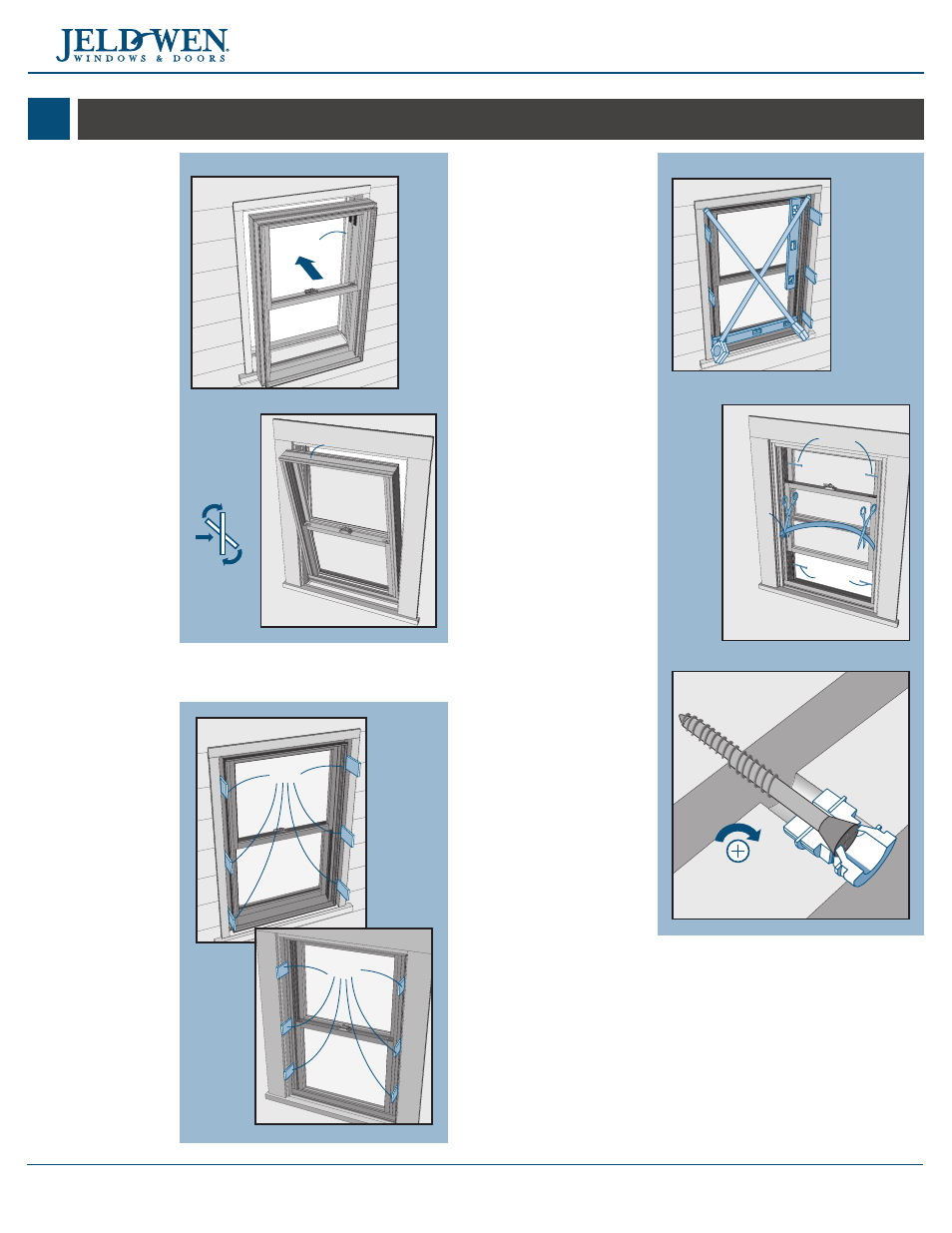

INSTALL WINDOW AND SEAL
3
Exterior/Interior
Installation:
1. Operating Double
hung windows will
have installation holes
pre-drilled through the
jamb liners. Remove
screen from the
Premium operating
casement windows.
For all other products,
remove the interior
trim or sash stop to
gain access to fastener
holes.
2. Slide replacement
window into the
opening until tight
against existing trim
stops. Be sure to hold
window in place until
fully secured.
Exterior Installation:
For custom double-
hung windows only,
position sill adapter
all the way to the
interior. For custom
Casement/Awning/
Picture windows, tack
sill adapter 1 7/32" from
the interior and set
window into place.
Interior Installation:
For custom double-
hung windows only, lift
window and slide sill
adapter underneath sill
positioned all the way to
the interior.
Both Installations:
3. Drill a pilot hole
through the lower
right installation hole
in the double hung
vinyl jambliner or in
interior wood stop
installation hole on
Premium casement,
Premium awning, or
fixed windows. Install
one of the installation
screws, but do not
fully tighten.
4. Shim unit and verify
window is square,
level, and plumb.
Exterior Install
Interior
trim stop
Interior Install
Exterior blind stop
1
2
3
