INSTALLATION INSTRUCTIONS
for Retractable Patio Door Screens (JII030)
4
(08/08)
© 2008 JELD-WEN, inc. | JELD-WEN and Reliability for real life are registered trademarks of JELD-WEN, inc., Oregon Usa.
All other trademarks are the property of their respective owners.
Please visit jeld-wen.com/resources for warranty and care
and maintenance information.
Thank you for choosing

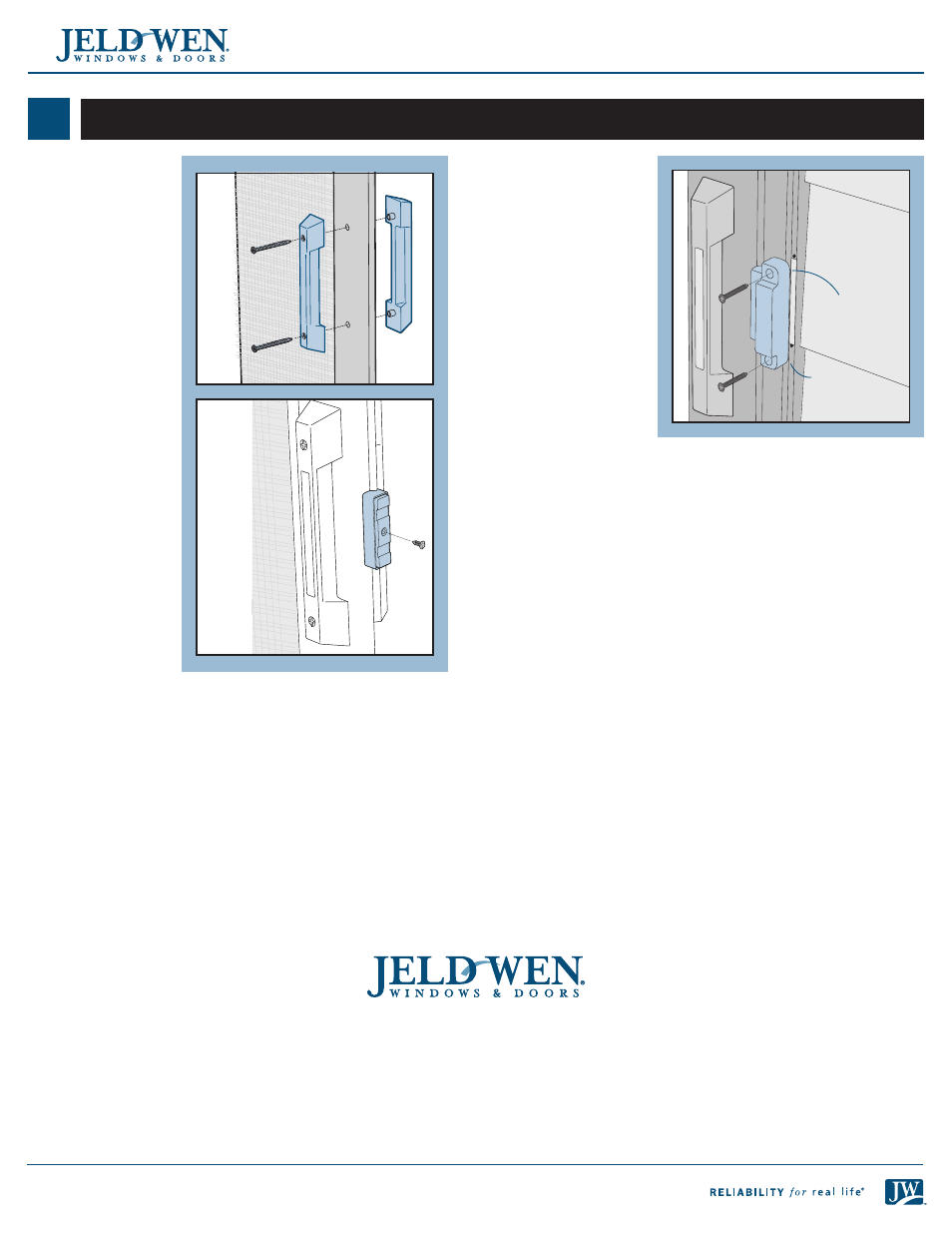

5. Extend screen all
the way open until
magnetic catch
holes align with the
accessory groove on
the door jamb.
6. Using the holes in
the magnetic catch
as a guide, mark
hole locations on
accessory groove.
The screen may
now be retracted to
simplify magnetic
catch installation.
7. Insert a groove
filler shim in the
accessory groove
between the marks.
8. secure catch with two 1 3/4" pan head screws.
COmPLETE INsTaLLaTION
4
1. Install handles with
the 1 3/4" screws;
screw heads should
be toward the
interior. Do not over
tighten the screws
because the handles
may crack.
2. Place strike plate
on strike plate
mount with the two
notches in the plate
facing out.
Note!
If more
magnetic attraction
force is needed, the
plate can be flipped
over.
3. secure with the 3/4"
mill finished flat
head screw.
4. Center magnetic
catch on strike plate
and connect.
Accessory
groove
groove filler
shim
