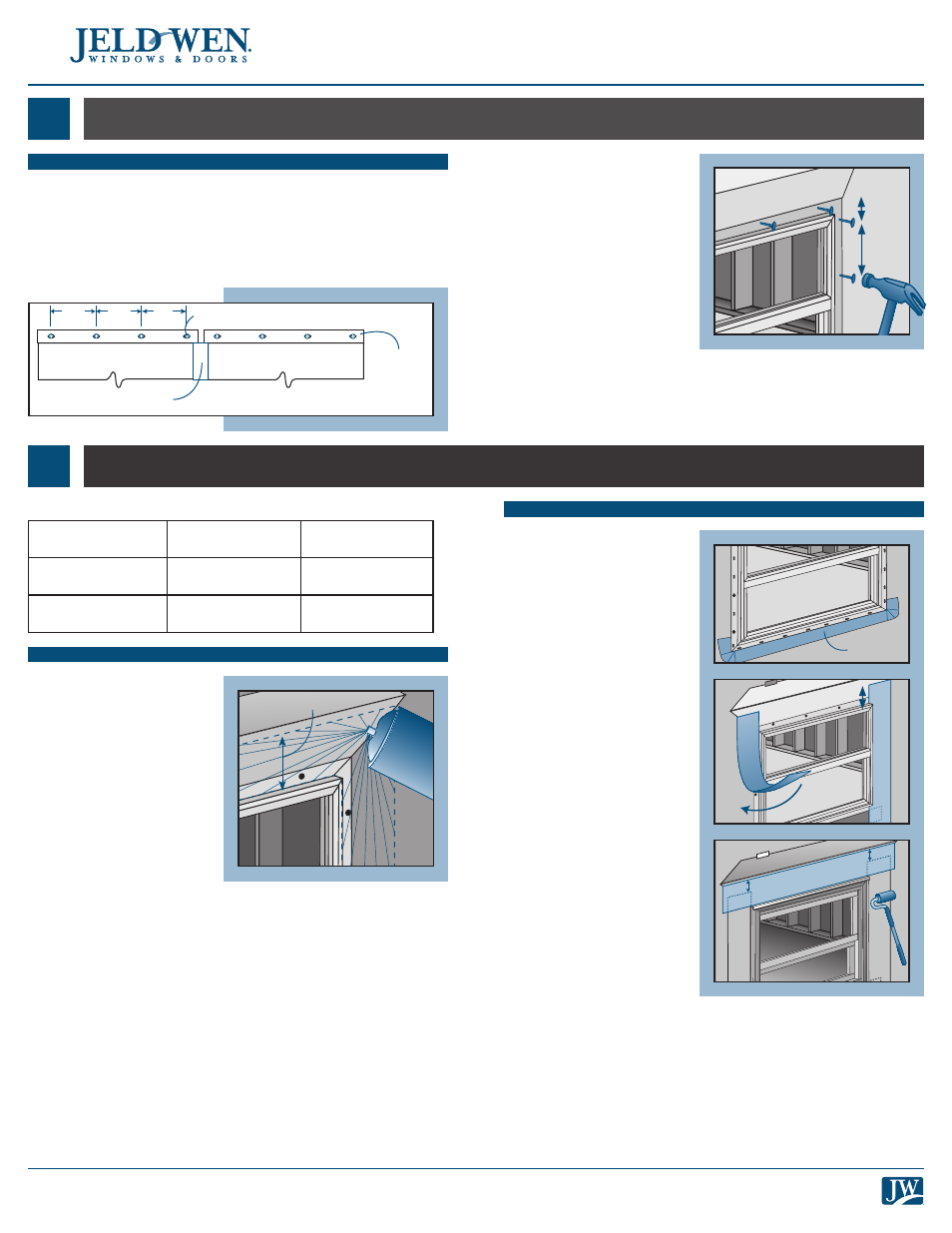

INSTALLATION INSTRUCTIONS
for Aluminum Windows with Nailing Fin (JII004)
5
SECURE WINDOW
Areas such as Florida and the Texas TDI region have different anchoring
requirements based on product certification. For information on specific
products, visit www.floridabuilding.org or www.tdi.texas.gov and
follow the anchoring schedule given in the drawings for the product
instead of the anchoring schedule in this document.
Note! Fastener (anchor) heads must be flush. Do not dent nailing fin.
• Fasten windows through the
nail fin holes 3" - 7" from
the corners and 8" apart all
the way around the window.
• Remove the shims from the
side jambs.
INSTALL WINDOW - CONTINUED
FLASH WINDOW - WINDOWS INSTALLED INTO STUD-FRAMING ONLY
5
6
APPLY THE SELF-ADHESIVE FLASHING
Note! Keep the edge of the
self-adhesive flashing as
close to the window frame as
possible and apply over the
nail fin.
1. Apply the side pieces
starting 3" above the header
and overlap the flashing on
the sill as shown.
2. Install drip cap if required.
Pre drill through the nailing
fin if required.
3. Center and apply the header
piece above the header,
overlapping the side pieces
as shown.
4. Press the flashing down with
a J-roller, being careful to
remove any gaps or bubbles
beneath self-adhesive
flashing (remove and
replace if necessary).
SPRAY ADHESIVE/PRIMER
Protect window from
overspray and apply spray
adhesive according to
instructions on the product to
nailing fin and building wrap
around the window as shown.
Sp
ra
y
Ad
he
siv
e
Cut pieces of self-adhesive flashing as follows:
MIN. SIZES OR
OTHER SPECIFIED
PG50 or below
(4" flashing)
Above PG50
(6" flashing)
One header piece 10" longer than
the header
14" longer than
the header
Two side pieces 8" longer than
the jamb
12" longer than
the jamb
Window Window
Mull joint
Nail fin
#10 x 1 1/2" Truss head screw 4" 4" 4"
8"
3"- 7"
3"
1"
1"
Flashing
Width of flashing
See
table
