EOTech Holographic Hybrid Sight I EXPS3-4 with G33.STS Magnifier User Manual
Page 24
2.1.6
Windage and Elevation Adjustments

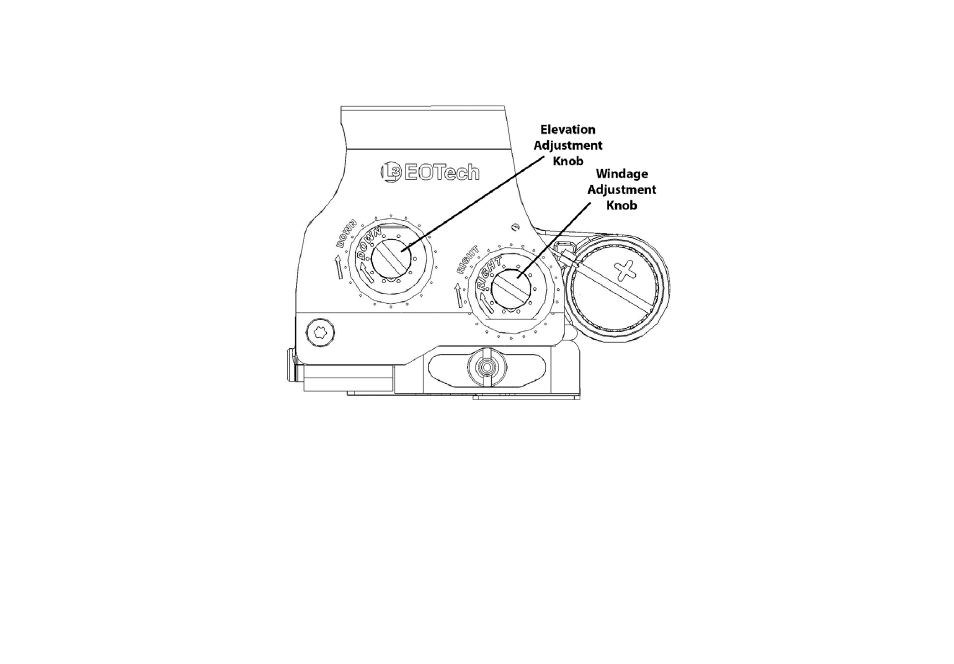

Fig 5: Adjustments
The HWS® features click mechanisms for elevation and windage adjustments. The elevation and wind-
age adjustment are located on the right-hand side of the sight (Figure 5). The knob towards the front
is the windage adjustment and the knob towards the rear is the elevation adjustment. Both of these
adjustment mechanisms are grooved with a slotted screw head and require the use of a screwdriver,
coin, or spent brass to turn. The elevation and windage adjustments are shown in Fig. 5. For both
16
