5
POWER AUTO UP DOWN MENU
POWER AUTO UP DOWN MENU
POWER AUTO UP DOWN MENU
POWER AUTO UP DOWN MENU

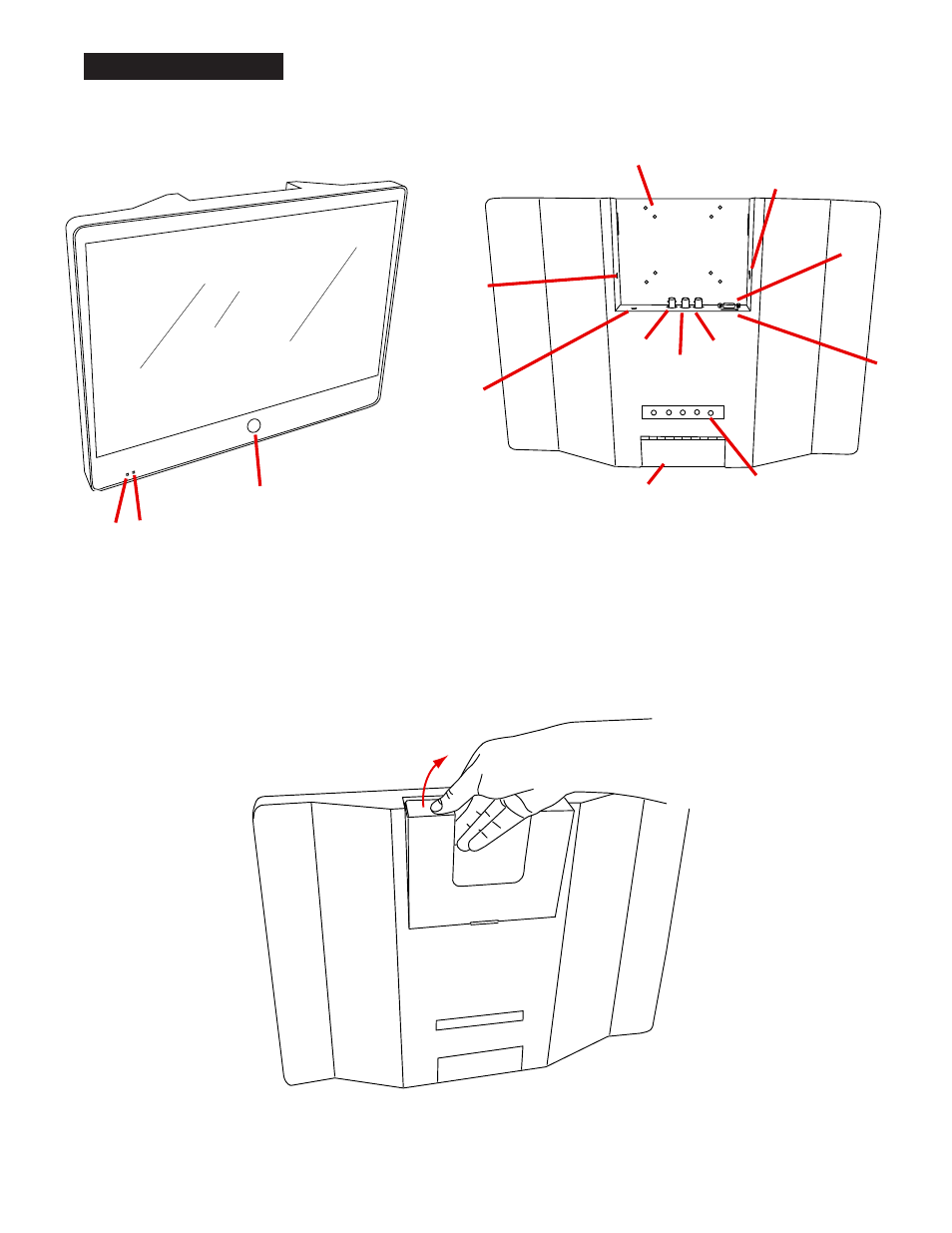

Display Functions
Camera
IR Sensor LED Flasher
BNC 2
Output
24VDC Power
Supply Input
(M19, M24 only)
Features
Control Access
The access door for the SD-Cards, AV connections, and power is located at the back of the unit and
can be removed by pulling upward and outward from the device.
VESA 75 & VESA 100
mounting patterns
POWER AUTO UP DOWN MENU
POWER AUTO UP DOWN MENU
LCD OSD
Menu Buttons
BNC 1
Output BNC 2
Input
Video SD
Card Slot
VGA Output
Camera & Camera OSD
Menu Access Door
24VDC Power
Supply Input
(M26, M32 only)
110VAC Power
Supply Input
(M26, M32 only)
