4.0 Concentrator Components
Review the figures below and become familiar with the important parts of your
VisionAire V Oxygen Concentrator.
4.1 Front of Concentrator

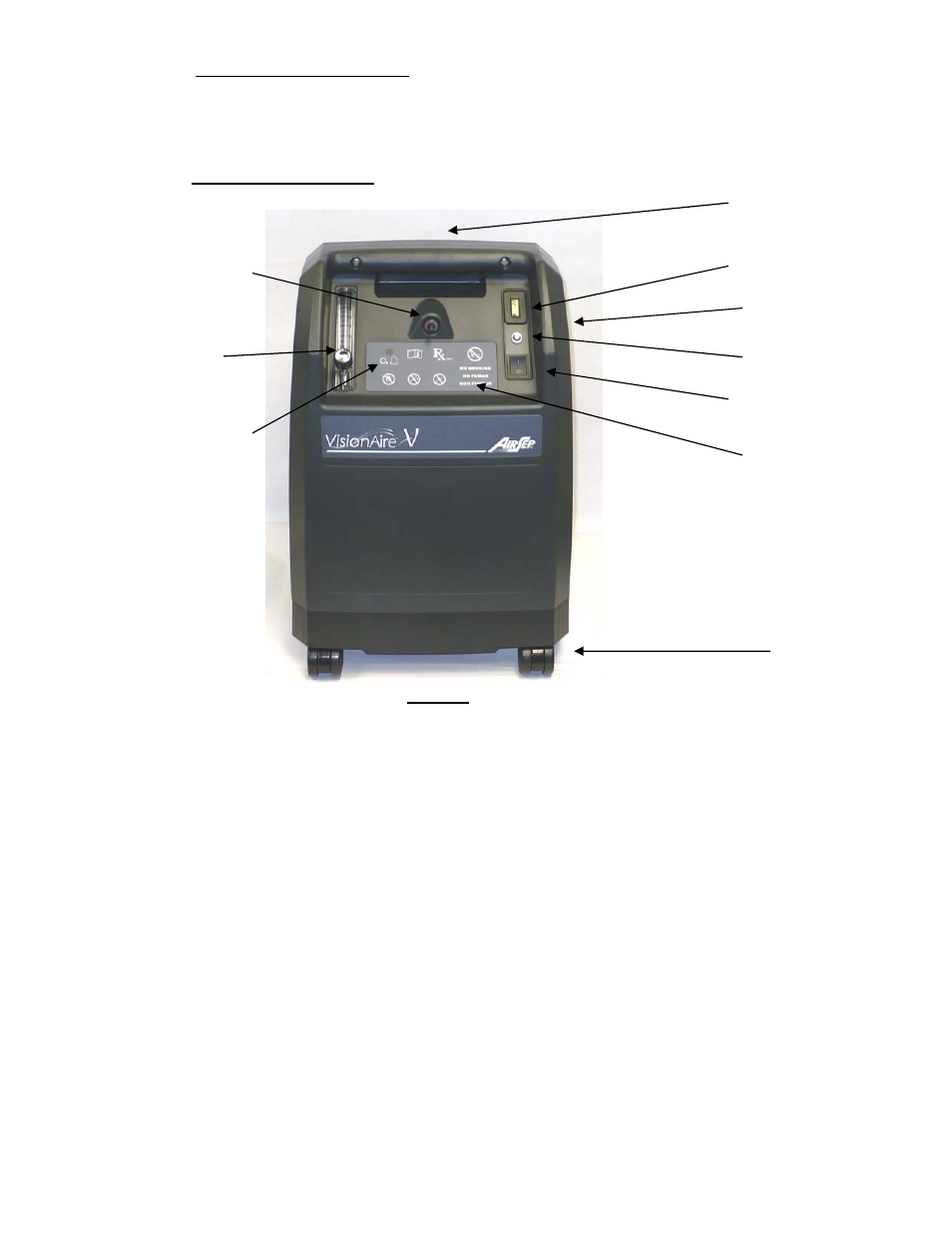

Figure 1
 Top and Side Handles:
o Enables convenience in carrying the unit.
 On/Off (I/0) Power Switch:
o Starts and stops the operation of the unit.
 Oxygen Outlet
o Provides connection for a humidifier (if required) or cannula.
 Circuit Breaker Reset Button:
o Resets the unit after electrical overload shutdown.
 Flowmeter Adjustment Knob:
o Controls the oxygen flow rate in liters per minute (LPM).
 Low Oxygen Concentration Indicator (optional):
o Illuminates (amber) if the unit is equipped with optional Oxygen Monitor and
detects low oxygen concentration.
 Hour Meter:
o Records the concentrator’s hours of operation.
 Instruction Label:
o Directs usage of the unit.
 Casters:
o Four casters enable unit to be easily moved, as needed.
Caster (s)
Circuit Breaker
Reset Button
Top Handle
Oxygen Outlet
Low Oxygen
Concentration
Indicator
(optional)
ON/OFF (I/0)
Power Switch
Flowmeter
Adjustment
Knob
Side Handle(s)
Instruction
Label
Hour Meter
