8 — MN189-1 A
Freestyle & FreeStyle 5

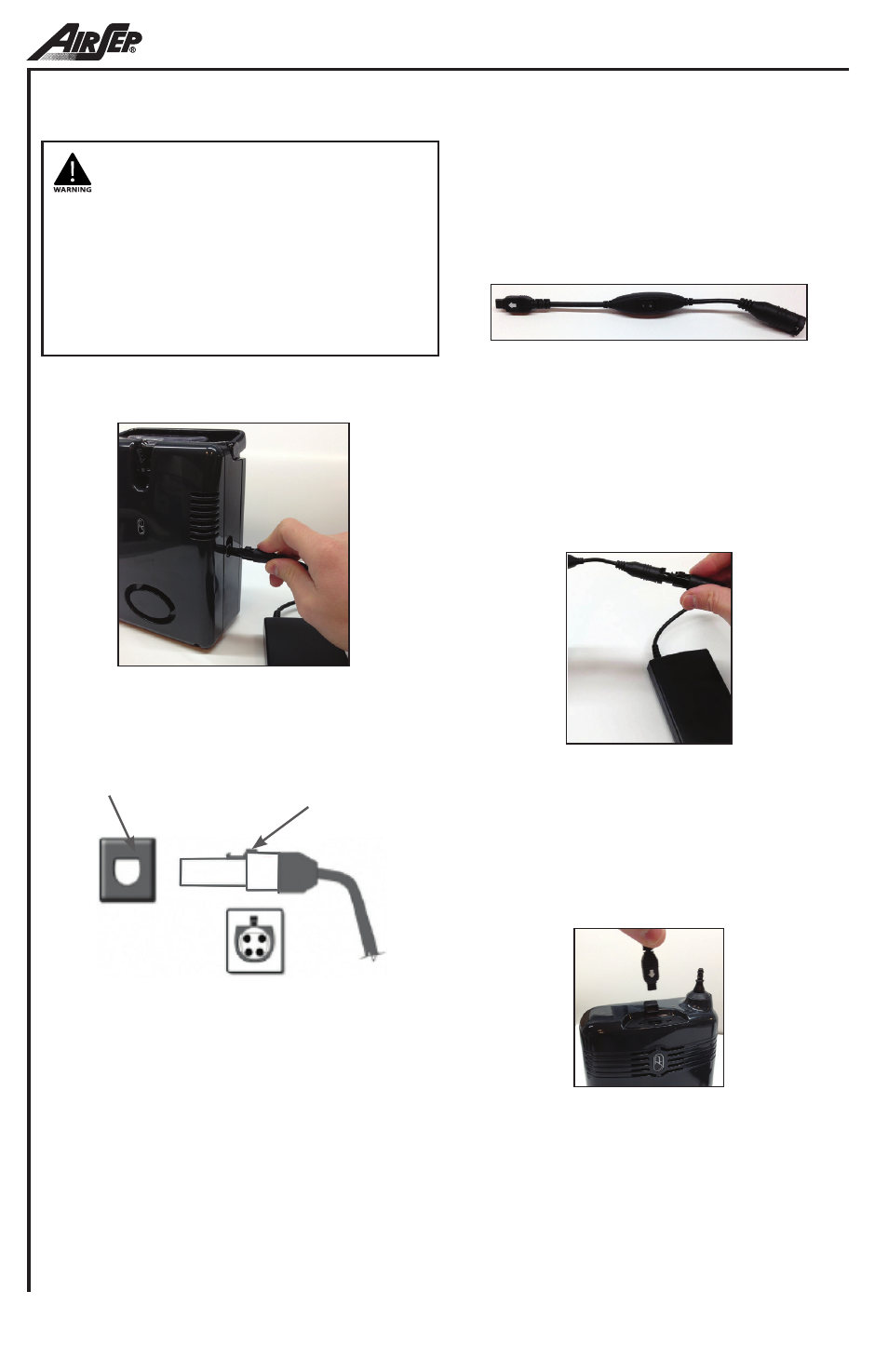

1. Connect the end of the coil cord on the
external power cartridge into the unit’s
power connection inlet.
Power Inlet Press to remove
power cord
2. Be certain to properly align the coil cord
connector into the inlet of the FreeStyle.
Take note of the D-shaped plug of both
the coil cord and the inlet connection
on the FreeStyle Once they are properly
aligned, push inward toward the
FreeStyle to lock the connection in place.
3. To disconnect the external power
cartridge, press the release button on the
top of the connector and pull outward.
Focus
1. Connect the end of the coil cord on the
external power cartridge to the Focus
adaptor (P/N CD035-1) shown below.
2. Be certain to properly align the coil cord
connector into the female inlet of the
adaptor. Take note of the D-shaped plug
of both the coil cord and the connector.
Once they are properly aligned, push the
coil cord into the connector to lock in
place.
3. Insert the male end of the connector into
the Focus power inlet with the arrow on
the side of the connector facing outward.
Do not force the connector into the
power inlet, as it can only be inserted one
direction.
4. To disconnect the external power
cartridge from the Focus, gently pull the
connector upward away from the top of
the Focus.
Connecting the External Power Cartridge
WARNING: ThE EXTERNAL POWER
CARTRIDGE MUST BE DISCONNECTED
FROM ThE ChARGER DOCk FOR USE
WITh AN AIRSEP PORTABLE CONCENTRATOR.
DO NOT ATTEMPT TO USE ThE EXTERNAL
POWER CARTRIDGE OR CONNECT IT TO ThE
FOCUS, FREESTYLE, OR FREESTYLE 5 WhILE IT
IS BEING ChARGED IN ThE DOCk.
