AXIS 231D+/232D+ Installation Guide Page 5
EN
GLISH

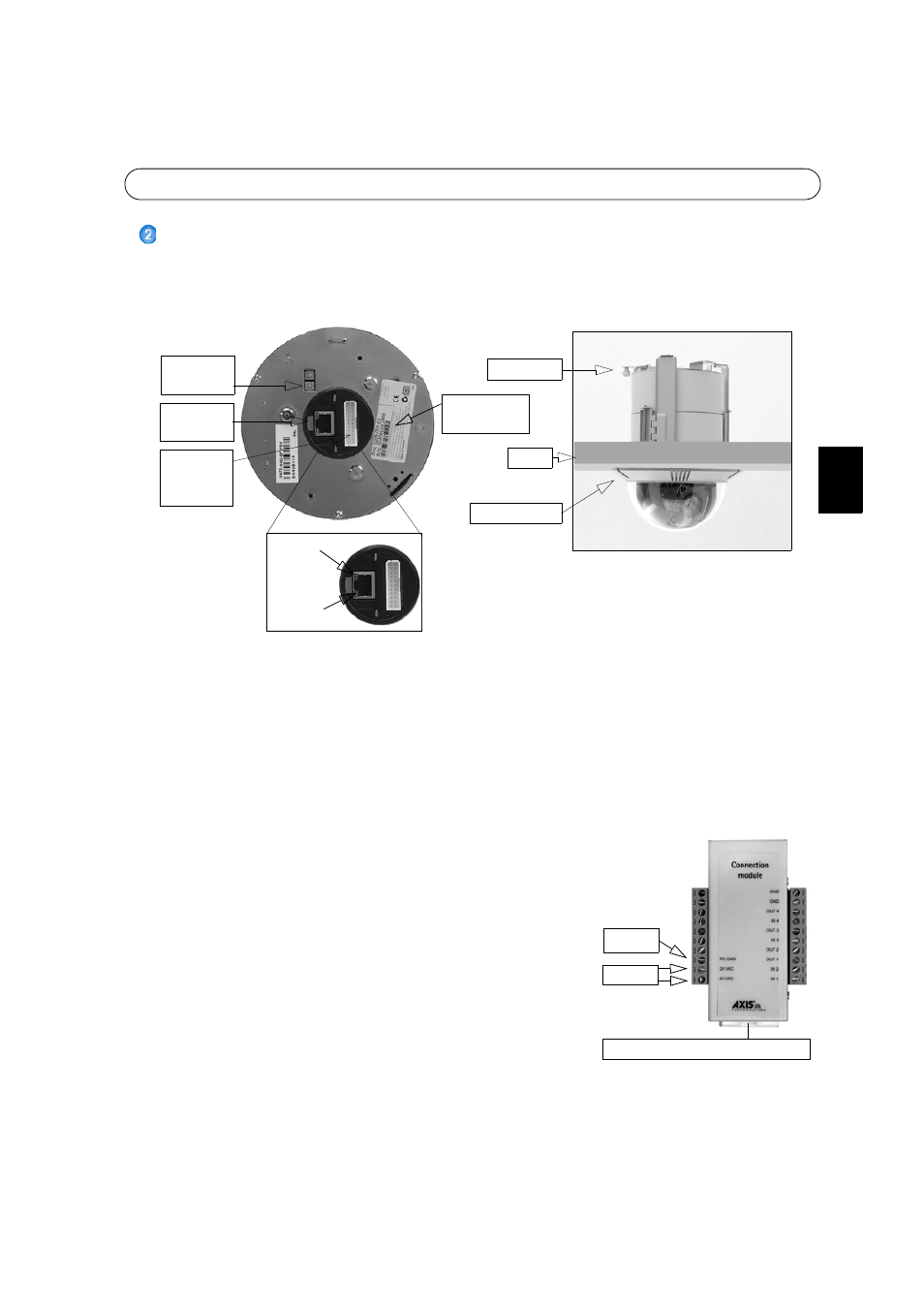

Drop Ceiling Mount
Follow these instructions to mount the dome camera:
1. Place the decoration ring on the ceiling and mark the three screw holes and the inner circle of the decoration
cover.
2. Cut the hole in the ceiling according to the markings.
3. Insert the mounting bracket in the ceiling with the holders folded in. Once in place, fold out the holders over
the inner ceiling and secure the bracket by tightening the screws.
4. Connect the connection module cable to the connection module.
5. Connect the Ethernet cable and connection module to the AXIS
231D+/232D+.
6. Connect the power cable (24V AC) to the connection module and
check that the power and network LEDs light up green.
7. Insert the fixing screw holder into the mounting slot.
8. Push the dome body up into the installed bracket and twist it
clockwise to lock it into the bracket.
9. Make sure the fixing screw is aligned with the bracket. Tighten the
fixing screw to secure the dome.
10. The hardware installation is now complete, proceed to Assign an
IP address, on page 7 to install the AXIS 231D+/232D+ on your
network.
Decoration ring
Fixing screw
Ceiling
module
Network
connector
Connection
connector
Network
Indicator
Power
Indicator
Control
button
Serial number
S/N
Side view
Rear view
24V AC
PS GND
Connection module cable connector
Connection module
