1-10 Chapter 1: Product introduction
1.7 Connectors

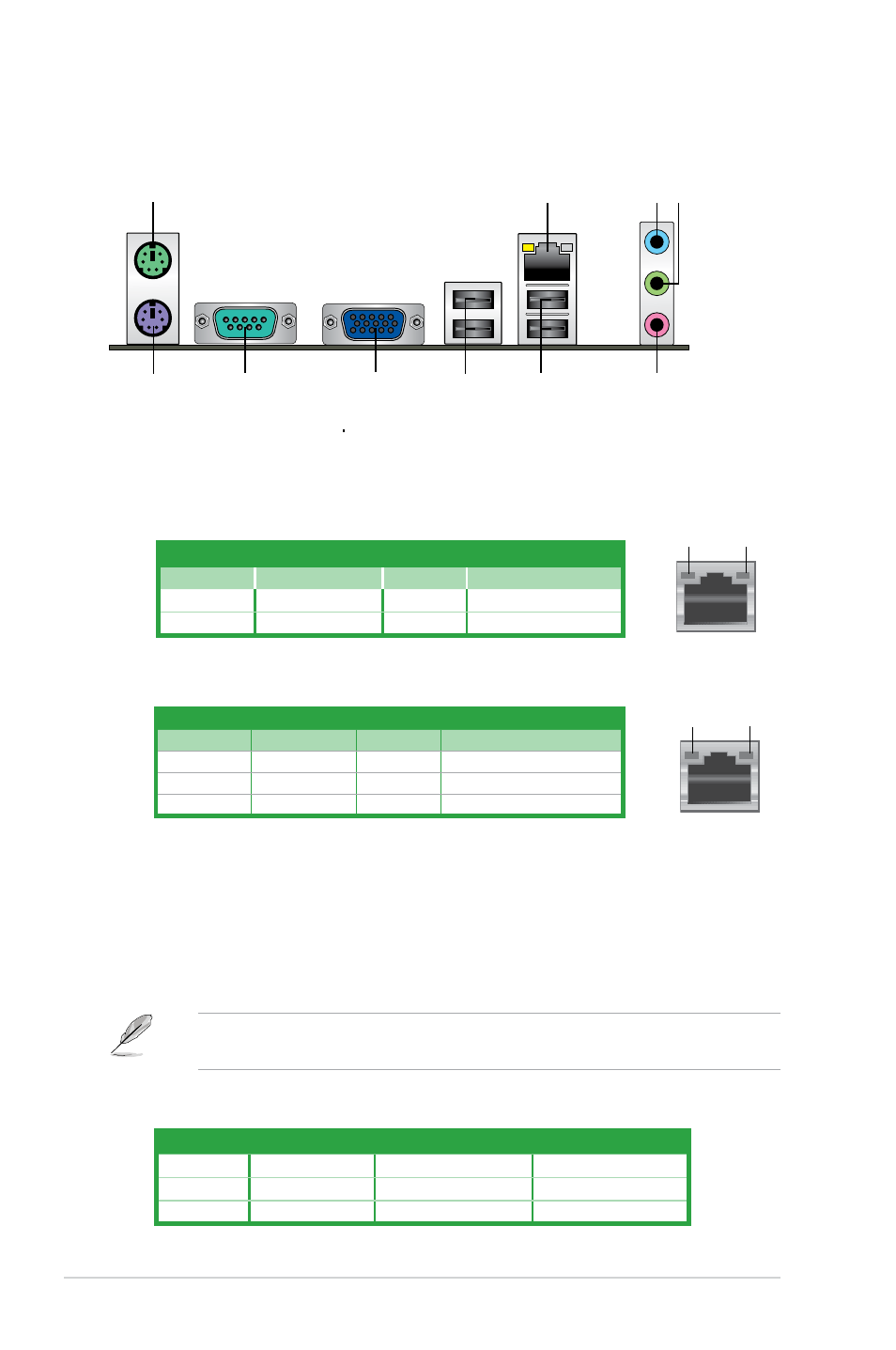

1.7.1 Rear panel ports
8
2
6 7 9 10
1 3 4
5
LED (Orange) LED (Green)
Status Description Status Description
OFF No link OFF No link
ORANGE 100Mbps connection GREEN 10Mbps connection
3. Line In port (light blue). This port connects a tape, CD, DVD player, or other audio
sources.
4. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel and
6-channel configurations, the function of this port becomes Front Speaker Out.
5. Microphone port (pink). This port connects a microphone.
Refer to the audio configuration table below for the function of the audio ports in 2, 4, or
6-channel configuration.
Audio 2, 4, or 6-channel configuration
Port Headset 2-channel 4-channel 6-channel
Light Blue Line In Rear Speaker Out Rear Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Bass/Center
LAN port
LED
(Green)
LED
(Orange)
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. LAN (RJ-45) port. This port allows connection to a Local Area Network (LAN) through
a network hub. Refer to the table below for the LAN port LED indications.
P5G41-M LX2 LAN port LED indications
Activity/Link LED Speed LED
Status
Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
