1-2 Chapter 1: Product introduction
1.2 Motherboard overview

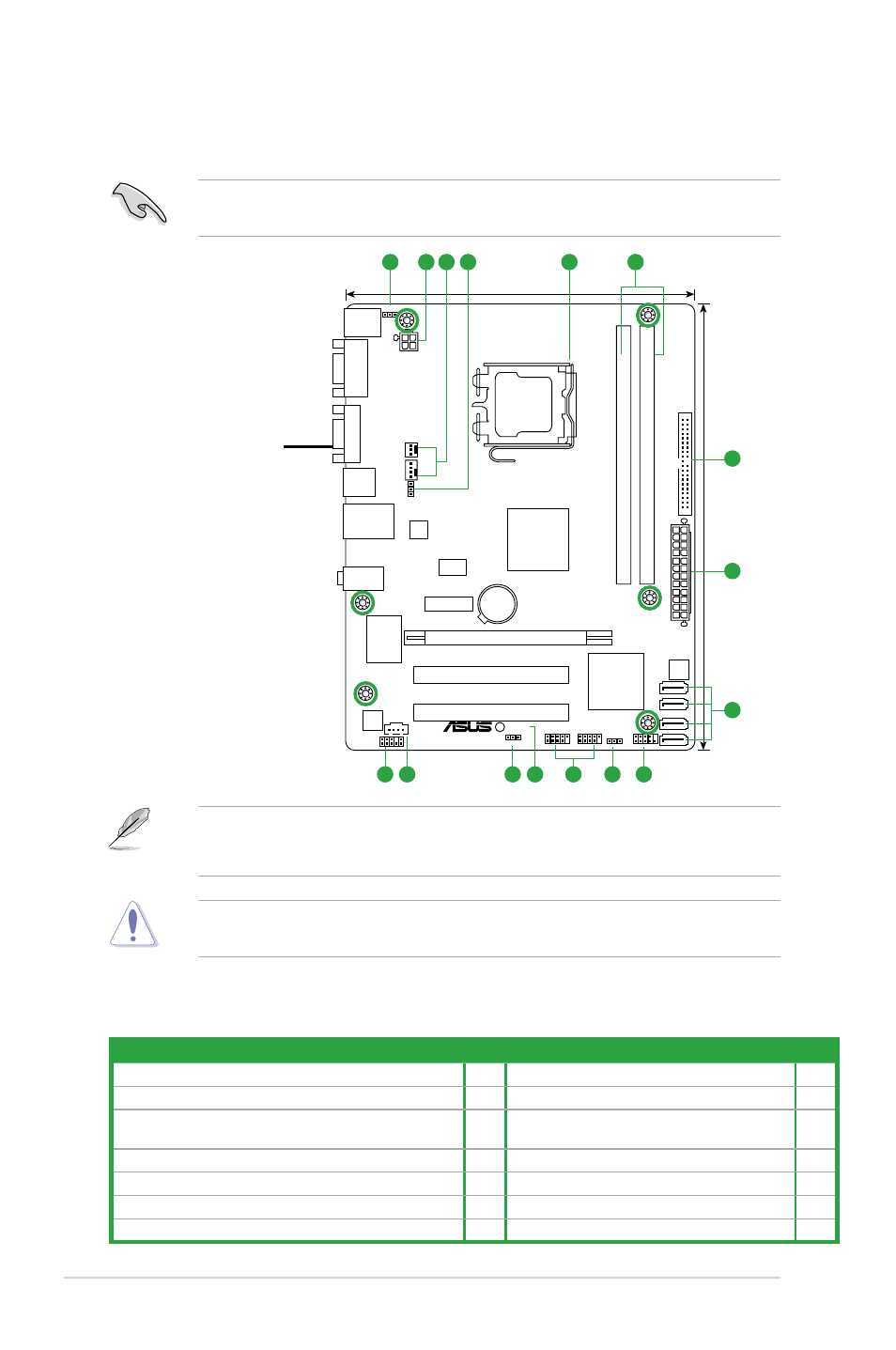

1.2.1 Motherboard layout
Place six screws into the holes indicated by circles to secure the motherboard to the
chassis. DO NOT overtighten the screws! Doing so can damage the motherboard.
Ensure that you install the motherboard into the chassis in the correct orientation. The edge
with external ports goes to the rear part of the chassis.
Place this side towards
the rear of the chassis.
1.2.2 Layout contents
P5G41-M LX2/GB
PCIEX16
PCI2
PCI1
PRI_IDE
USB56 USB78
AAFP
ICS
9LPRS441
ATX12V
EATXPW
R
CPU_FAN
Intel ®
G41
Lithium Cell
CMOS Power
Super
I/O
AUDIO
VIA
VT1705
RTL
8112L
KBMS
8Mb
BIOS
SB_PWR
CLRTC
USBPW1-4
USBPW5-8
KBPWR
19.1cm(7.5in)
24.4cm(9.6in)
LGA775
Intel ®
ICH7
DDR2 DIMM_A1 (64bit, 240-pin module
)
DDR2 DIMM_B1 (64bit, 240-pin module
)
VG
A
COM1
LAN1_USB12
USB34
SATA1
SATA2
SATA3
SATA4
CHA_FAN
CD
PCIEX1
F_PANEL
2
7
1 6 5 3 4
2
8
11 9 10 13 14 4 12
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. Keyboard power (3-pin KBPWR) 1-9 8. SATA connectors (7-pin SATA1-4) 1-12
2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-11 9. System panel connector (10-1 pin F_PANEL) 1-16
3. CPU and Chassis fan connectors (4-pin CPU_FAN and
3-pin CHA_FAN)
1-12 10. Clear RTC RAM (3-pin CLRTC) 1-8
4. USB device wake-up (3-pin USBPW1-4, USBPW5-8) 1-9 11. USB connectors (10-1 pin USB56, USB78) 1-14
5. LGA775 CPU socket 1-3 12. Standby power LED (SB_PWR) 1-1
6. DDR2 DIMM slots 1-3 13. Optical drive audio connector (4-pin CD) 1-15
7. IDE connector (40-1 pin PRI_IDE) 1-13 14. Front panel audio connector (10-1 pin AAFP) 1-15
• P5G41-M LX2 integrates the Realtek ® RTL8103EL Fast Ethernet controller.
• P5G41-M LX2/GB integrates the Realtek ® RTL8112L Gigabit Ethernet controller.
