ASUS P8Q67-M DO Series

1-16

• These connectors are set to [IDE Mode] by default. In IDE mode, you can connect Serial

ATA boot/data hard disk drives to these connectors. If you intend to create a Serial ATA

RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID Mode].

See section 2.5.5 SATA Configuration for details.

• Before creating a RAID set, refer to the RAID Supplementary Guide included in the

folder named Manual in the support DVD.

• You must install Windows

®

XP Service Pack 3 or later version before using Serial ATA

hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if

you are using Windows

®

XP SP3 or later version.

• When using hot-plug and NCQ, set the SATA Mode item in the BIOS to [AHCI Mode].

See section 2.5.5 SATA Configuration for details.

8.

Intel

®

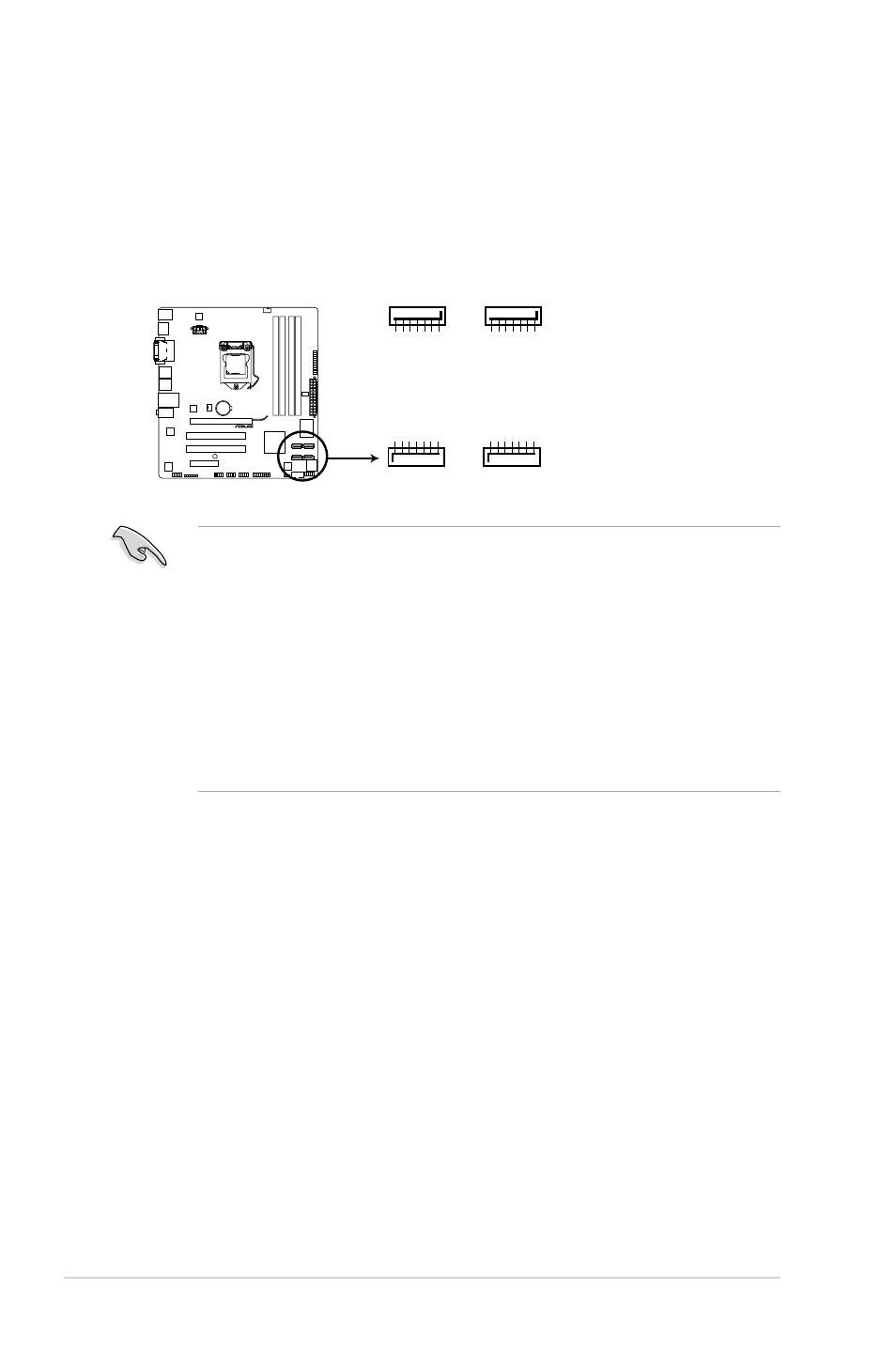

Q67 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4 [blue])

These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via

Serial ATA 3.0 Gb/s signal cables.

If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 0+1(10)

configurations with the Intel

®

Matrix Storage Technology through the onboard Intel

®

Q67 chipset.

P8Q67-M DO/USB3/TPM

P8Q67-M DO/USB3/TPM Intel

®

SATA 3.0Gb/s connectors

GN

D

RSATA_TXP1

RSATA_TXN1

GN

D

RSATA_RXP

1

RSATA_RXN1

GN

D

SATA3G_1

SATA3G_3

SATA3G_2

SATA3G_4

GN

D

RSATA_RXN3

RSATA_RXP3

GN

D

RSATA_TXN3

RSATA_TXP3

GN

D

GN

D

RSATA_TXP2

RSATA_TXN2

GN

D

RSATA_RXP

2

RSATA_RXN2

GN

D

GN

D

RSATA_RXN4

RSATA_RXP4

GN

D

RSATA_TXN4

RSATA_TXP4

GN

D
