ASUS P8Q67-M DO Series

1-12

1.7.2

Internal connectors

1.

Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports

either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel

audio I/O module cable to this connector.

• We recommend that you connect a high-definition front panel audio module to this

connector to avail of the motherboard’s high-definition audio capability.

• If you want to connect a high-definition front panel audio module to this connector,

set the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an

AC'97 front panel audio module to this connector, set the item to [AC97]. By default,

this connector is set to [HD]. See section 2.5.10 Onboard Devices Configuration for

details.

2.

Serial port connector (10-1 pin COM1)
This connector is for a serial (COM) port. Connect the serial port module cable to this

connector, then install the module to a slot opening at the back of the system chassis.

The COM module is purchased separately.

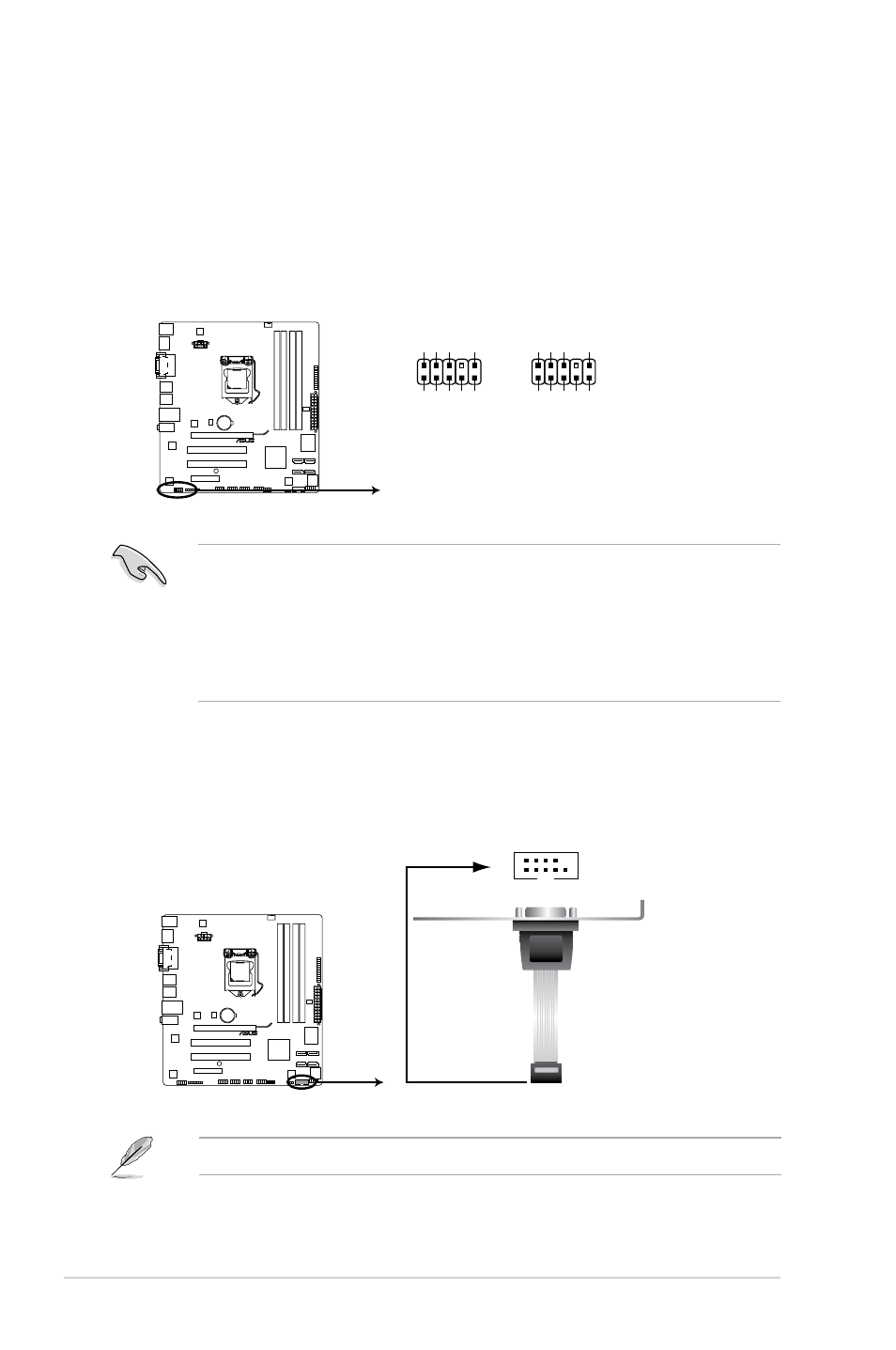

P8Q67-M DO/USB3/TPM

P8Q67-M DO/USB3/TPM Front panel audio connector

AAFP

PIN 1

GN

D

PRESENCE#

SENSE1_RETUR

SENSE2_RETUR

PORT1

L

PORT1

R

PORT2

R

SENSE_SEND

PORT2

L

HD-audio-compliant

pin definition

PIN 1

AGND

NC

NC

NC

MIC

2

MICPWR

Line out_

R

NC

Line out_L

Legacy AC’97

compliant definition

P8Q67-M DO/USB3/TPM

P8Q67-M DO/USB3/TPM Serial port (COM1) connector

PIN 1

COM1
