REMOVE THE PACKAGING
• Lift out the wooden crossmember, as well as the top
protective carton.
/LIWRXWWKHIRXU´/µVKDSHGSRO\VW\UHQHSURWHFWLRQSUR¿OHV
• Remove the protection moldings around the smaller
carton box.
• Remove the small box housing the motor.
• Lift the hood out of the box.
CAUTION
Lift the hood by grasping
the outside edges of the inlet opening of the hood.
'RQRWOLIWWKHKRRGE\WKHH[KDXVWRSHQLQJGLYLGHU³
damage will occur!
• Remove the shipping screws holding the wood
mounting piece to the back side of the hood.
Set aside the wood mounting piece and screws
for later installation. Do not discard.
• Remove the “V” shaped carton insert.
• Remove the parts package from the “V” shaped
cardboard insert.
• Remove the junction box cover and knockout.
• Install the strain relief onto the back or top of the hood.
• Remove all tape and packing material from the hood, duct
transition and motor.
Installation Preparation

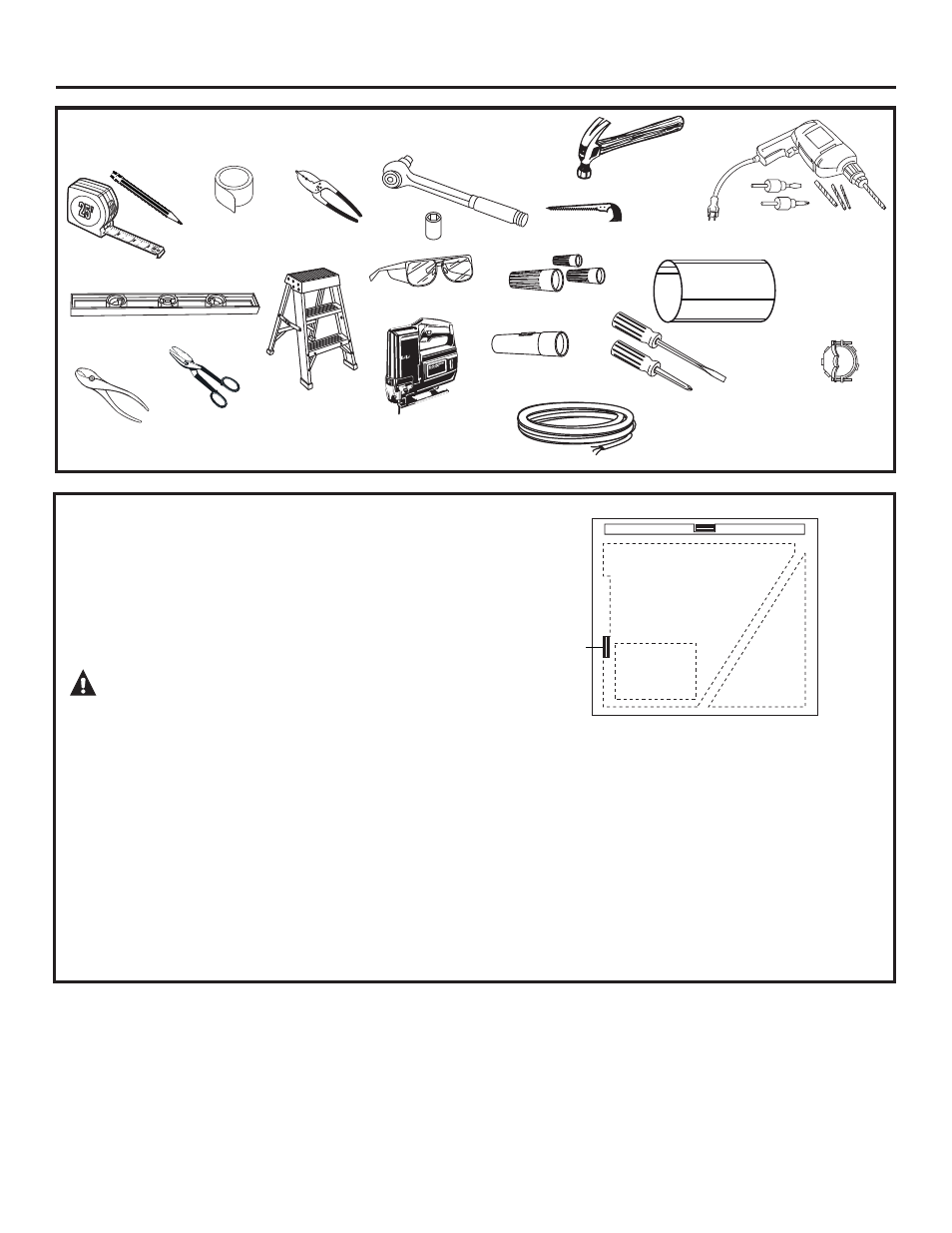

TOOLS AND MATERIALS REQUIRED
(NOT SUPPLIED)
Pencil and tape measure
Pliers
Electric or battery operated
drill and 1/8", 3/8" bits
120V 60Hz. 15 or 20 Amp,
2-wire with ground. Properly
grounded branch circuit.
Key Hole Saw
Hammer
Wire cutter/
stripper
Step ladder
Metal Snips
Saber saw
or Sawsall
Wire nuts
3KLOOLSVDQGÀDW
blade screwdrivers
Strain relief for
junction cover.
Spirit level
Flashlight
Safety glasses
10" round
metal duct,
length to
suit installation.
Duct tape
Wood
Mounting
Support
Motor
Hood
Parts
Package
Shipping Carton
