4
49-80151-8
Installation Instructions

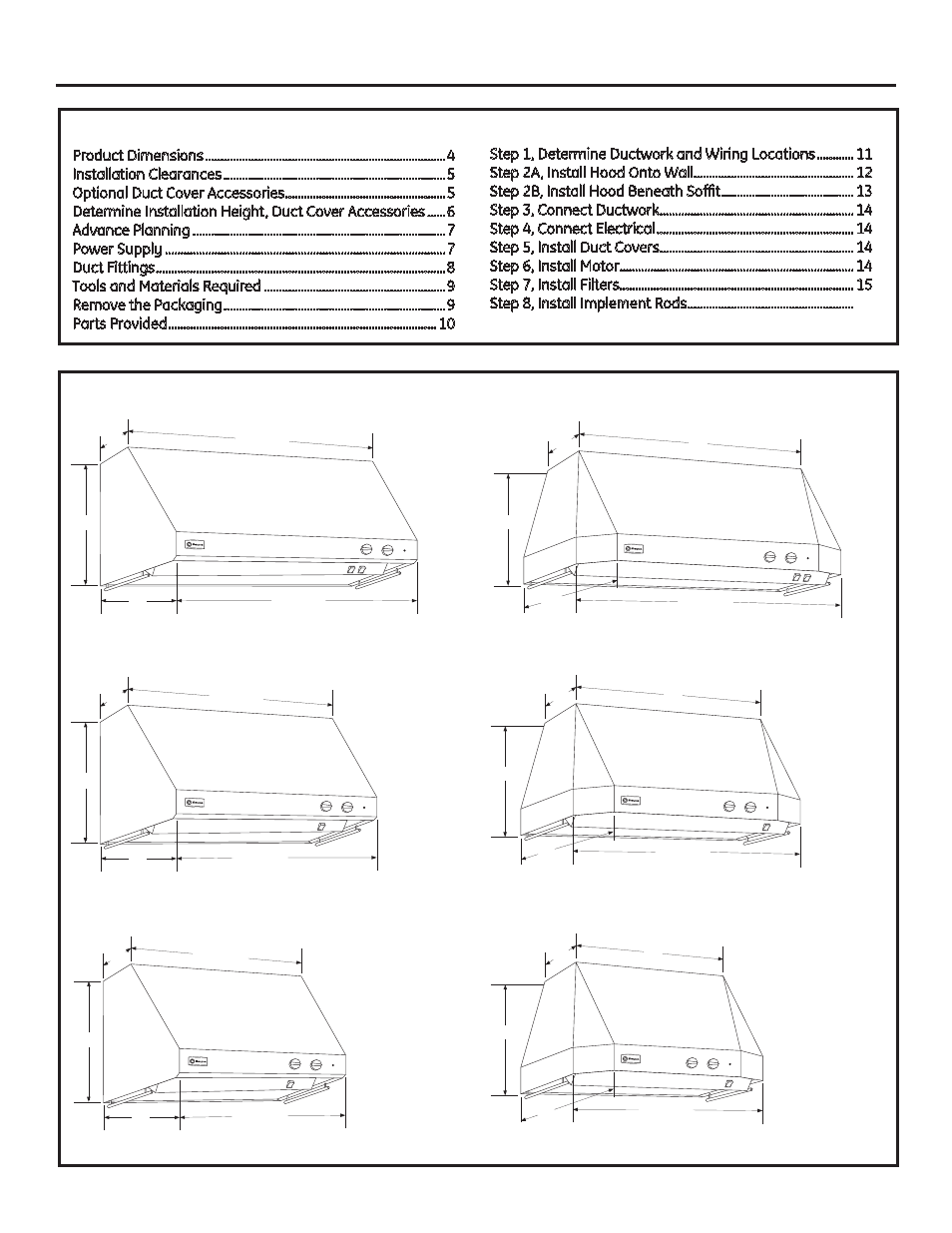

PRODUCT DIMENSIONS
Model ZV48S With Straight Sides
Model ZV36S With Straight Sides
Model ZV30S With Straight Sides
Model ZV48T With Tapered Sides
Model ZV36T With Tapered Sides
Model ZV30T With Tapered Sides
CONTENTS
Product Dimensions .............................................................................. 4
Installation Clearances ........................................................................5
Optional Duct Cover Accessories ....................................................5
Determine Installation Height, Duct Cover Accessories ......6
Advance Planning .................................................................................. 7
Power Supply ........................................................................................... 7
Duct Fittings .............................................................................................. 8
Tools and Materials Required ...........................................................9
Remove the Packaging ........................................................................9
Parts Provided ....................................................................................... 10 Step 1, Determine Ductwork and Wiring Locations ............ 11
Step 2A, Install Hood Onto Wall .................................................... 12
6WHS%,QVWDOO+RRG%HQHDWK6RI¿W ........................................... 13
Step 3, Connect Ductwork ............................................................... 14
Step 4, Connect Electrical ................................................................ 14
Step 5, Install Duct Covers ............................................................... 14
Step 6, Install Motor ............................................................................ 14
Step 7, Install Filters ............................................................................ 15
Step 8, Install Implement Rods ...................................................... 15
18"
47-15/16"
47-15/16" 12"
25"
18"
35-15/16"
35-15/16" 12"
25"
18"
29-15/16"
29-15/16" 12"
25"
18"
28"
25" 35-15/16"
12"
18"
22"
25" 29-15/16"
12"
18"
40"
25" 47-15/16"
12"
