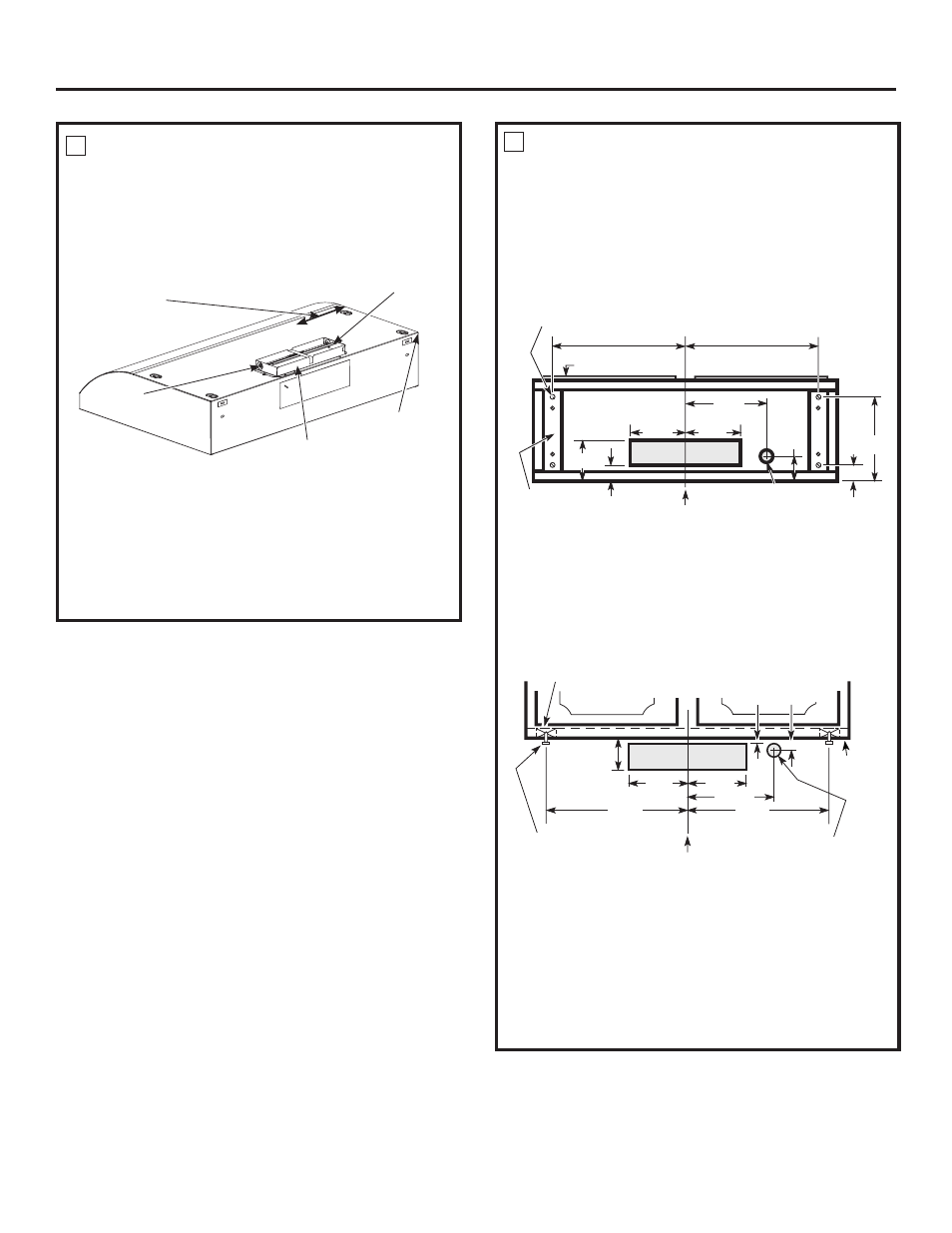

MARK HOLES
Select the vent option that your installation will require
and proceed to that section:
Hood mounting screws (4)
13¾” 13¾”
Cabinet front
Center
line
Electrical access
hole (in cabinet
bottom)
Wood shims
(recessed-bottom
cabinets only)
Vertical duct
access hole
9¼”
14 ⁄
16
”
1¼”
7¾”
3 11 /
16
”
11/16”
A. Outside top exhaust
(Vertical duct–3 1 ⁄
4
” x 10 ” Rectangular)
• Use the diagram or the hood as a template and mark
the locations on the cabinet for ductwork, electrical
wiring and keyhole screw slots .
Cabinet Bottom
7
Wood shims (recessed-bottom cabinets only)
Cabinet front
Center line
Electrical
access hole
(in wall)
Hood mounting
screws (4)
Horizontal duct
access hole Cabinet
bottom
13¾”
1¼” ½”
3½”
5 1 ⁄
4
” 5 1 ⁄
4
”
7¾”
13¾”
B. Outside rear exhaust
(Horizontal duct–3 1 ⁄
4
” x 10 ” Rectangular)
• Use the diagram or the hood as a template and mark
the locations on the cabinet for ductwork, electrical
wiring and keyhole screw slots .
C. Recirculating (non-vented ductless)
• Use the hood as a template and mark the locations
on the cabinet for the electrical wiring and keyhole
screw slots .
• Since the hood is to be recirculated (not to be vented
outside), do not cut out any vent openings in the wall
or cabinet bottom .
FOR 3 1 ⁄
4
” x 10” RECTANGLE DUCTED
DISCHARGE INSTALLATIONS:
Attach exhaust adaptor/damper over knockout
opening with two exhaust adaptor screws . Make sure
damper pivot is nearest to top/back edge of hood .
Remove tape from damper flap .
Up to 1” side-to-
side adjustment
Tape
Top/back edge
Exhaust adaptor/damper
(vertical discharge position
shown)
Pivot
6
Installation Instructions
NOTE: The exhaust adaptor/damper can be installed
up to 1 inch on either side of the hood center to
accommodate off-center ductwork . In extreme off-center
installations, one end of the duct connector may need to
be trimmed to clear the electrical cable clamp .
5 1 ⁄
4
” 5 1 ⁄
4
”
