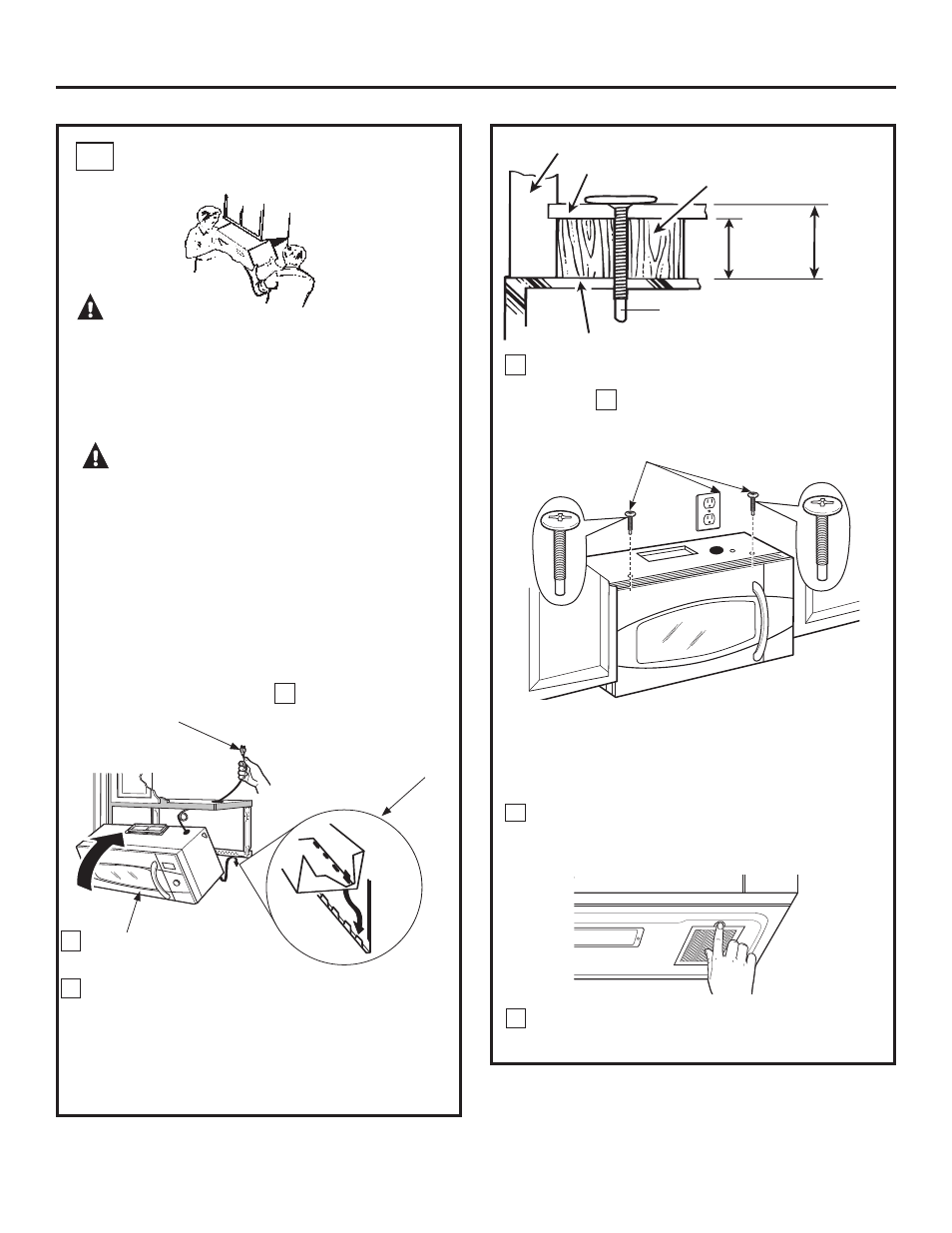

Attach the oven to the top cabinet.
18
Installation Instructions
MOUNT THE OVEN B5
7
5
Cabinet Front
6 Tighten the outer two screws to the top of the
oven. (While tightening screws, hold the oven
in place against the wall and the top cabinet.)
Insert 2 self-aligning screws
( 1 ø 4 s-28 x ȓs) through outer
top cabinet holes. Turn two full
turns on each screw.
Install grease filters. See the Owner’s Manual
packed with the oven.
4
CAUTION:
7RDYRLGWKHULVNRISHUVRQDO
LQMXU\EDFNLQMXU\RURWKHULQMXULHVGXHWRH[FHVVLYH
ZHLJKWRIWKHPLFURZDYHRUSURSHUW\GDPDJH\RX
ZLOOQHHGWZRSHRSOHWRLQVWDOOWKLVPLFURZDYH
IMPORTANT: Do not grip or use handle during
installation.
WARNING:
5LVNRI(OHFWULF6KRFN
&DQFDXVHLQMXU\RUGHDWK,ILQVWDOOLQJXQLW
ZLWKPHWDOFRXQWHUWRSVFRYHUWKHHGJHRIWKH
power supply cord hole with the power supply cord
EXVKLQJ
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later.)
NOTE: When mounting
the microwave, thread
power cord through hole
in bottom of top cabinet.
Keep it tight throughout
Steps 1–3. Do not pinch
cord or lift oven by pulling
cord.
Lift microwave, tilt it
forward, and hook slots
at back bottom edge
onto four lower tabs of
mounting plate.
1
Rotate front of oven up
against cabinet bottom.
2
3
Cabinet Bottom Shelf
Filler Block
Oven Top
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
This distance
can NOT
exceed 2”
to ensure
proper
installation
