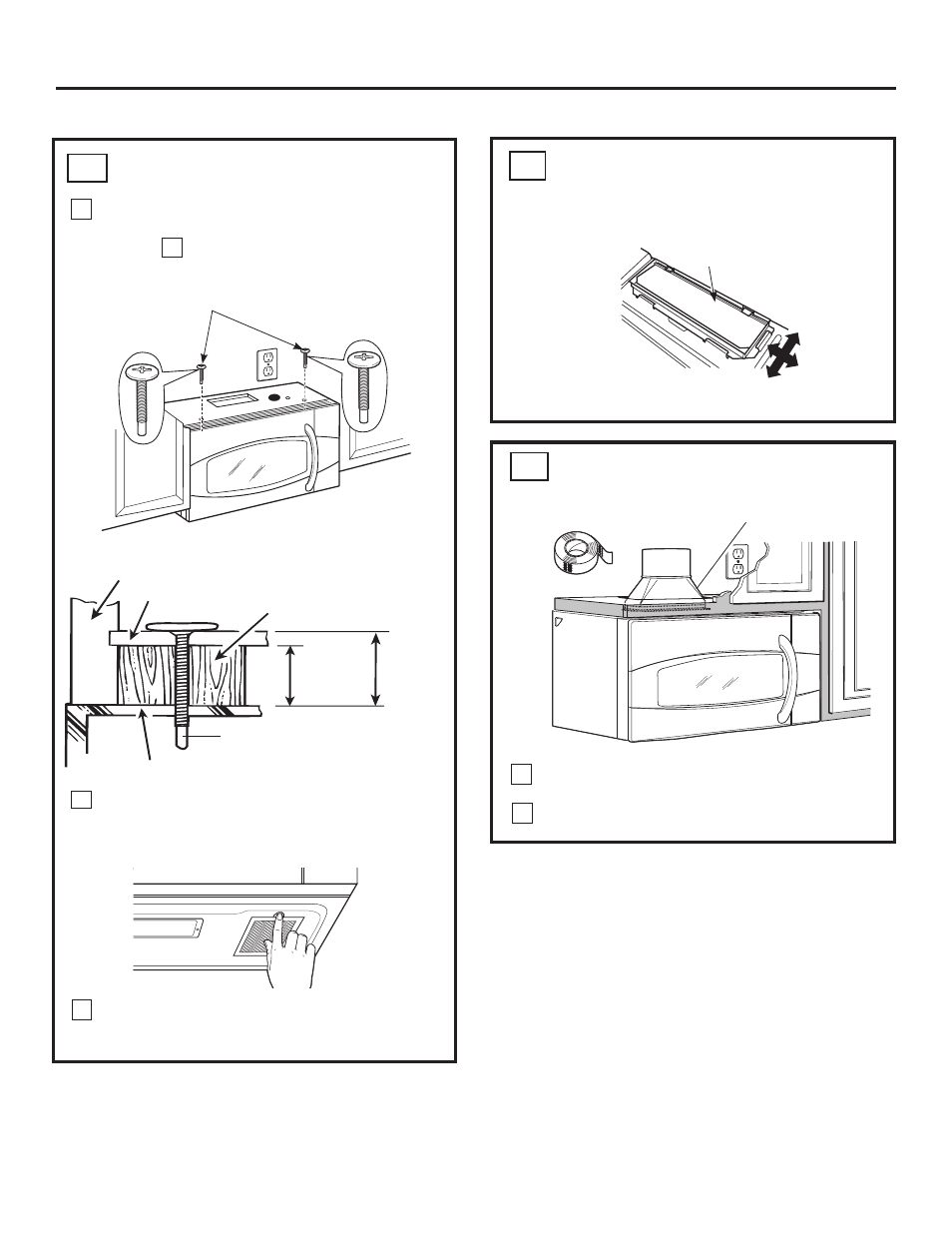

CONNECTING DUCTWORK
14
3 Attach the oven to the top cabinet.
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Oven Top
Equivalent
to Depth
of Cabinet
Recess
Insert 2 self-aligning screws
(
1
ø
4
s-28 x
ȓ
s
) through outer
top cabinet holes. Turn two full
turns on each screw.
Tighten the outer two screws to the top of the oven.
(While tightening screws, hold the oven in place
against the wall and the top cabinet.)
6
5
Install grease filters. See the Owner’s Manual
packed with the oven.
Installation Instructions
$'-8677+((;+$867$'$3725
A5
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Back of Oven
Damper
1
2
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
House Duct
Self-Aligning Screw
4
MOUNT THE OVEN
FRQWLQXHG
A4
A6
This distance
can NOT
exceed 2”
to ensure
proper
installation
