BEFORE: Fan Blade
2SHQLQJV)DFLQJ8S
4
3
2

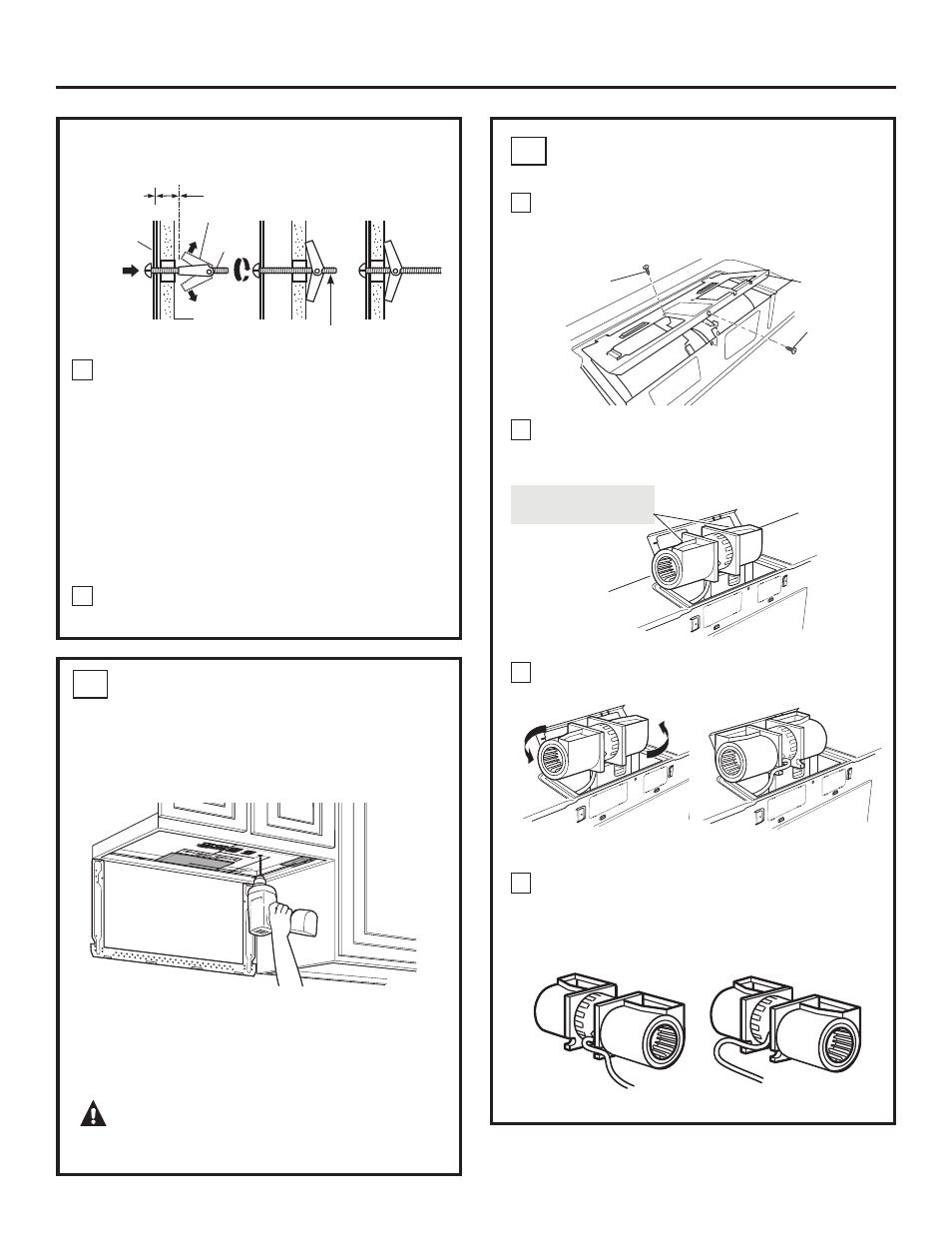

1 Remove the blower motor screw that holds the
blower plate to the oven. Lift the front of the blower
plate to install the blower.
ADAPTING BLOWER FOR
2876,'(%$&.(;+$867 B4
End B
End A
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
Rotate blower unit counterclockwise 180°.
Before Rotation After Rotation
Gently remove the wires from the grooves.
Reroute the wires through grooves on other side
of the blower unit.
Before Rerouting After Rerouting
Wires Routed Through Right
Side
Wires Routed Through Left
Side
Blower Plate
Back of
Oven
Back of
Oven
Blower
Motor Screw
Blower
Motor Screw
16
86(723&$%,1(77(03/$7(
FOR PREPARATION OF TOP
CABINET
B3
‡ Read the instructions on the TOP CABINET
TEMPLATE.
‡ Tape it underneath the top cabinet.
‡ Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION:
:HDUVDIHW\JRJJOHVZKHQ
GULOOLQJKROHVLQWKHFDELQHWERWWRP
Wall
Mounting
Plate
Spacing for Toggles More
Than Wall Thickness
Toggle
Bolt
Toggle Wings
7RXVHWRJJOHEROWV
Bolt End
Installation Instructions
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properly centered under
the cabinet.
CAUTION:
%HFDUHIXOWRDYRLGSLQFKLQJ
ILQJHUVEHWZHHQWKHEDFNRIWKHPRXQWLQJ
plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
