Page 9

Component identification 9
Item
Description
Status
3
Power On/Standby button
and system power LED
Solid green = System on
Flashing green (1 Hz/cycle per sec) = Performing power on sequence
Solid amber = System in standby
Off = No power present**
4
UID button/LED
Solid blue = Activated
Flashing blue (1 Hz/cycle per sec) = Remote management or
firmware upgrade in progress
Off = Deactivated
* To identify components in a degraded or critical state, see the Systems Insight Display LEDs, check iLO/BIOS logs, and
reference the server troubleshooting guide.
** Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has
occurred, or the power button cable is disconnected.
Rear panel components
•

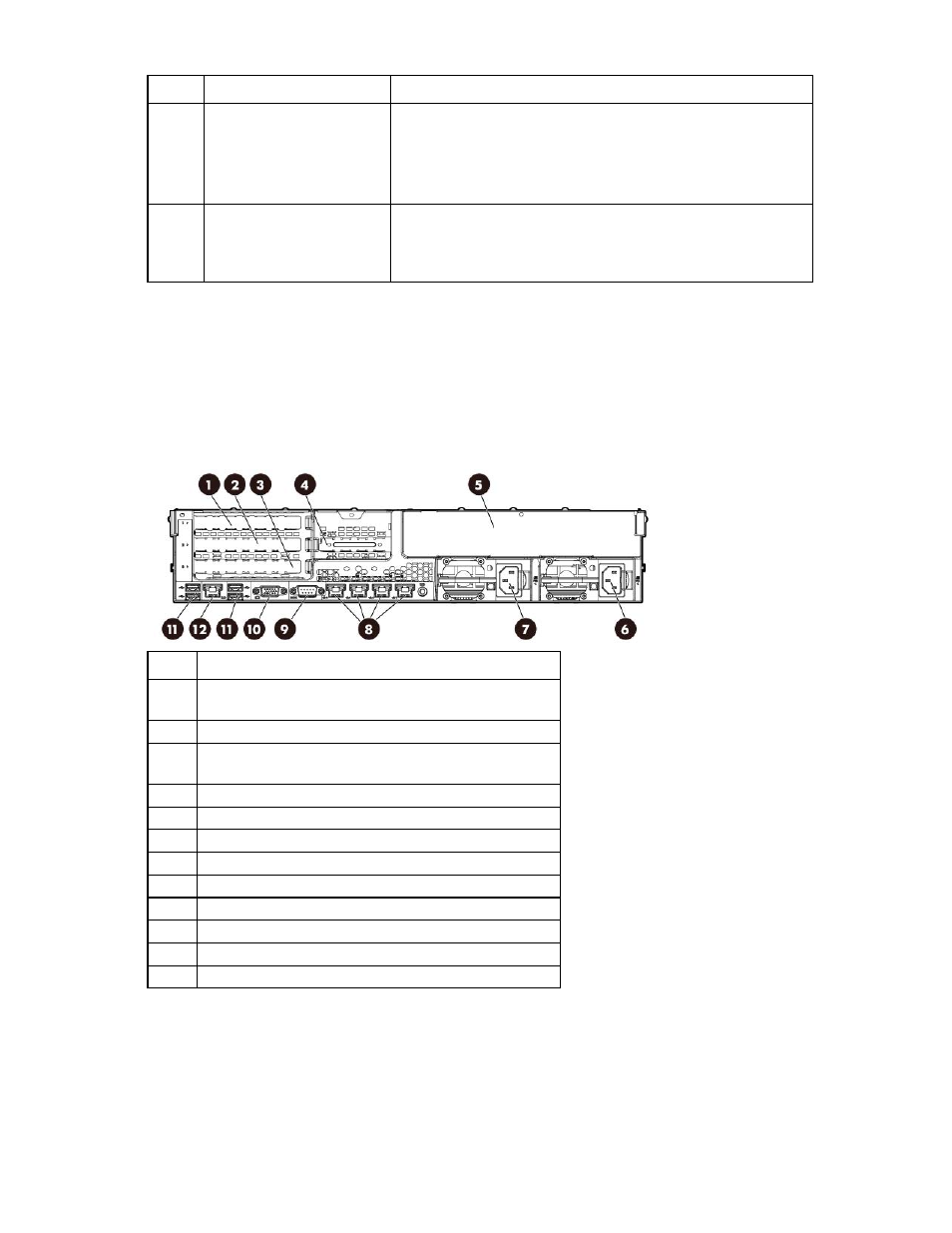

Rear panel without the secondary PCI riser cage and rear drive options
Item Description
1
Riser board without SAS support: Slot 1 PCIe3 x8 (4, 1)*
Riser board with SAS support: Slot 1 PCIe3 x16 (8, 4, 1)*
2
Slot 2 PCIe3 x16 (8, 4, 1)*
3
Only for riser board without SAS support: Slot 3 PCIe3 x8
(8, 4, 1)*
4
Slot 4 PCIe2 x8 (4, 1)*
5
LFF drive blank
6
Power supply 1
7
Power supply 2 (optional)
8
NIC connectors (4-1)
9
Serial connector
10
Video connector
11
USB 2.0 connectors
12
iLO 4 connector
