Operations 24

c.

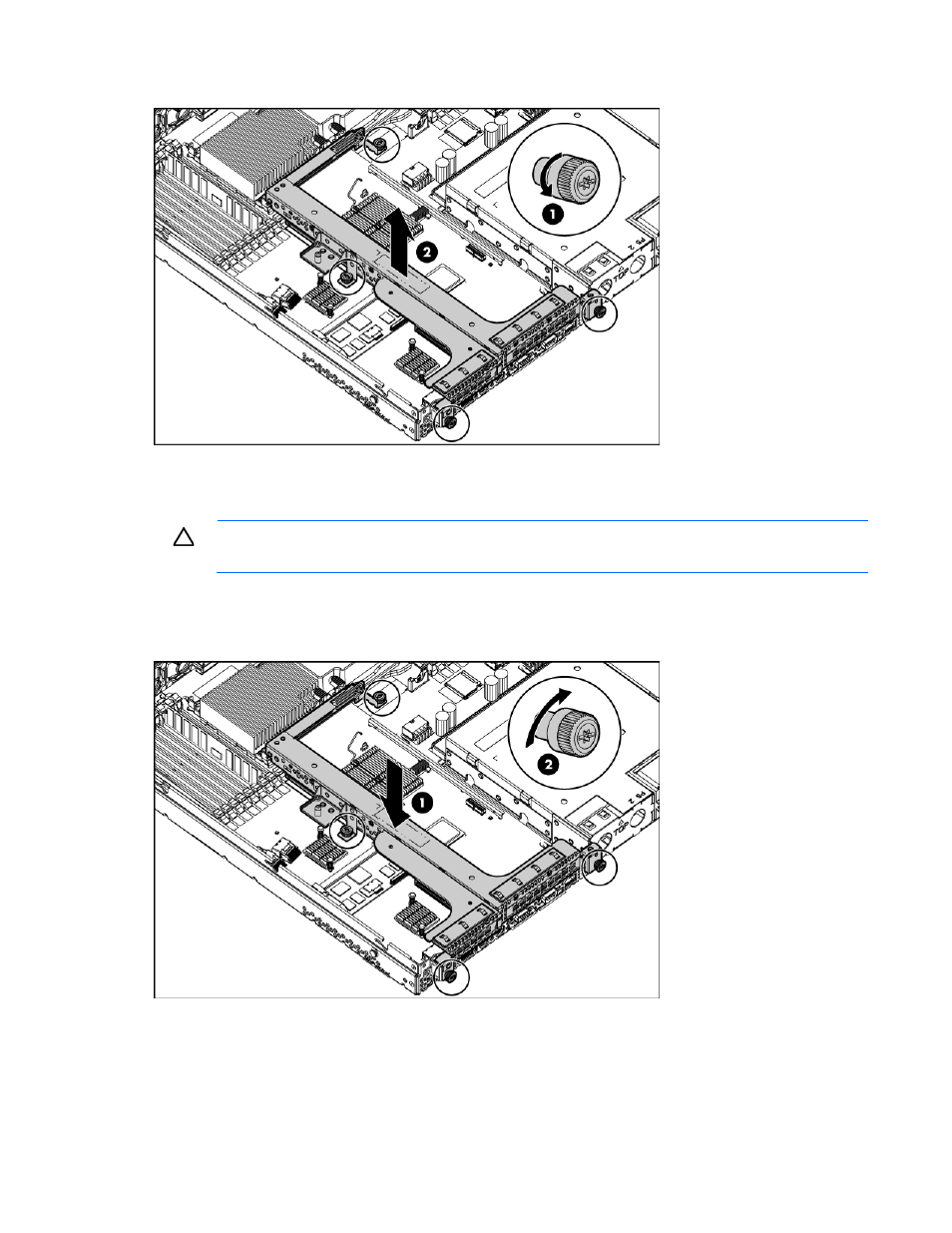

Lift the assembly to unseat the PCI riser boards, and then remove the assembly.

Install the PCI riser board assembly

CAUTION:

To prevent damage to the server or expansion boards, power down the server and

remove all AC power cords before removing or installing the PCI riser board assembly.

1.

Align the PCI riser boards with the corresponding connectors on the system board, and then install the
assembly.

2.

Tighten the four PCI riser board assembly thumbscrews.

3.

Install the air baffle (on page

22

).

4.

Install the BBWC battery pack, if removed ("

Installing the BBWC battery pack

" on page

57

).

5.

Install the access panel (on page

21

).

6.

Slide the server into the rack.
