Connecting the power cord – HP Networking Switch Power Supplies User Manual
Page 8

8

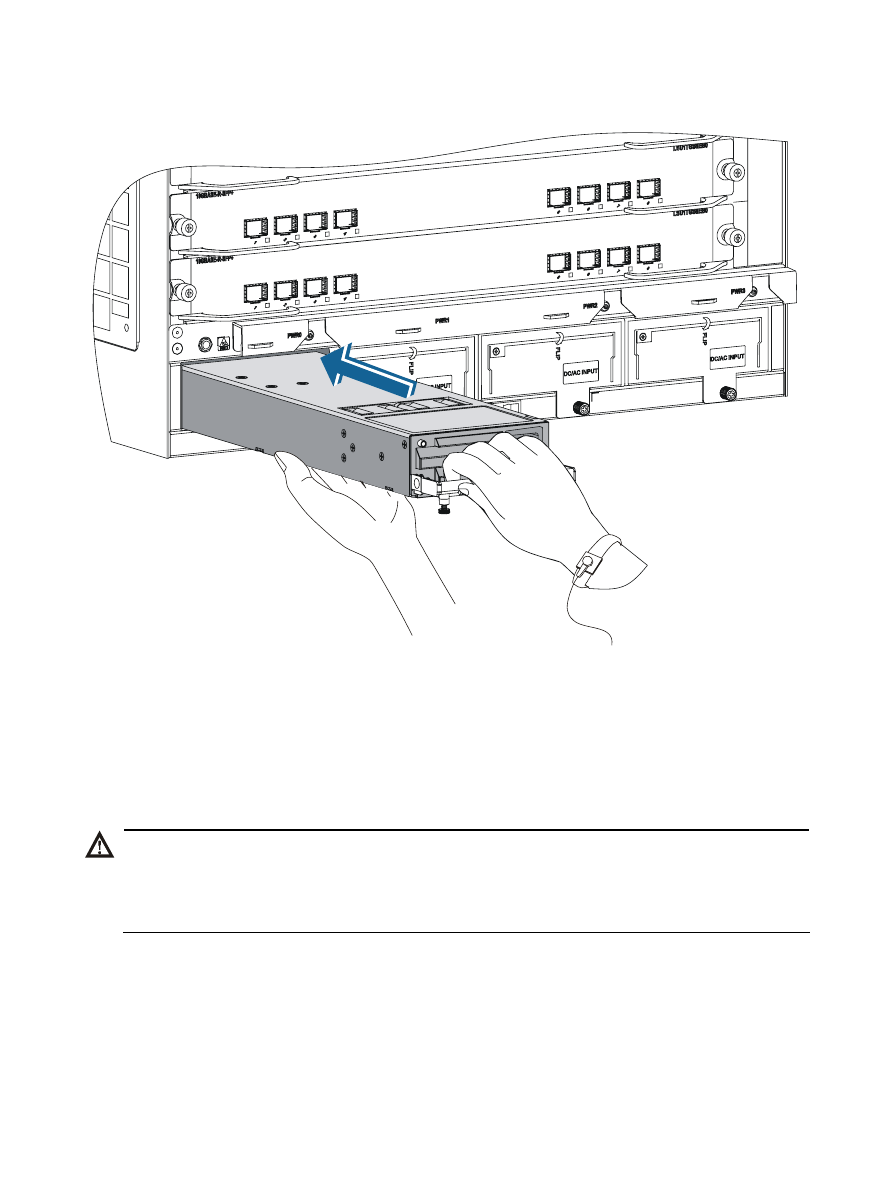

Figure 5 Install the power module into a horizontal slot
5.
Press the handle back into the notch of the power module.
6.
Use the Phillips screwdriver to fasten the captive screw on the handle to fix the
power module.
Connecting the power cord
WARNING!
•
Make sure that each power cord has a separate circuit breaker.
•
Turn off the circuit breaker before connecting the power cord.
Follow these steps to connect the power cord:
1.
Plug the AC power cord connector into the receptacle of the power module.
2.
Route the power cord along the cabling rack, and fasten the power cord by using
cable ties.
