HP Networking Switch Power Supplies User Manual
Page 6

6

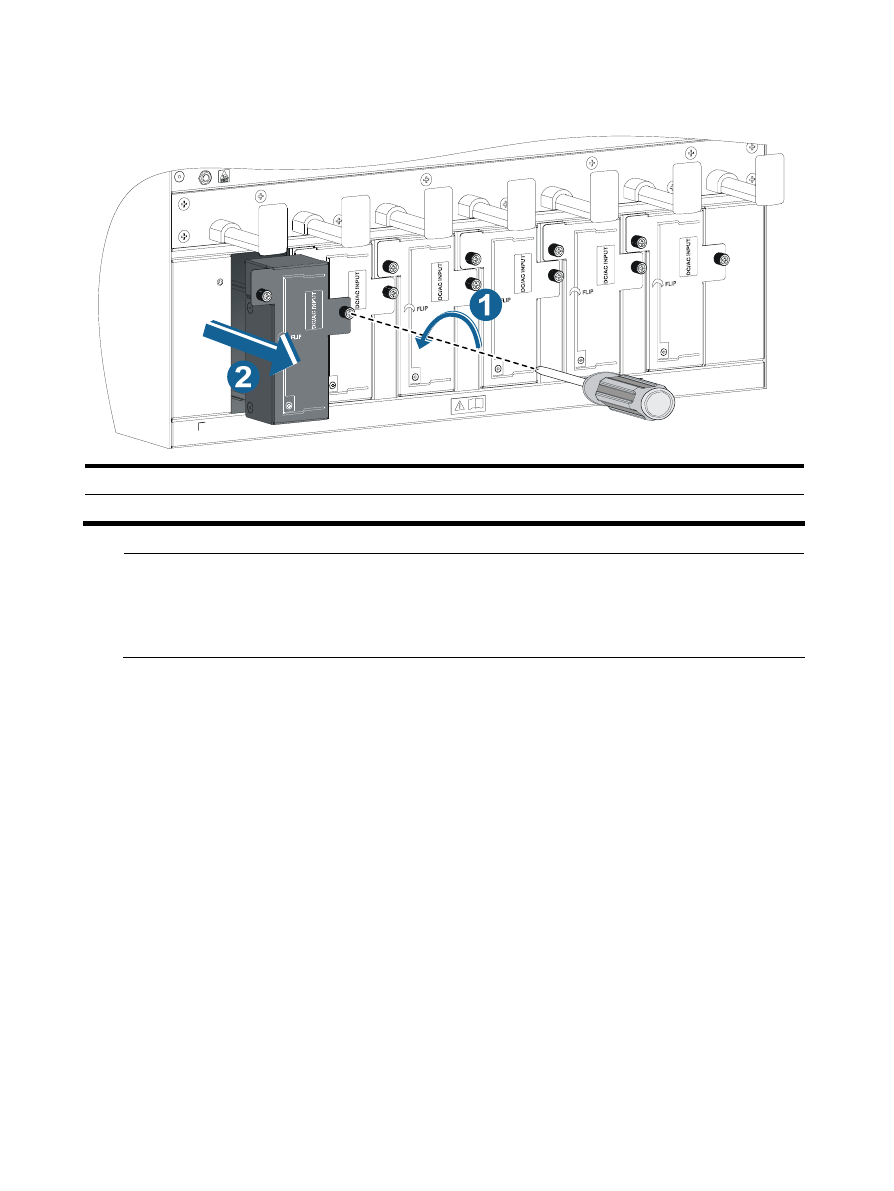

Figure 3 Remove the blank panel
(1) Unfasten the captive screws on the blank panel
(2) Remove the blank panel
NOTE:
A power module can be vertically or horizontally installed according to the power
module slot, but the installation methods are similar. This document takes the vertical
installation method as an example, and gives different diagrams for key steps.
3.
Take the power module out of the package.
4.
The blank panel is printed with a diagram of correct installation direction. You can
follow the instruction to install the power module. As shown in
(vertical
installation) and
(horizontal installation), be sure of the correct direction of
the power module. Holding the handle of the power module with one hand and
supporting the bottom of the power module with the other, slide the power module
along the guide rails into the slot.
