Rear panel components – HP 50 Modular Smart Array User Manual
Page 8
8
HP StorageWorks Modular Smart Array 50 Storage Enclosure User Guide
Item Description
Status
2
Fault LED
Off = No fault condition
Amber = Fault condition
3
Heartbeat LED
Green = System activity
Off = No system activity
4 Power
On/Standby
button/LED
Green = On
Amber = Standby (auxiliary
power present)
Off = Off

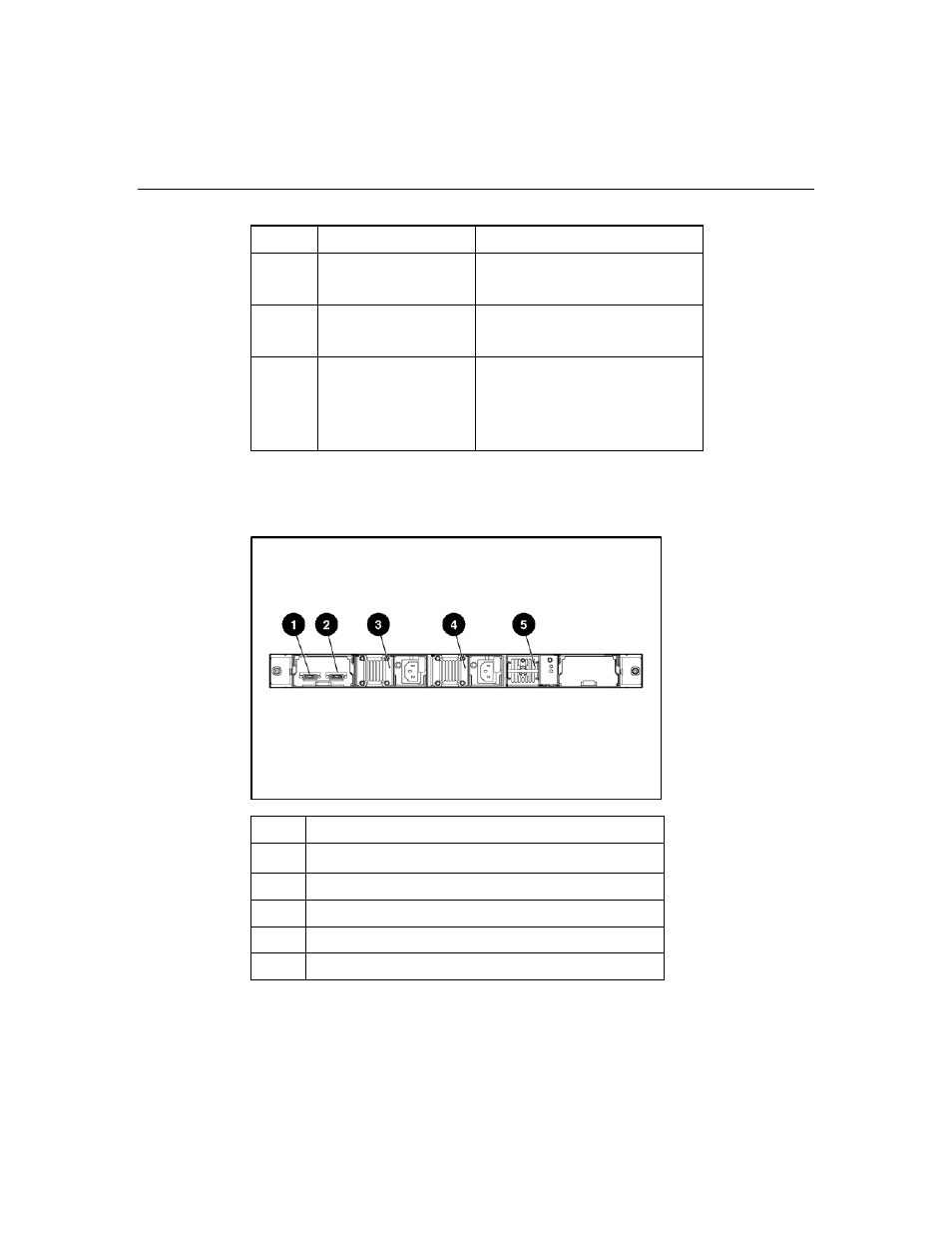

Rear panel components
Item Description
1
SAS In connector
2
SAS Out connector
3 Power
supply
1
4
Power supply 2
5 System
fan
