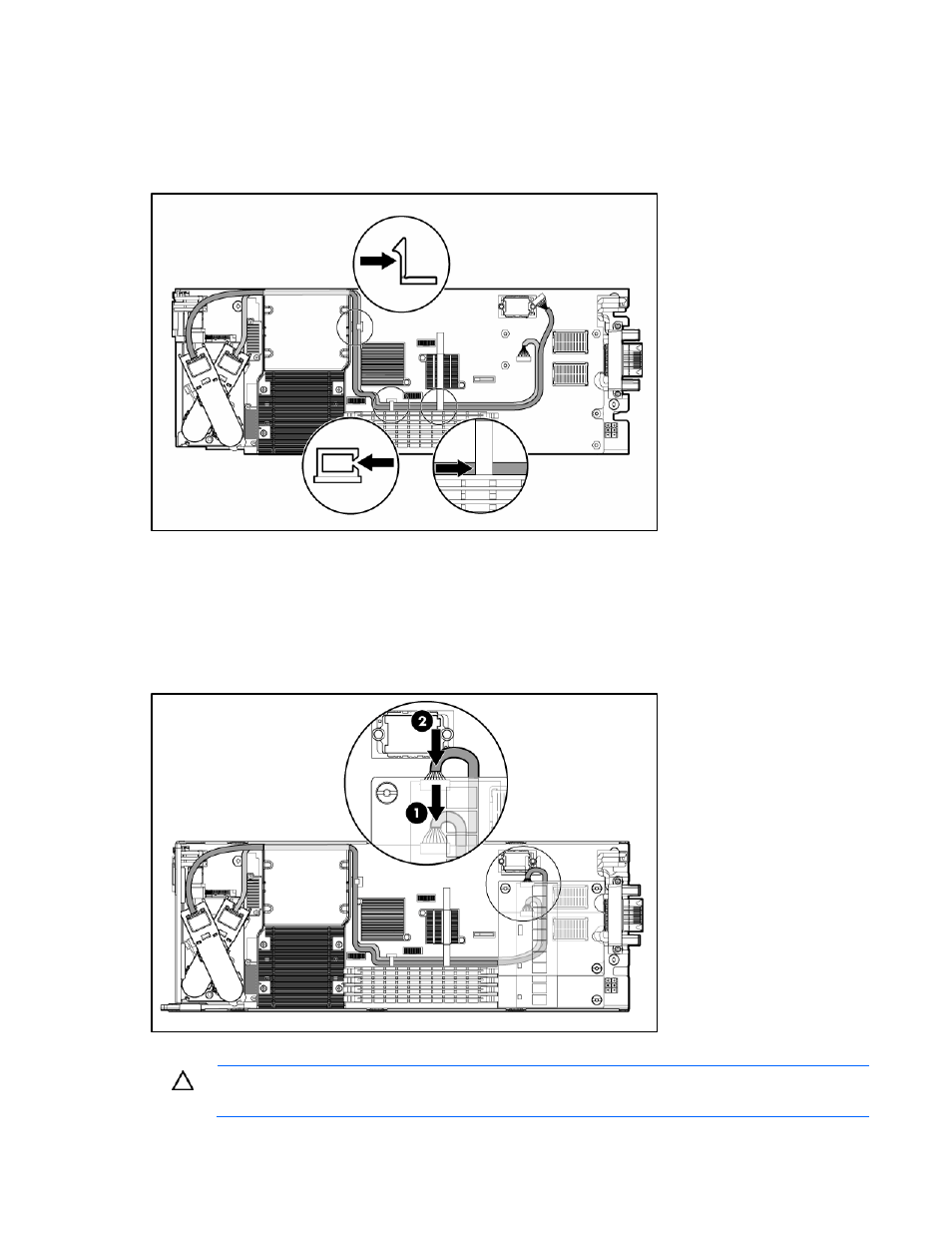

13. Route the battery cable attached to the lower battery through the clip near the DIMM slots, through
the baffle and into the space between the mezzanine card mounting posts and the mezzanine
connectors.
14. Route the battery cable connected to the upper battery through the clip near the DIMM slots, through
the baffle and into the space near the signal connector.
15. Install the lower mezzanine card. The cables must lie flat between the mezzanine card and the
system board.
For more information, see the installation instructions that ship with the mezzanine cards.
16. Connect the cable from the lower battery to the lower cache module.
17. Install the upper mezzanine card.
18. Connect the cable from the upper battery to the upper cache module.
19. Position any excess cable between the mezzanine card and the system board.
CAUTION: To prevent battery cable and system board damage, always install the cable
shield.
