Hardware options installation 25
Optional mezzanine cards enable network connectivity, provide Fibre Channel support, and provide hard
drive caching support. For mezzanine card locations, see the system board components (on page
8 ).
For mezzanine card signal mapping, see "Interconnect bay numbering and device mapping (on page
18 )" and the HP ProLiant BL2x220c Generation 5 Server Blade Installation Instructions that ship with the
server blade.
To install the component:
1. Power down the server blade (on page 13 ).
2. Remove the server blade (on page 14 ).
3. Access the internal server components (on page 14 ).

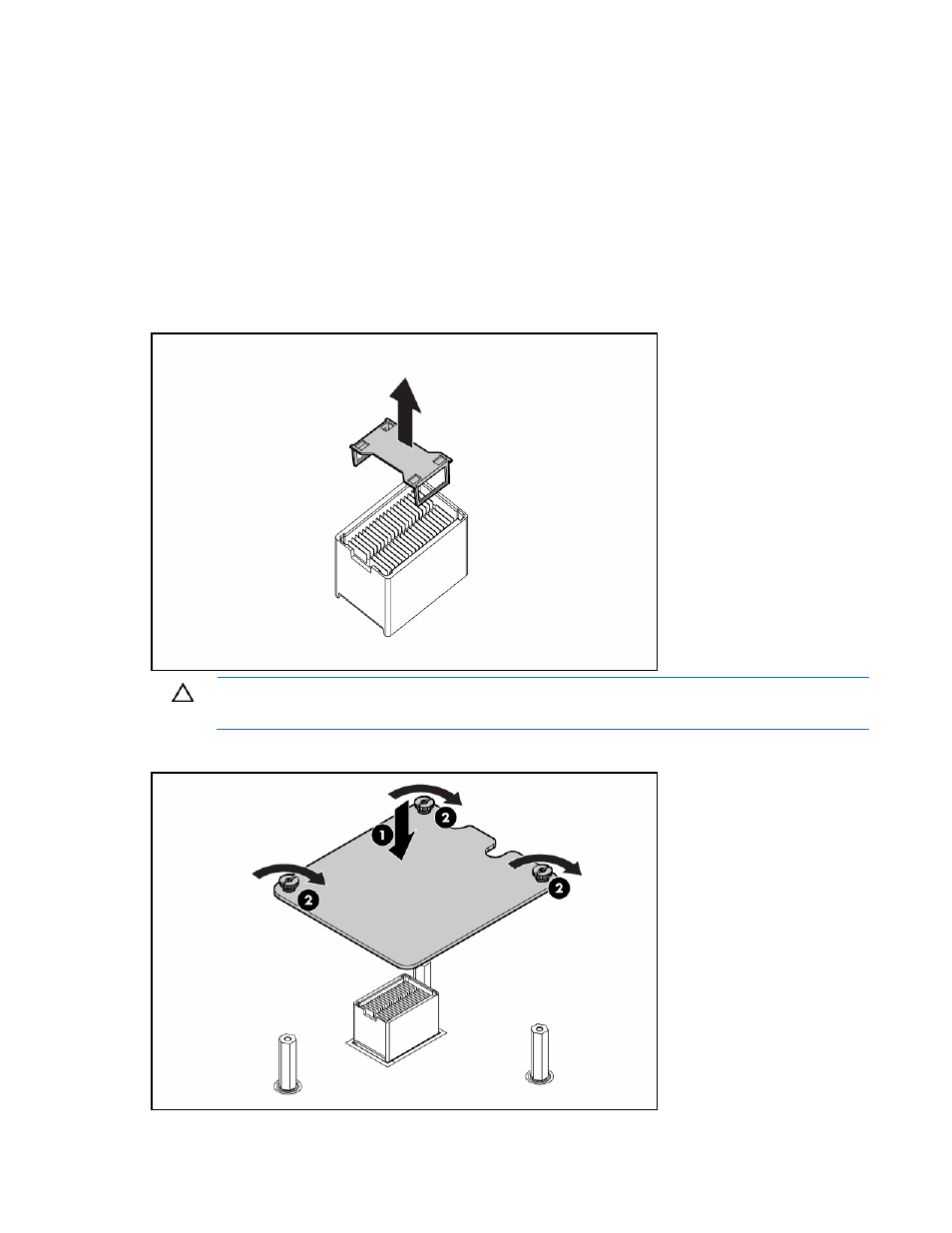

4. Remove the mezzanine connector cover.
CAUTION: To prevent damage to the server blade, apply pressure over the mezzanine
connector when installing the mezzanine card. Do not apply pressure to the edges of the card.
5. Install the mezzanine card. Press down on the connector to seat the card.
