Cartridge Information

SL500 (M852x) Tape Library Installation and User’s Guide 541531-002

4 -5

Valid Labels

Perform these steps before applying the label into the recessed area on the cartridge:

1. Make sure the cartridge has been at room temperature for at least 24 hours.

2. Clean the surface where the labels will be placed using a cleaning solution made

for this purpose.

3. Locate the type of label that you require.

4. Hold the cartridge so that the write-protect switch is toward you.

5. Attach the label to the cartridge as shown in

Figure 4-3

.

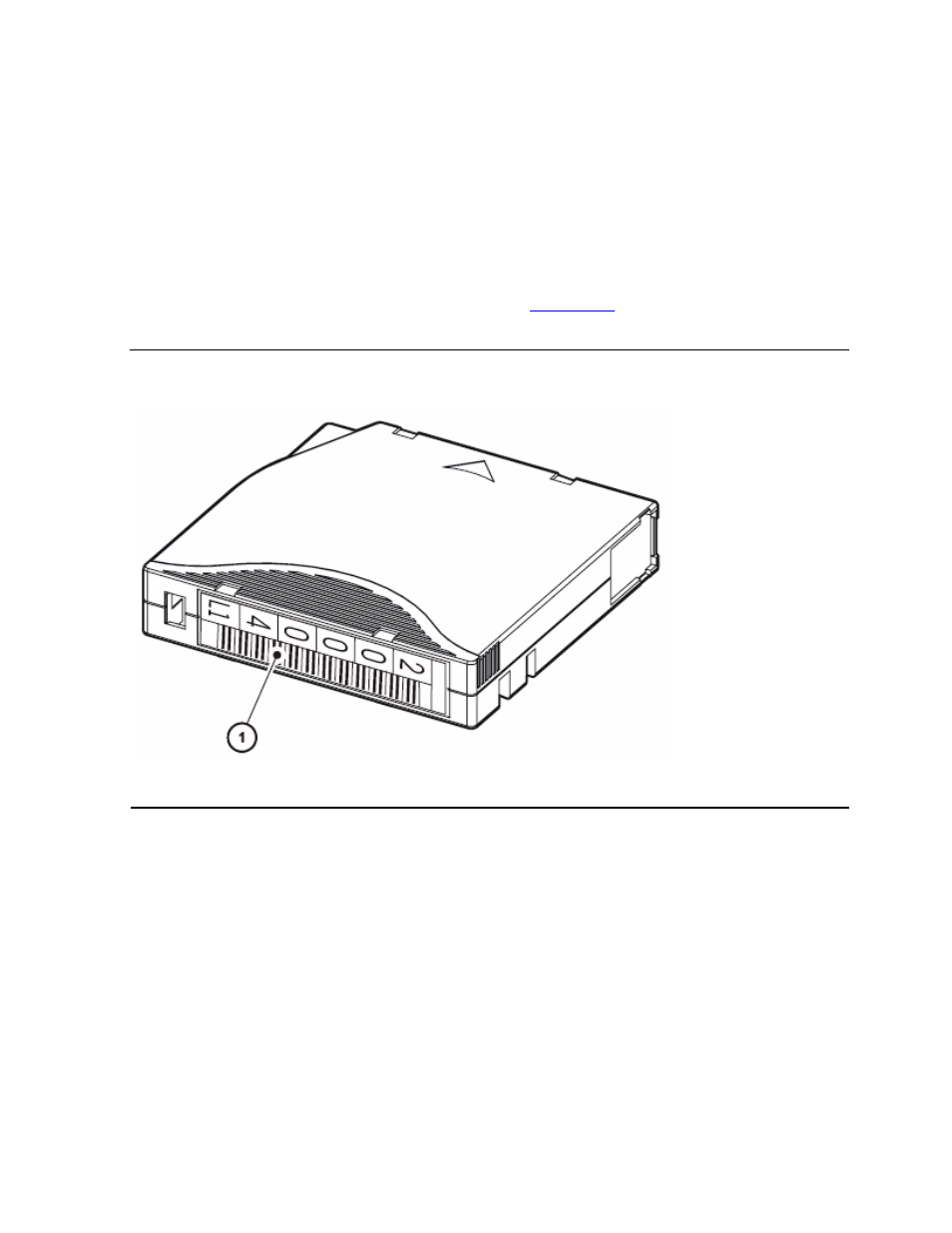

Figure 4-3. Ultrium Cartridge Label

1. Volume number label
