HP ProLiant DL785 G6 Server User Manual
Page 17

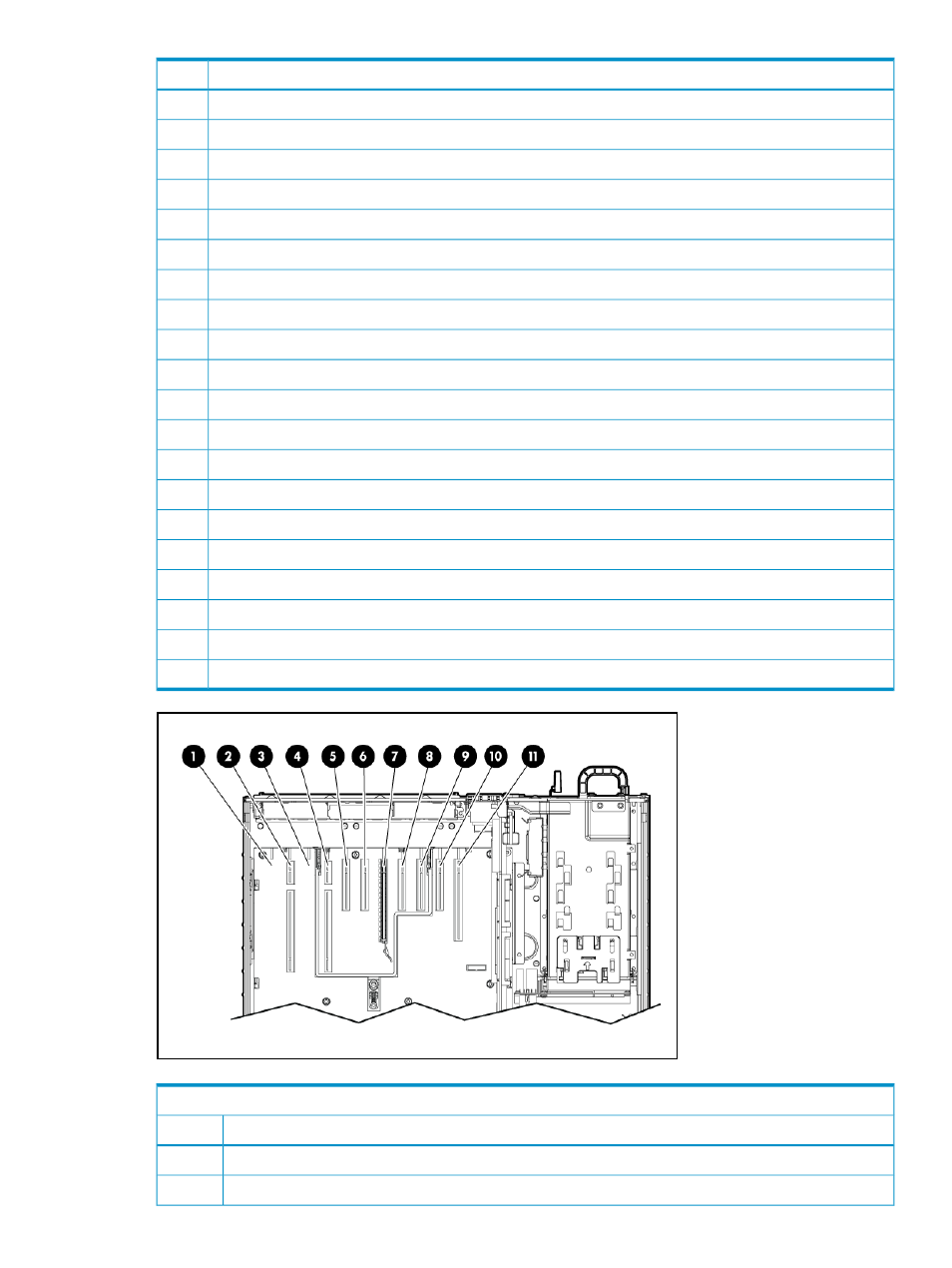

Description
Item
Fan 1
4
System maintenance switch SW6
5
System maintenance switch SW1
6
SPI Board
7
PCI Express x8 non-hot-plug expansion slot 11
8
PCI Express x16 non-hot-plug expansion slot 10
9
PCI Express x8 non-hot-plug expansion slot 9
10
PCI Express x16 non-hot-plug expansion slot 8
11
PCI Express x4 non-hot-plug expansion slot 7
12
PCI Express x4 non-hot-plug expansion slot 6
13
PCI Express x16 non-hot-plug expansion slot 5
14
PCI Express x4 non-hot-plug expansion slot 4
15
PCI Express x4 non-hot-plug expansion slot 3
16
PCI Express x4 non-hot-plug expansion slot 2
17
PCI Express x8 non-hot-plug expansion slot 1
18
BBWC battery pack
19
Power supply backplane
20
BBWC battery pack (optional)
21
SAS backplane (optional)
22
SAS backplane
23
Combo PCIe/HTx I/O backplane
Description
Item
Blank slot
1
HyperTransport non-hot-plug expansion slot 9
2
Internal components
17
