Using the HAFM application 28
Viewing the HAFM main window
Figure 4 shows the View All display of the HAFM main window. There are nine panels in this view.
You can customize your screen view to show only the information that you need (see ”Creating a
customized view ” on page 70).
NOTE: Some panels may be hidden by default. To view all panels, select View > All Panels,
or press F12.

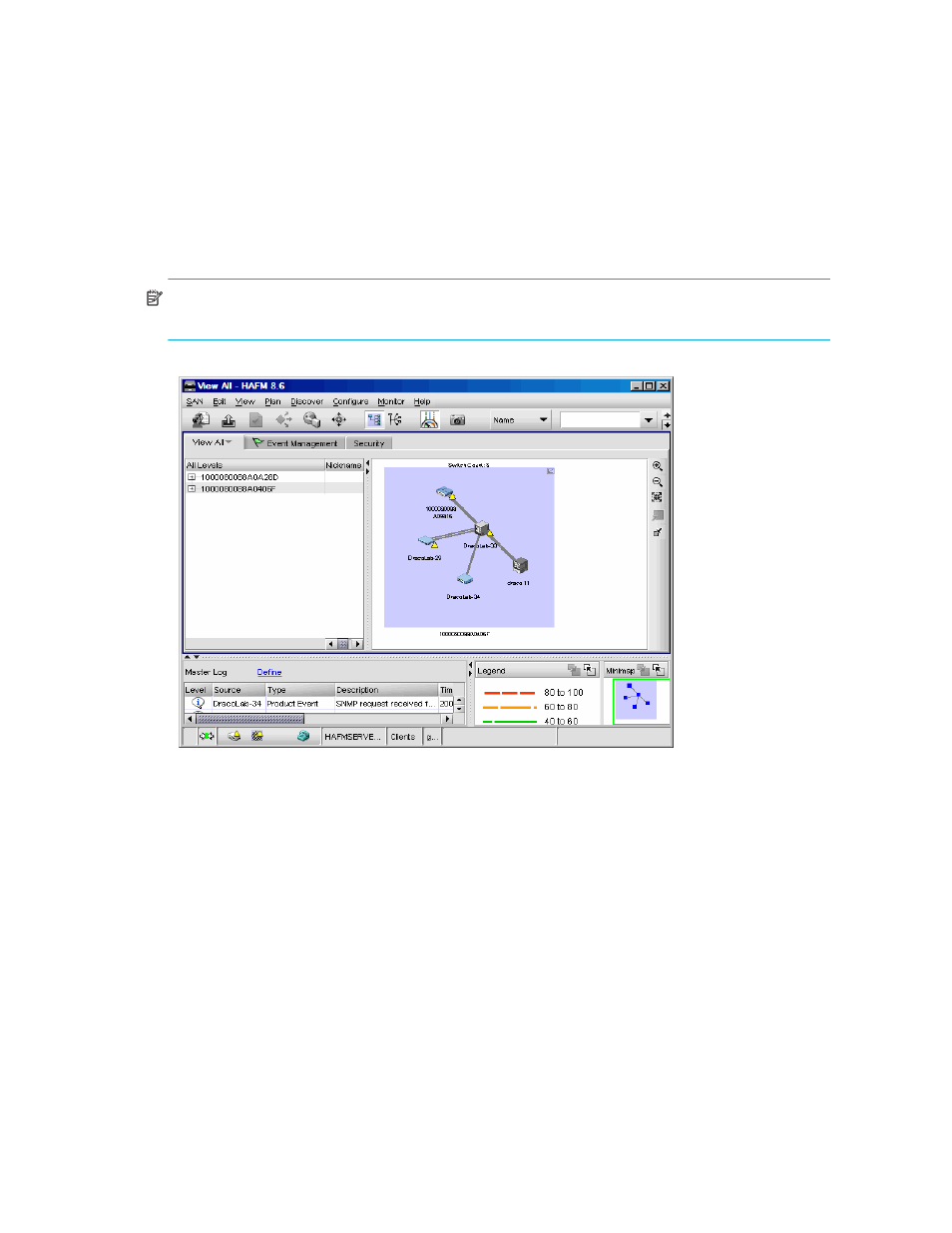

Figure 4 View All - HAFM window
HAFM main window panels
This section describes each panel of the HAFM main window.
Menu bar
The menu bar ( Figure 4 1) consists of pull-down menus that allow you to view information, and
configure and manage the application.
1 Menu bar
2 Toolbar
3 View tab
4 Product list
5 Physical/Topology map
6 Master log
7 Connection utilization legend
8 Minimap
9 Status bar
10 Toolbox
1
2
3
4
5
6
7
8
9
10
