Rear components – HP Z1 Workstation User Manual
Page 17
Rear components

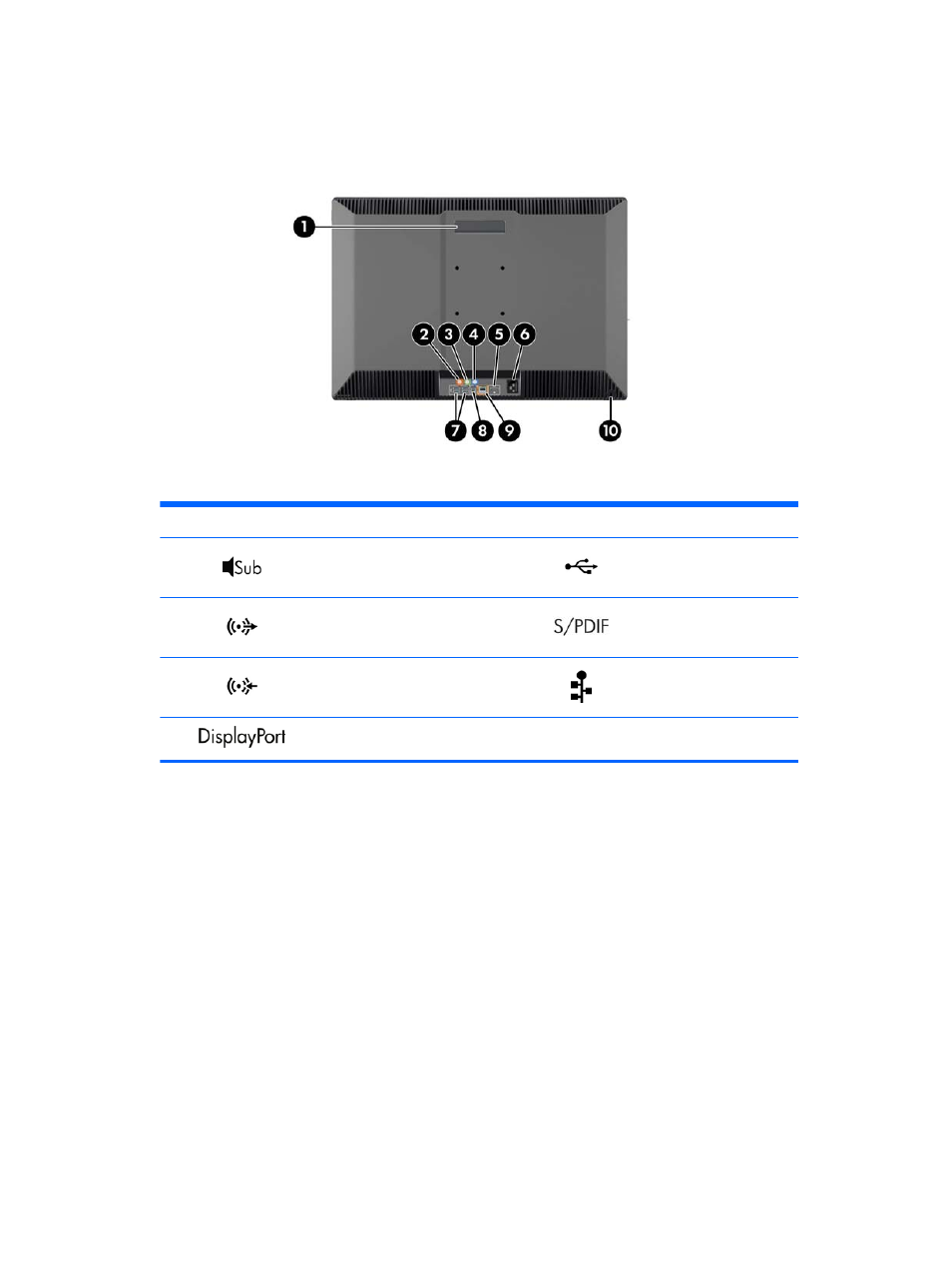

Figure 2-3
Rear components (excluding stand)
Table 2-3
Component descriptions
1
Handle
6
Power cord connector
2
Subwoofer connector (orange)
7
USB 2.0 connectors (4)
3
Audio line-out connector (green)
8
Optical S/PDIF audio output
4
Audio line-in connector (blue)
9
RJ-45 network connector
5
DisplayPort connector
10
Cable
lock
slot
Components
9
