cross-link is active. The SFP+ port always has precedence over the internal cross-link port. Port X7 is
shared with internal cross-link 1, and Port X8 is shared with internal cross-link 2.
• If there is a module installed in the SFP+ port, the SFP+ port is the active port.
The LED under the SFP+ port is on.
• If there is no module installed in the SFP+ port, and the port has not been configured as an uplink in
a VC Ethernet network, then the corresponding internal cross-link is the active port.
The LED under the SFP+ port is off.
• If there is no module installed in the SFP+ port, and the port has been configured as an uplink in a
VC Ethernet network, then the SFP+ port is the active port.
The LED under the SFP+ port is on.

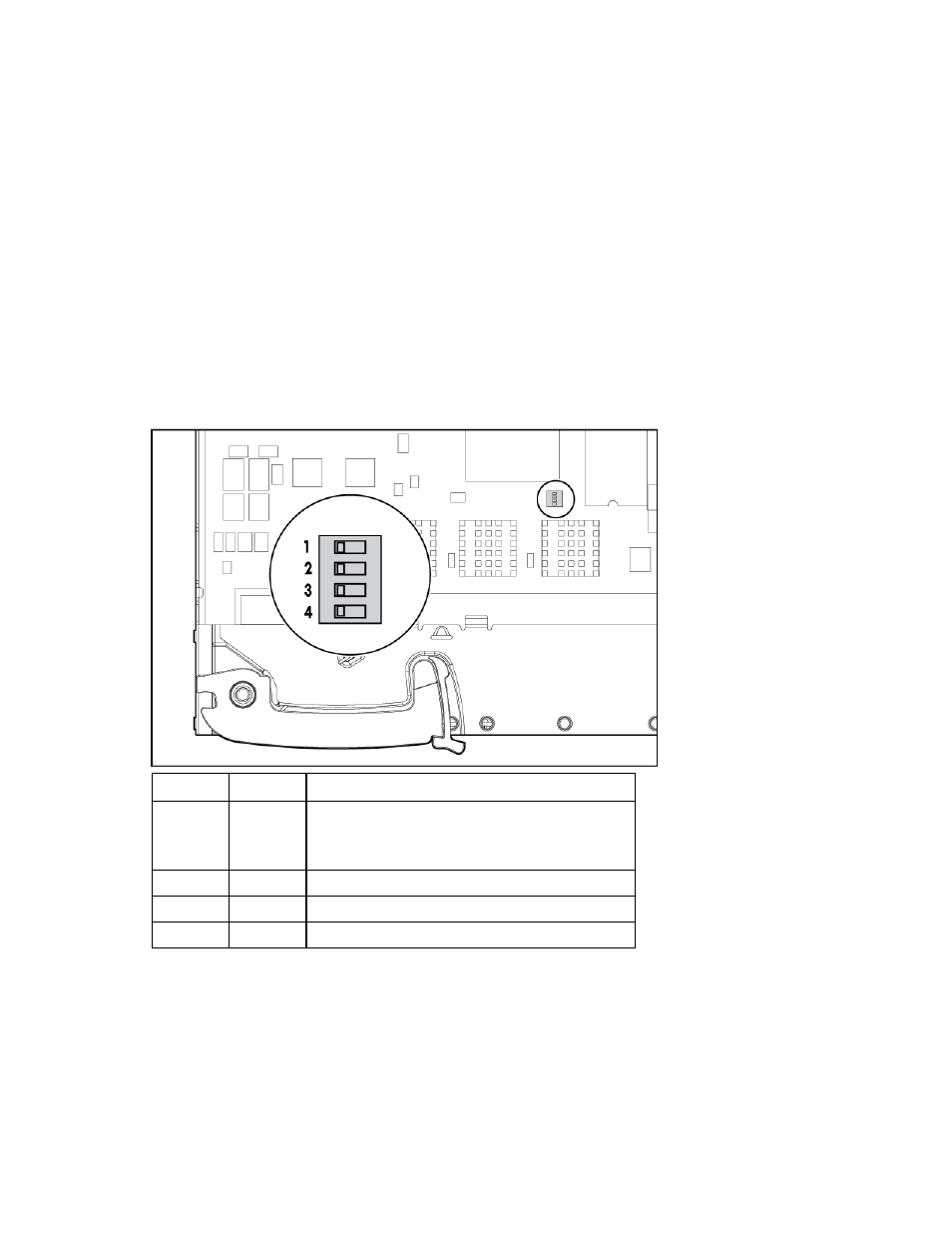

HP Virtual Connect Flex-10 10Gb Ethernet Module system
maintenance switch
Switch Default Function
1 Off Off = Normal operation
On = Restore factory default login and DNS
information*
2 Off Reserved
3 Off Reserved
4 Off Reserved
*See "Resetting the Administrator password and DNS settings (on page 28 )."
