Hardware information screens 198

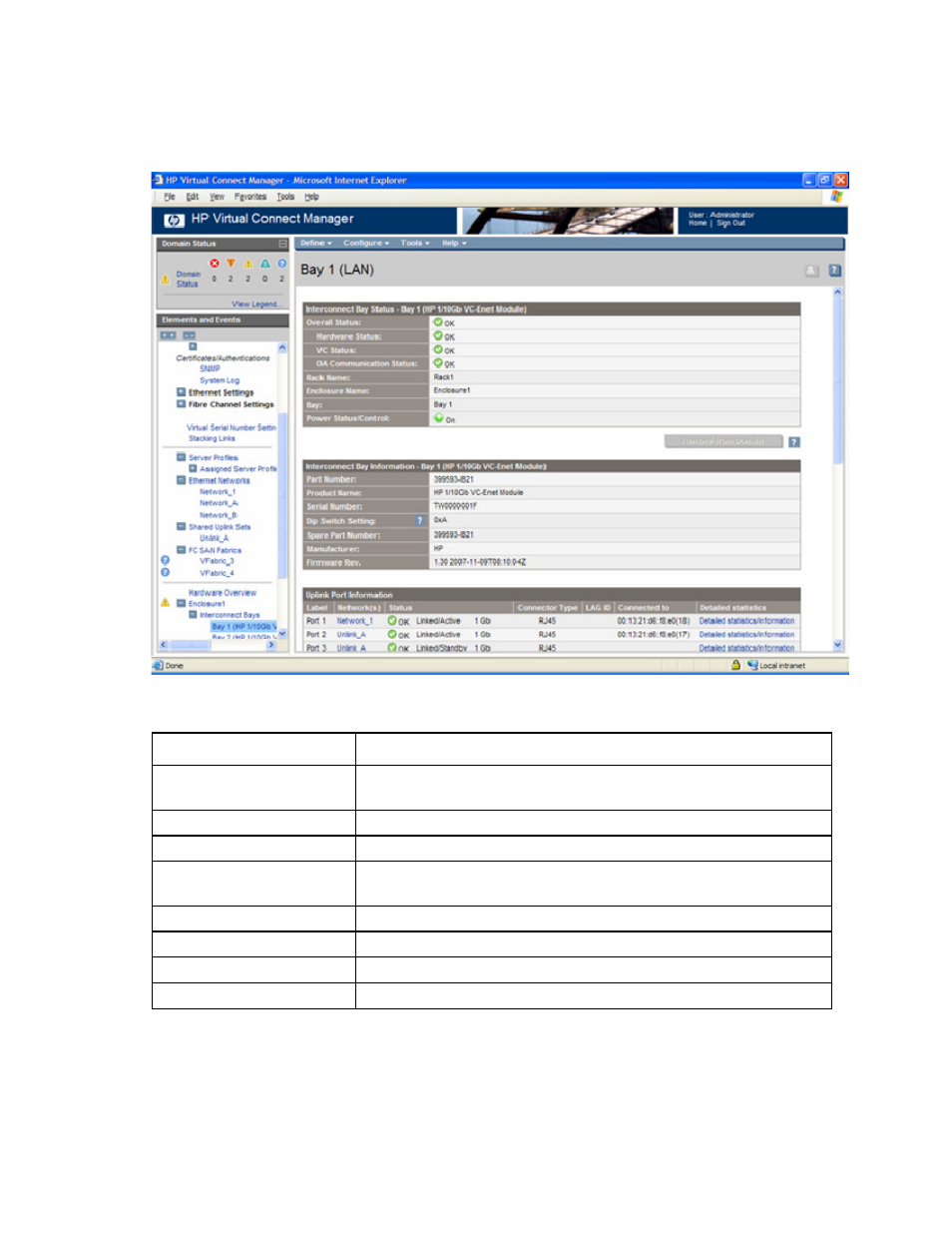

Interconnect Bay Summary screen (Ethernet module)
This screen provides a summary of the interconnect module status and port information. To remove a
module from the domain, see "Administrative module removal (on page
The following table describes the rows within the Interconnect Bay Status (VC-Enet Module) table in the
Bay Summary screen.
Row Description
Overall Status
Represents the worst condition of OA Reported Status, VC Status, and OA
Communication Status
Hardware Status
Component health status from the Onboard Administrator
VC Status
Component health status from the Virtual Connect Manager
OA Communication Status
Current Virtual Connect Manager to Onboard Administrator communication
state
Rack Name
Name of the enclosure rack (assigned through the Onboard Administrator)
Enclosure Name
Name of the enclosure (assigned through the Onboard Administrator)
Bay
Number of the bay being summarized on this screen
Power
Power state of the device
The following table describes the rows within the Interconnect Bay Information table in the Bay Summary
screen.
