HP Virtual Connect 1.10Gb-F Ethernet Module for c-Class BladeSystem - Manual (Page 150)

Server management 150

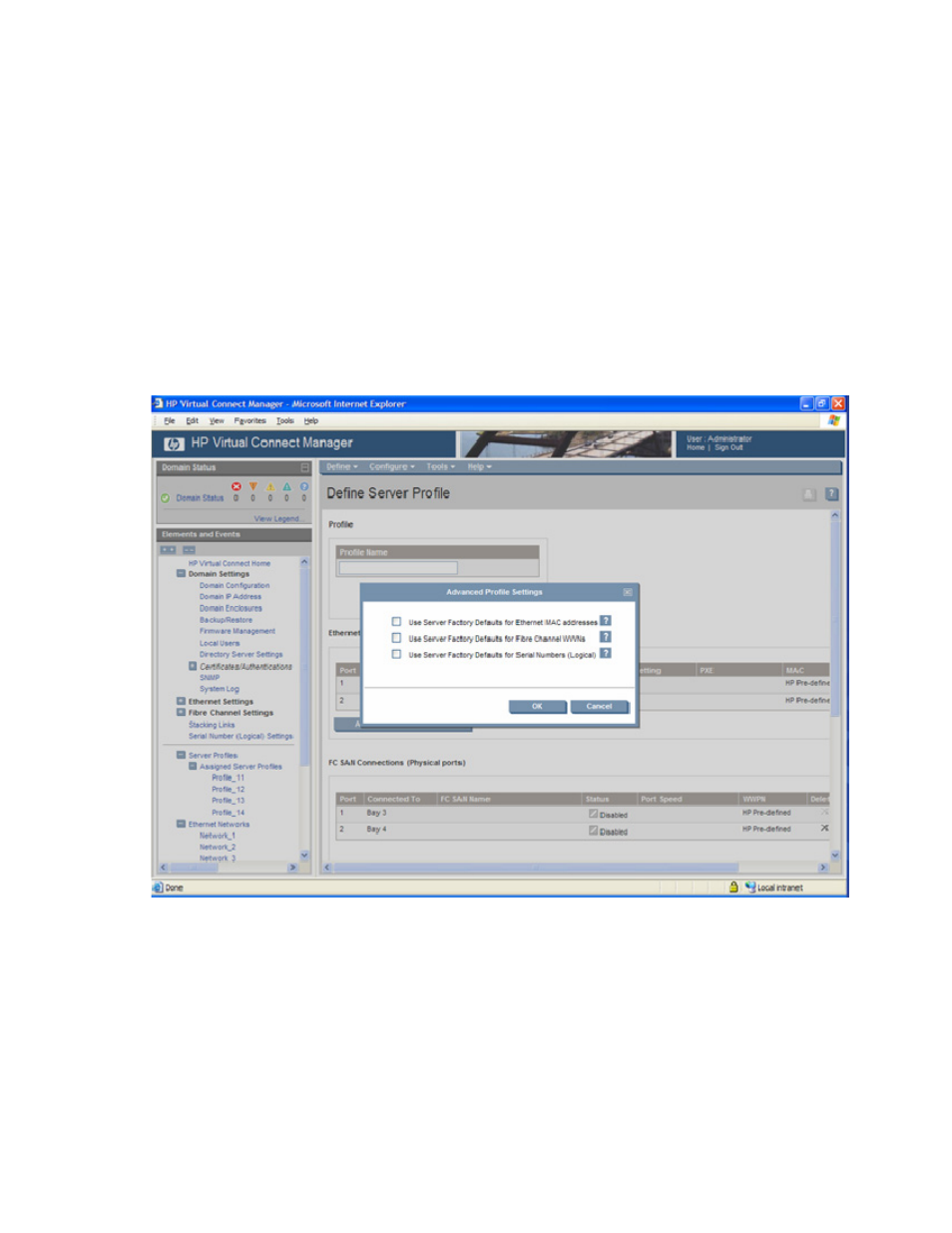

Advanced Profile Settings
MAC addresses for the domain are provided by Virtual Connect. You can override this setting and use
the MAC addresses that were assigned to the hardware during manufacture by selecting the Use Server
Factory Defaults for Ethernet MAC addresses checkbox. This action applies to every Ethernet connection
in the profile. For additional information, see "MAC Address Settings (on page
76 )."
WWNs for the domain are provided by Virtual Connect. You can override this setting and use the
WWNs that were assigned to the hardware during manufacture by selecting the Use Server Factory
Defaults for Fibre Channel WWNs checkbox. This action applies to every Fibre Channel connection in the
profile. For additional information, see "WWN settings (on page 86 )."
Serial numbers (logical) for the domain are provided by Virtual Connect. You can override this setting and
use the serial numbers that were assigned to the hardware during manufacture by selecting the User
Server Factory Defaults for Serial Numbers (Logical) checkbox. This action applies to this profile. For
additional information, see "Serial Number (Logical) Settings (on page 164 )."
Defining a Server Profile
If VC-assigned MAC addresses, WWNs, or non-default Fibre Channel boot parameters are being used,
the affected server blades must be powered off before assigning a profile. To power off a server blade,
see "Server Bay status screen (on page 218 )."
To define a server profile, use the following steps:
1. Enter the server profile name.
