MAX-CSE Video Encoder
2 MAX-CSE/MAX-CSD10 Operation/Reference Guide
MAX-CSE Product Specifications

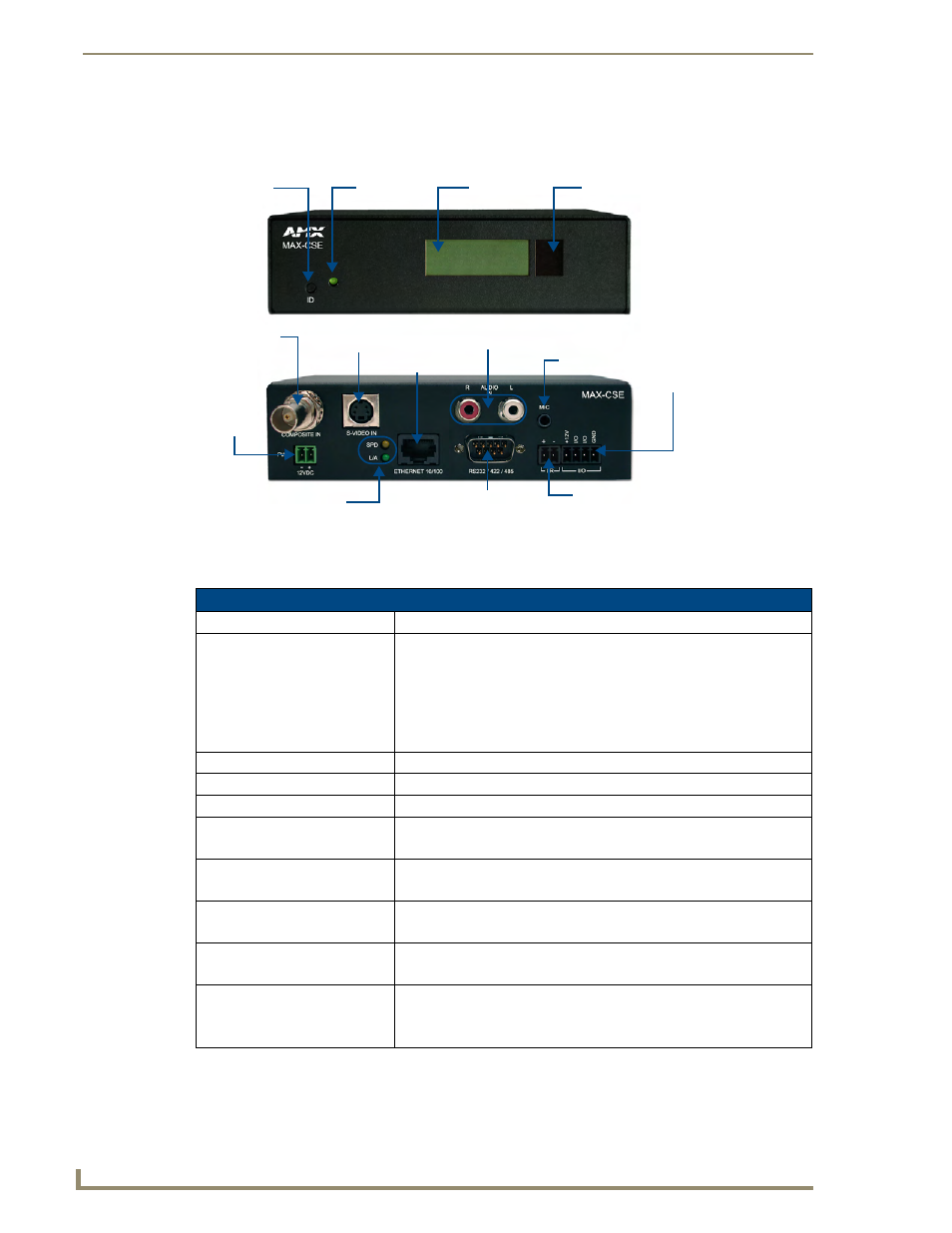

FIG. 1 shows the front and rear views of the MAX-CSE.
The following table outlines the specifications for the MAX-CSE Video Encoder.
FIG. 1 MAX-CSE Video Encoder (front and rear views)
MAX-CSE Specifications
Dimensions (HWD): 1.58" x 5.54" x 6.95" (4.01cm x 14.07cm x 17.65cm)
Power Requirements: • 500mA @ 12VDC (6W)
• Optional 12VDC power input overrides PoE when used.
• Power requirements are usage-dependent.
• Power Over Ethernet (PoE) is available.
• This product is intended to be supplied by a Listed external power supply
rated from 10 to 18 VDC, minimum 500 mA or equivalent.
Weight: • 2.02 lbs (0.92 kg)
Enclosure: • Metal with black matte finish
Certifications: • FCC Part 15, Class B, CE, and UL listed
Supported Transport Protocols: • RTP (MPEG-2/MPEG-4 Transport Stream)
• UDP (MPEG-2 Transport Stream)
Video Inputs: • Composite Video (via BNC).
• S-Video (via female S-Video connector)
Audio Inputs: • Analog Stereo RCA connectors
• Microphone (1/8” stereo)
Supported Resolutions: • NTSC (480i)
• PAL (576i)
Supported Video Codecs: • MPEG-2 (2 Mbps - 6 Mbps)
• MPEG-4 (500Kbps - 3 Mbps)
• Adjustable Bit Rate: up to 6 Mbps
Ethernet
12 VDC
(front)
(rear)
Composite IN
Ethernet Speed and
S-Video IN
IR/Serial port
Analog stereo audio
Microphone
ID button Status LED LCD Display IR Receiver
Power
Link Activity LEDs
RS232/422/485
port
Input/Output
port
(BNC)
