MAX-CSD10 Web Interface
46 MAX-CSE/MAX-CSD10 Operation/Reference Guide
Audio/Video Page

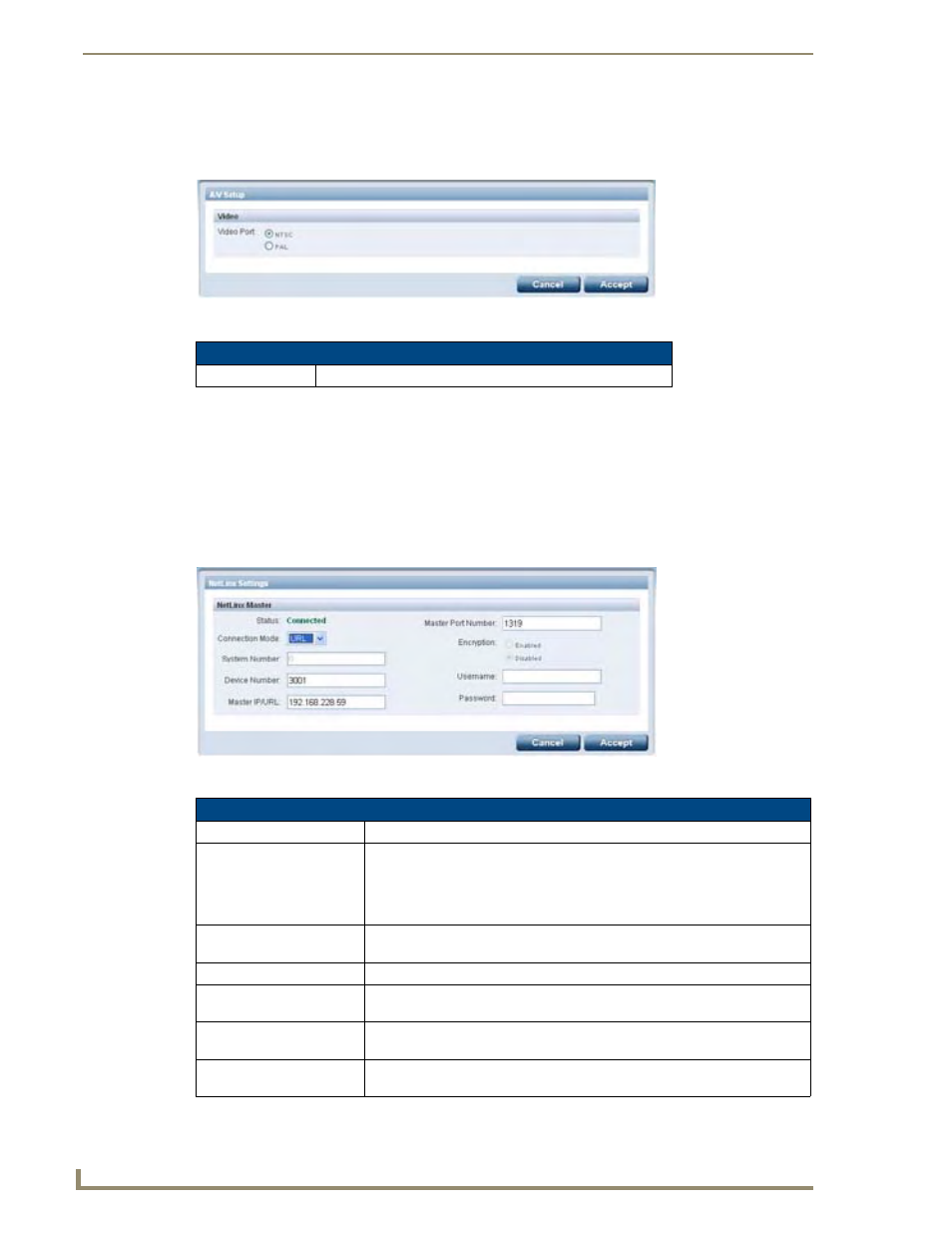

The Audio/Video page (FIG. 27) allows the user to set up the video port used by the MAX-CSD10.
To change the A/V setup:
1. From the Audio/Video page, select the video port to be used by the MAX-CSD10.
2. To save any changes to the port settings, click Accept. To keep the original settings, click Cancel.
NetLinx Page
The NetLinx page (FIG. 28) allows the user to check or modify the connection to the NetLinx Master.
FIG. 27 Audio/Video Page
Audio/Video Page Features
Video Port The video port used by the MAX-CSD10
FIG. 28 NetLinx Page
NetLinx Page Features
Status The current status of the NetLinx Master connection.
Connection Mode The method used to establish the connection:
• Listen
• Auto
• URL
System Number The number assigned to the particular system within a NetLinx network, if appli-
cable
Device Number The number assigned to the MAX-CSD10 by the NetLinx Master.
Master IP/URL If the Connection Mode is set to "URL", this field contains the NetLinx Master IP
address.
Master Port Number If the Connection Mode is set to "URL", this field contains the number for the
NetLinx Master port being used.
Encryption If the NetLinx Master allows signal encryption, this Enabled/Disabled radio but-
ton will be fully functional.
