MAX-CSD10 Video Decoder
5 MAX-CSE/MAX-CSD10 Operation/Reference Guide
MAX-CSD10 Video Decoder
Overview
The MAX-CSD10 is engineered to provide real-time decoding of streamed digital video content out as
Composite and S-Video signals for distribution onto external display devices such as a television, plasma
screen, and projector, and MPEG-streaming capable devices such as AMX Modero Touch Panels.
The rear Ethernet port supports IEEE 802.3af Power-over-Ethernet (POE) which enables DC power to be
supplied to this device over the unused pairs of wires on the connected Ethernet cable.
MAX-CSD10 Product Specifications

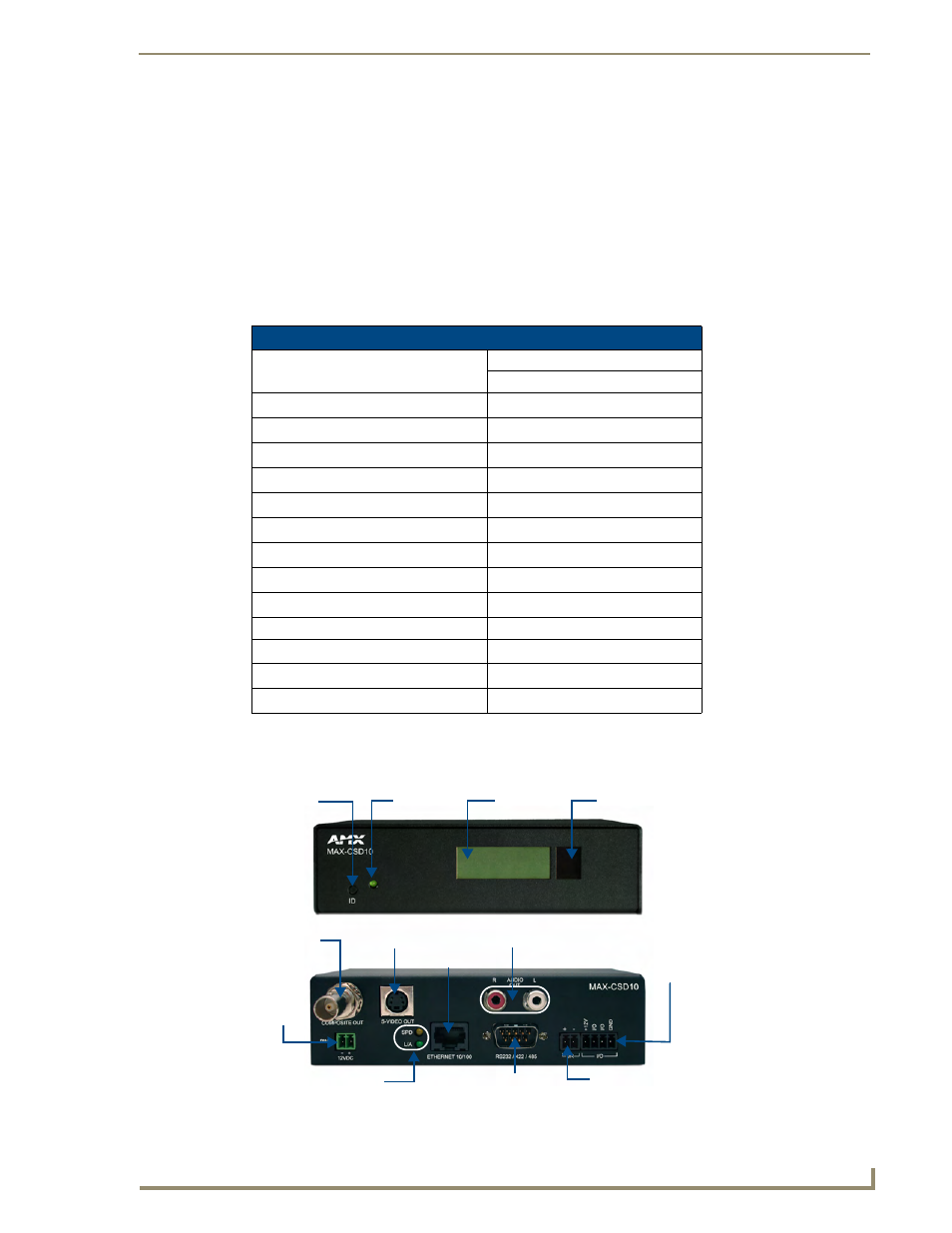

FIG. 2 shows the front and rear views of the MAX-CSD10 unit.
MAX Decoder Features
MAX-CSD10 (FG2178-72)
Components:
Front Panel LCD Display
10/100 Ethernet Connectivity
On-Board Web Server
NetLinx Connectivity
RS-232/485/422 (Serial) Connectivity
IR Control
I/O Control (2 ports)
IR Receiver
NTSC / PAL Compatible
A/V Outputs:
Composite Video Out
S-Video Out
Analog Stereo Audio Out
FIG. 2 MAX-CSD10 Video Decoder (front and rear views)
Ethernet
12 VDC
(front)
(rear)
Composite
Ethernet Speed and
S-Video OUT
IR/Serial port
Analog stereo audio
ID button Status LED LCD Display IR Receiver
Power
Link Activity LEDs
RS232/422/485
port
Input/Output
port
OUT
(BNC)
LCD Display
