SCSI Version

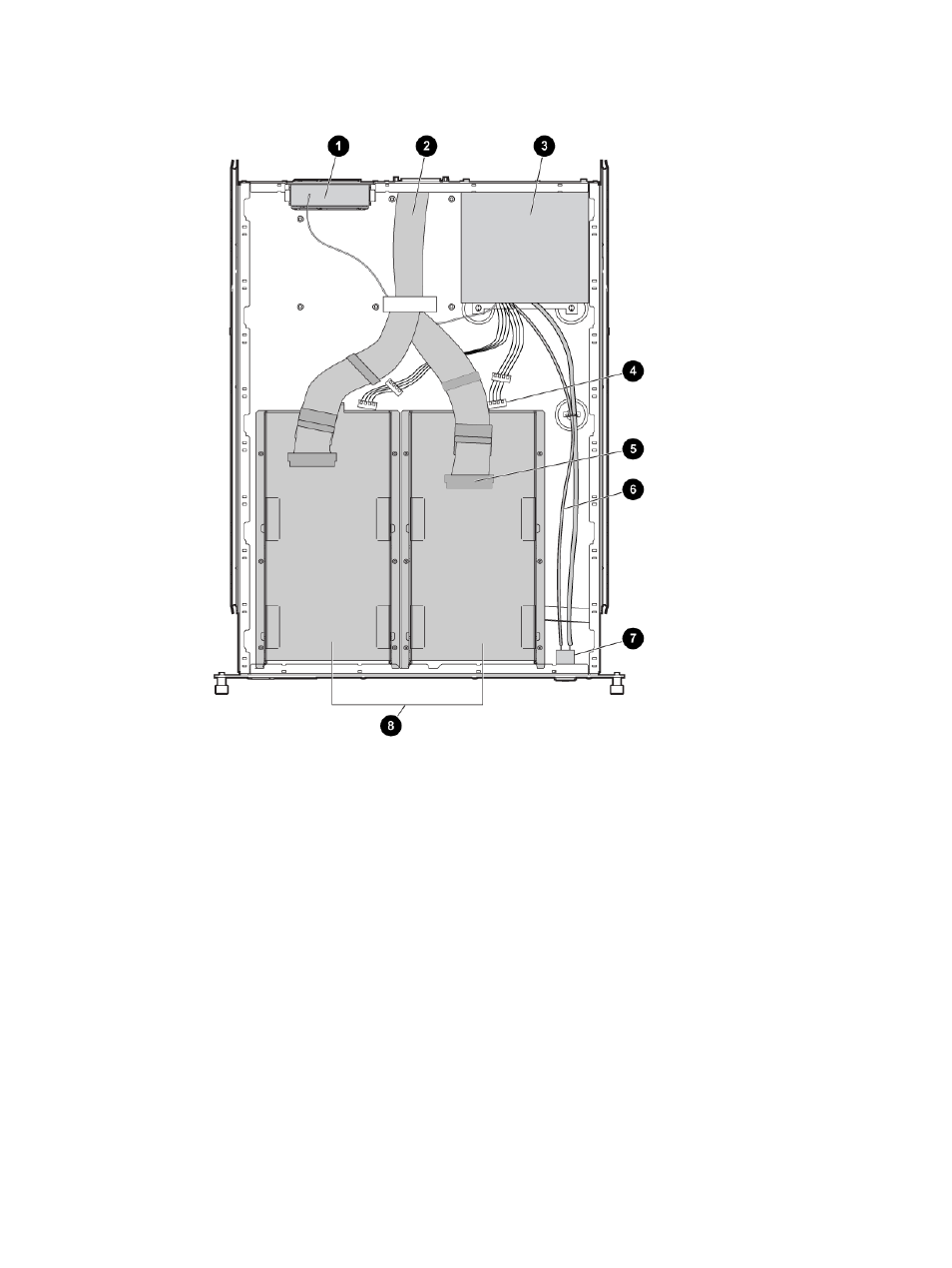

Figure 8 3U rack-mount enclosure internal components (SCSI)

2. Internal LVD/SE Wide SCSI cables (2)

1. Fan assembly

4. Power connector

3. Power supply

6. Power switch and LED cables

5. SCSI terminator

8. Drive trays (2)

7. Power switch assembly

3U Rack-mount Enclosure Components
