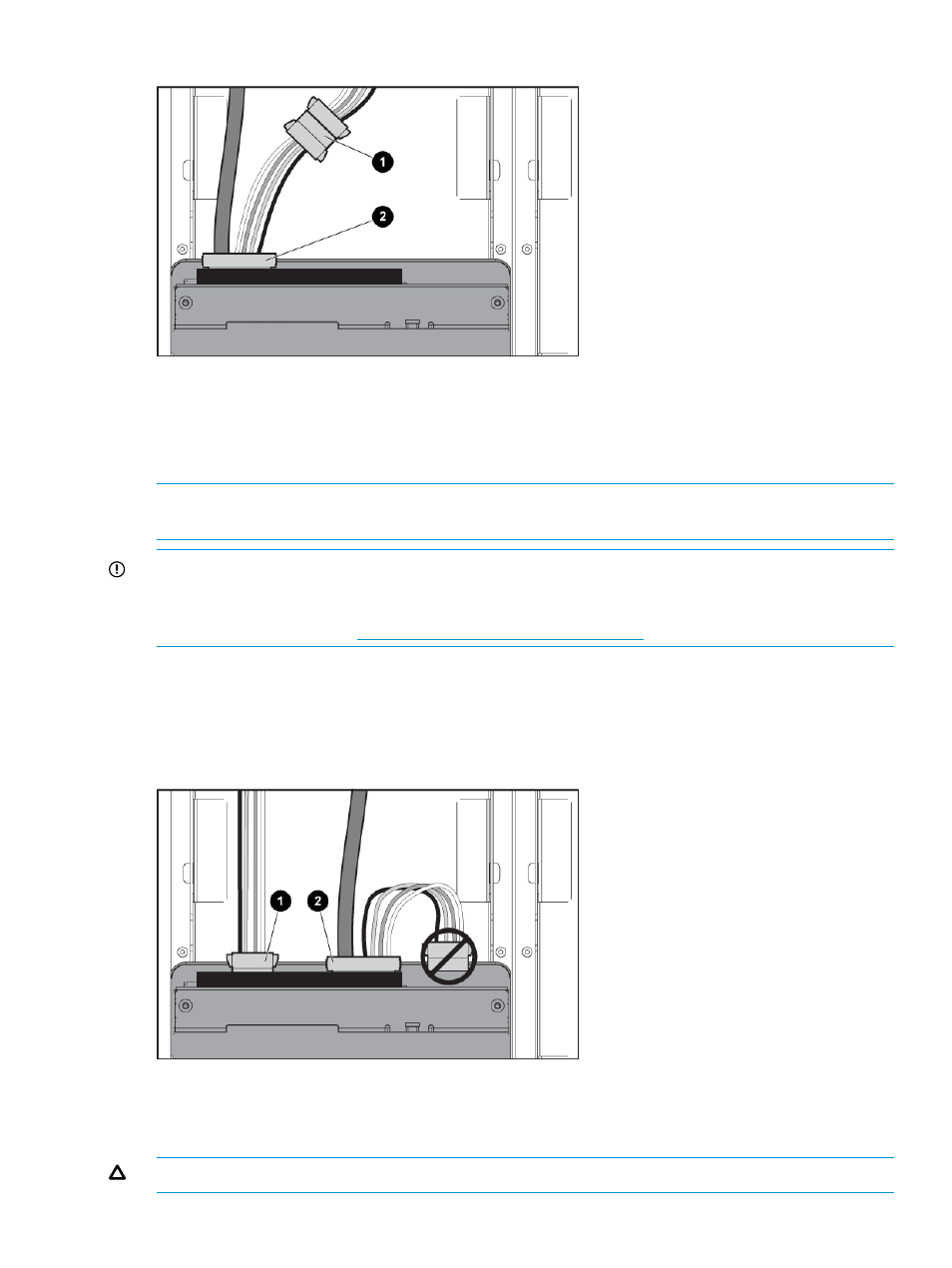

Figure 14 SAS LTO-5, LTO-6, and all DAT drive cable connections
1. Power connector
2. SAS data cable (with power)
SAS LTO–2, LTO–3 and LTO–4 Tape Drive Installation
NOTE: These instructions do not apply to LTO-5, LTO-6, or DAT tape drives; see “SAS LTO-5,
LTO-6, and all DAT Tape Drive Installation” (page 12) .
IMPORTANT: High quality SAS cables rated at the transfer rate of the tape drive are required.
Always verify the SAS cable you are using is rated for the data transfer speed of the interface of
your components. For optimum performance, only use HP cables of the length specified as qualified
for your products. Refer to
http://www.hp.com/storage/SPOCK for recommended cables.
1. Connect the SAS data cable to the drive's data connector. See also SAS cabling
recommendations (page 4) .
2. Connect the power cable from the power supply to the separate power connector on the tape
drive.
Figure 15 SAS LTO–2, LTO–3 and LTO–4 drive cable connections
1. Separate power connector
2. SAS data connector
CAUTION: Do not connect the power cable to the power connector on the SAS data cable .
SAS LTO–2, LTO–3 and LTO–4 Tape Drive Installation 13
