Installing the rails and enclosure – HP StoreEver Rack-mount Kits User Manual

Page 17

background image

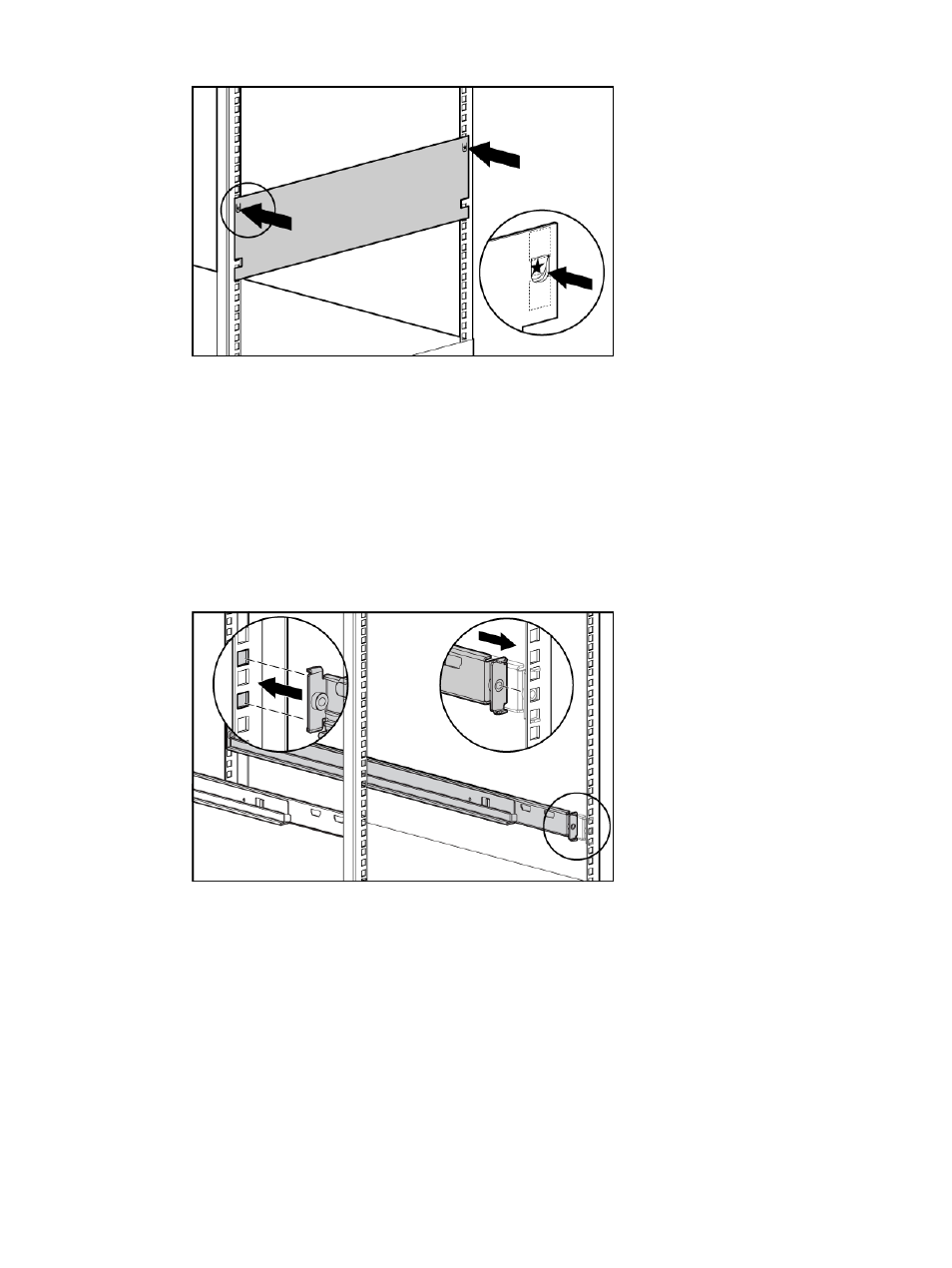

Figure 17 Measuring with the template

3.

Repeat steps 1 and 2 on the back of the rack.

Installing the Rails and Enclosure

To install the rails and enclosure:
1.

From the rear of the rack, insert the front tabs of the spring-loaded rack rail into the proper
holes.

2.

Press the rail forward and insert the rear tabs of the spring-loaded rack rail into the proper
holes. The rail locks into place securely.

Figure 18 Aligning and inserting the spring-loaded rack rail (rear view)

3.

Repeat

Step 1

and

Step 2

for the second spring-loaded rack rail.

4.

From the rear of the rack, align the cable reel with the hole in the right spring-loaded rack rail
and secure it with an M6 x 1.0-12L Phillips screw.

Installing the 3U Rack-mount Enclosure

17
