Installing and Configuring the Tape Drive for the
NonStop NS-Series Integrity Server
5344-2SE Tape Drive Installation and User’s Guide — 546010-001
2 -5
Installation
5. Connect the opposite end of the SAS cable to one of the SAS HBA connections on
the rear of the CLuster I/O Module (CLIM).
For more information on the CLuster I/O Module see the “CLuster I/O Module
(CLIM) Installation and Configuration Guide.”
You can use any of the SAS cables in Table 2-1 .
6. Connect the CLuster I/O Module to a NonStop NS-series server.
7. Connect the tape drive’s power connections to a -48 volt power supply.
8. Refer to steps 3-7 when installing the tape drive that is on the other side of the unit.

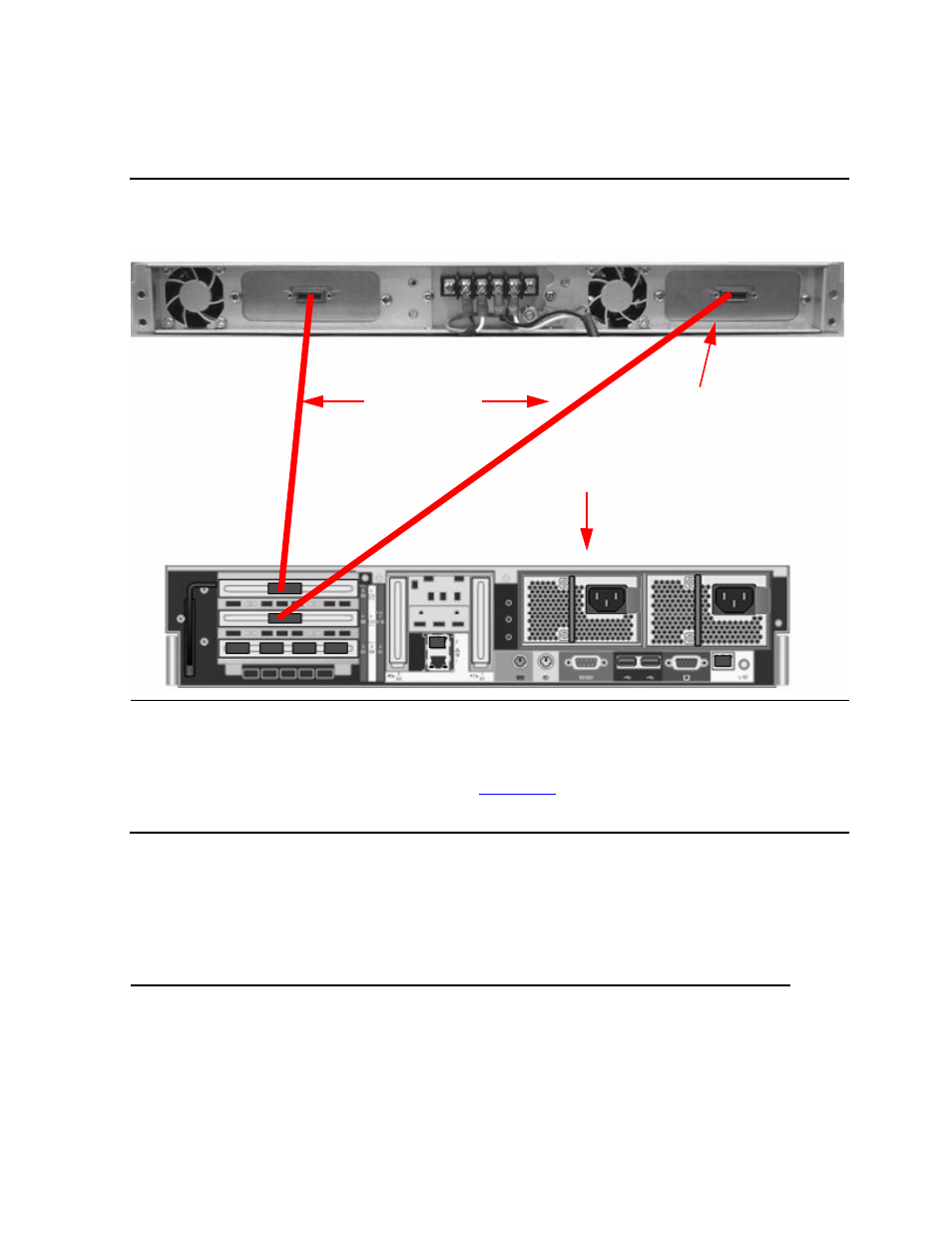

Figure 2-5. Configuration Example
Table 2-1. SAS Cables
Model Number Description
389665-B21 1 M, SFF8470 to SFF8470 External Wide SAS Cable
389668-B21 2 M, SFF8470 to SFF8470 External Wide SAS Cable
389671-B21 4 M, SFF8470 to SFF8470 External Wide SAS Cable
SAS Cables Tape Drive
CLIM (Rear View)
(Rear View)
