Installing and Configuring the Tape Drive for the
NonStop NS-Series Integrity Server
5344-2SE Tape Drive Installation and User’s Guide — 546010-001
2 -2
Installation
a. Align the slotted holes on the left and right component rails with the three pins
on the sides of the enclosure.
b. Slide the component rails toward the rear of the enclosure until they lock into
place.

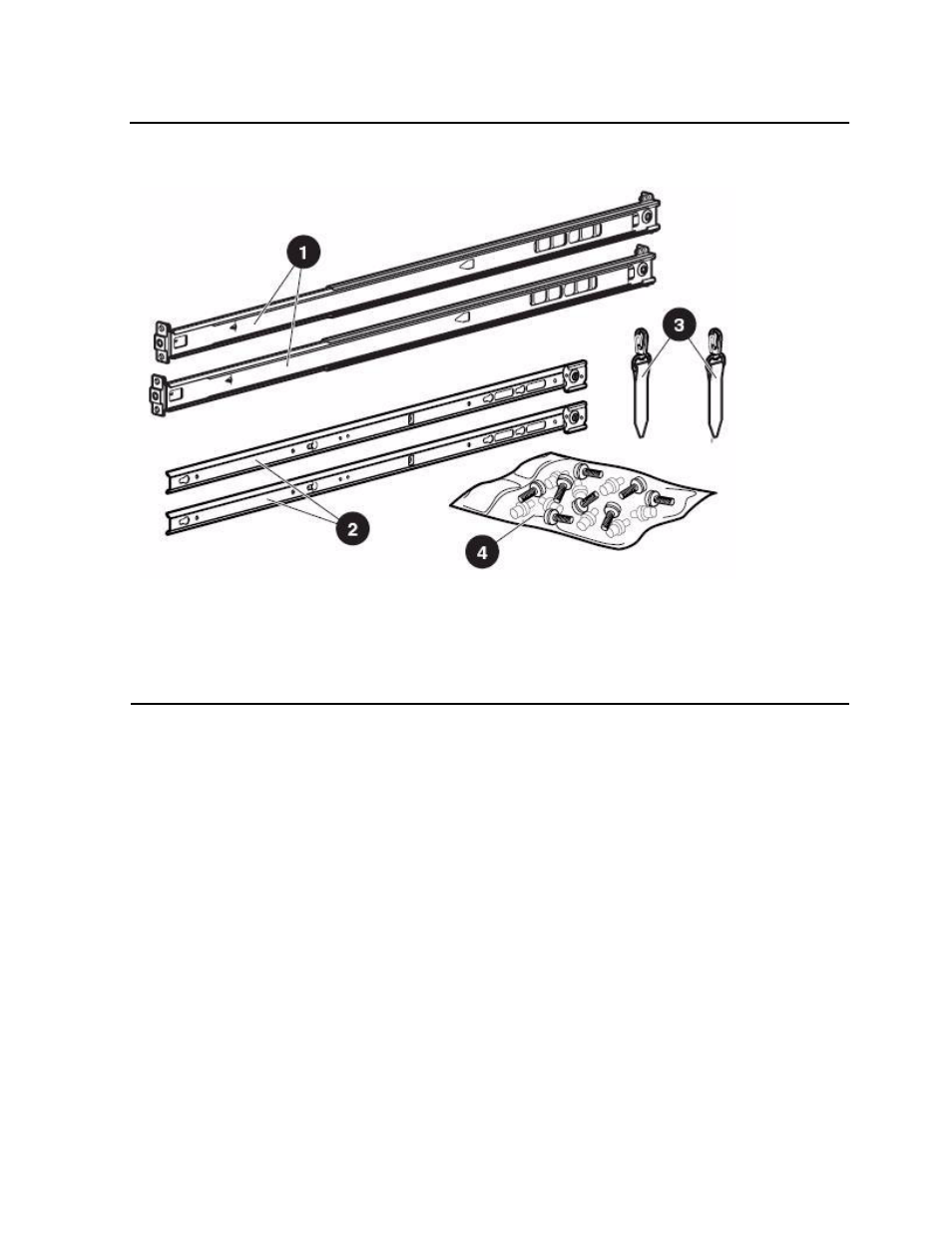

Figure 2-1. Rail Kit Components
1. Outer Rack Rails
2. Inner Component Rails
3. Cable Support Clips
4. Fasteners
