HP 2000i G2 Modular Smart Array User Guide 39

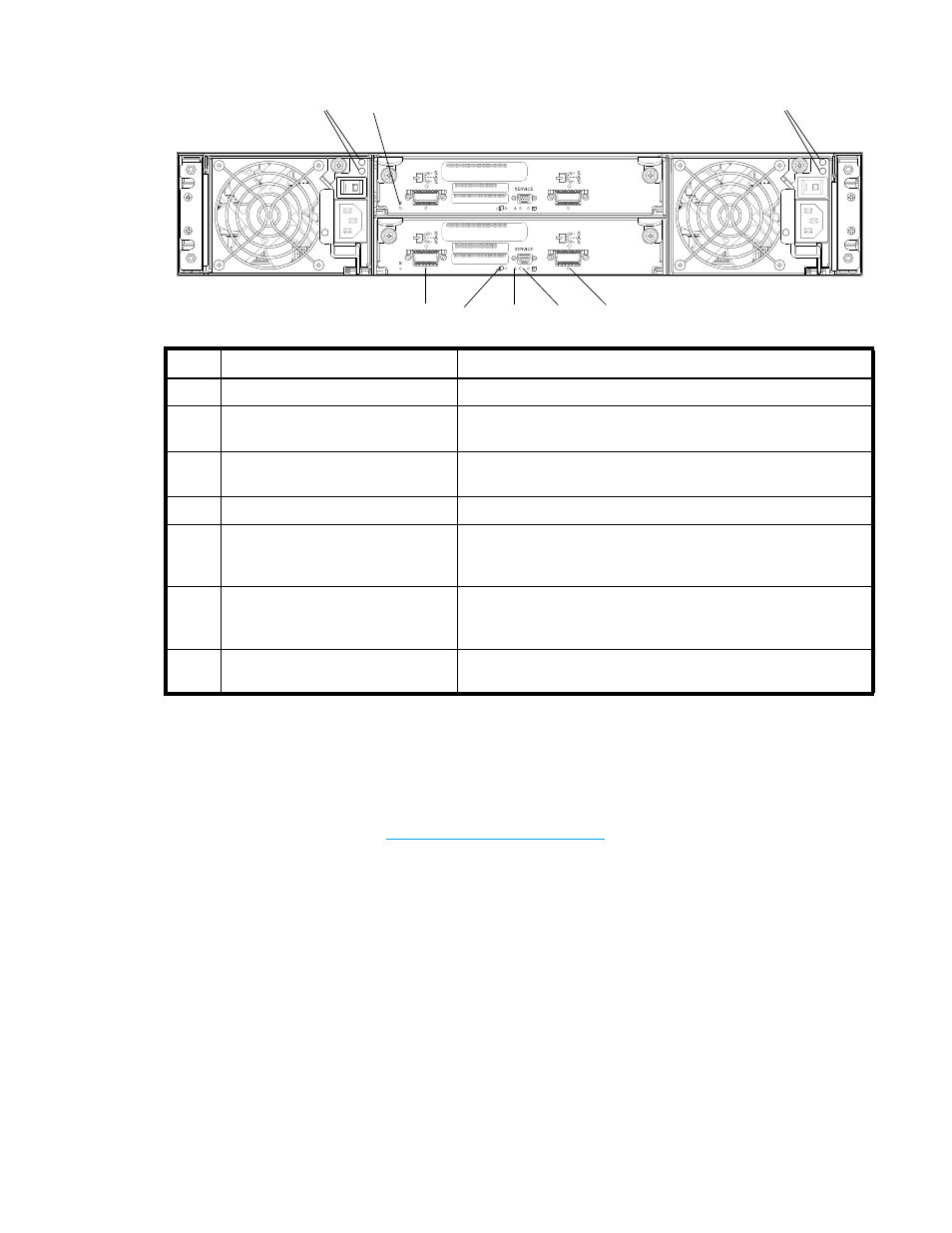

MSA2000 3.5" 12-drive enclosure
MSA70 2.5” 25-drive enclosure
The 2324i G2 can also be attached to an MSA70 running firmware version 2.18 or later. For information
about the MSA70, including detailed steps to upgrade the firmware, see the HP StorageWorks 70 Modular
Smart Array Enclosure User Guide located on the MSA2000 G2 Software Support/Documentation CD
shipped with your product, or at http://hp.com/support/manuals .
LED Description Definition
1 Power supply LEDs See Power supply LEDs on page 40 .
2 Unit Locator Off — Normal operation.
Blinking white — Physically identifies the expansion module.
3 SAS In Port Status Green — Port link is up and connected.
Off — Port is empty or link is down.
4 OK to Remove Not implemented.
5 Fault/Service Required Amber — A fault has been detected or a service action is required.
Blinking amber — Hardware-controlled powerup or a cache flush
or restore error.
6 OK Green — Expansion module is operating normally.
Blinking green — System is booting.
Off — Expansion module is not OK.
7 SAS Out Port Status Green — Port link is up and connected.
Off — Port is empty or link is down.
0 0
1 2
4 3 5 6 7
1
