HP TouchSmart 300-1205z CTO Desktop PC User Manual
Page 24

18
User Guide (Features may vary by model)
Using a set-top box with Windows Media Center
(optional step)
Sold separately
Refer to your set-top box documentation for more details.
1

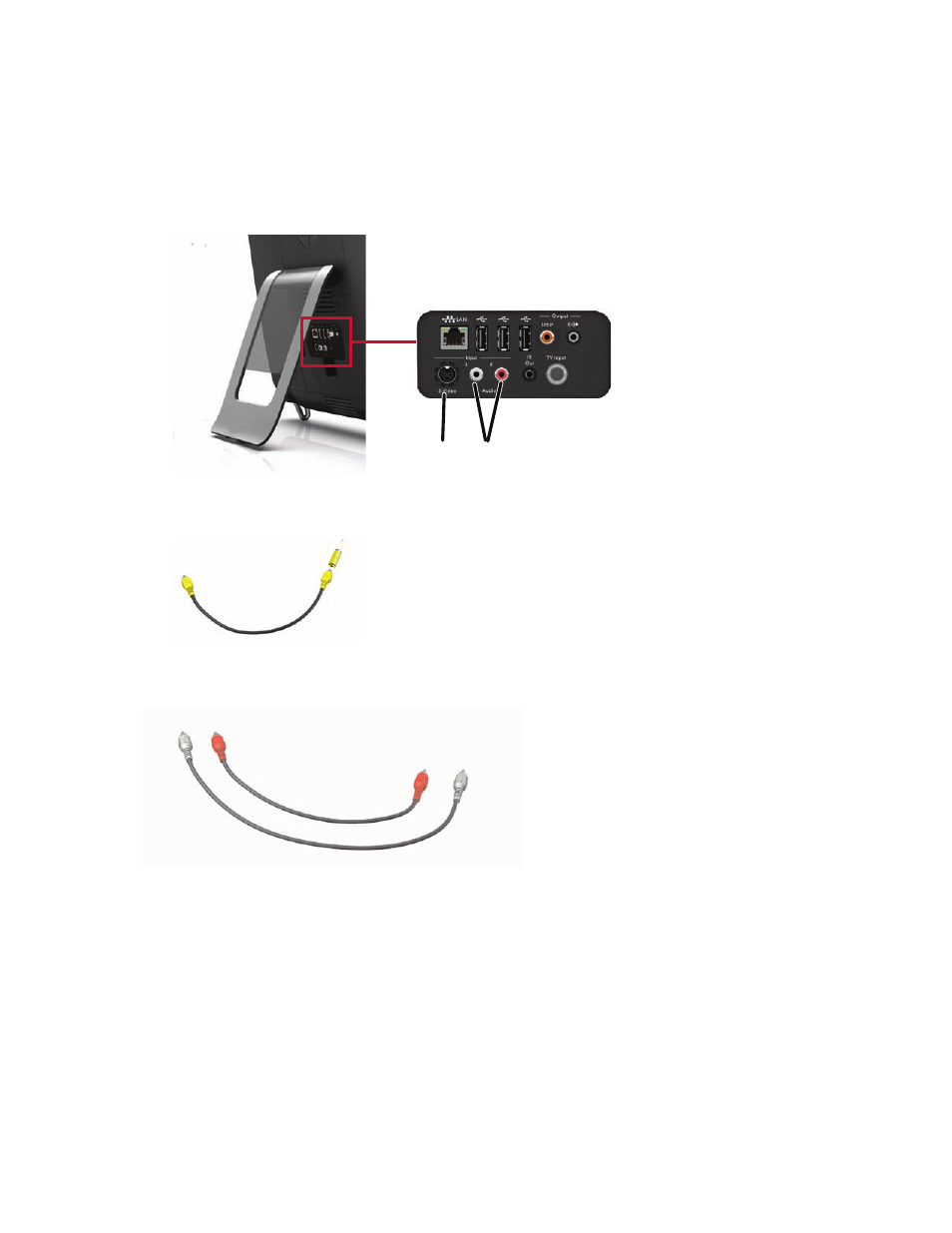

Connect an S-Video cable to the S-Video In connector (A), located at the back of the computer behind
the connector cover. Connect the other end of the cable to your set-top box.
You may need a composite video to S-Video adapter (sold separately) to connect the set-top box Video
Out to the S-Video In connector (A).
.
2
For S-Video, connect the left and right audio cables from your set-top box to the left (white) and right
(red) Audio Line In connectors (B) on the back of the computer.
Setting up for remote control use (optional)
You must connect an IR emitter (blaster) cable to the computer and your set-top box to use the remote
control properly.
A
B
