4. Select Actions > Enable/Disable Application.
5. Click OK.
The sample configuration, below, shows a multi-server, multi-array system using
NAS Data Path Manager. Recommended connections from the fibre channel
switches to the arrays are represented by solid lines; optional connections are
represented by dashed lines.

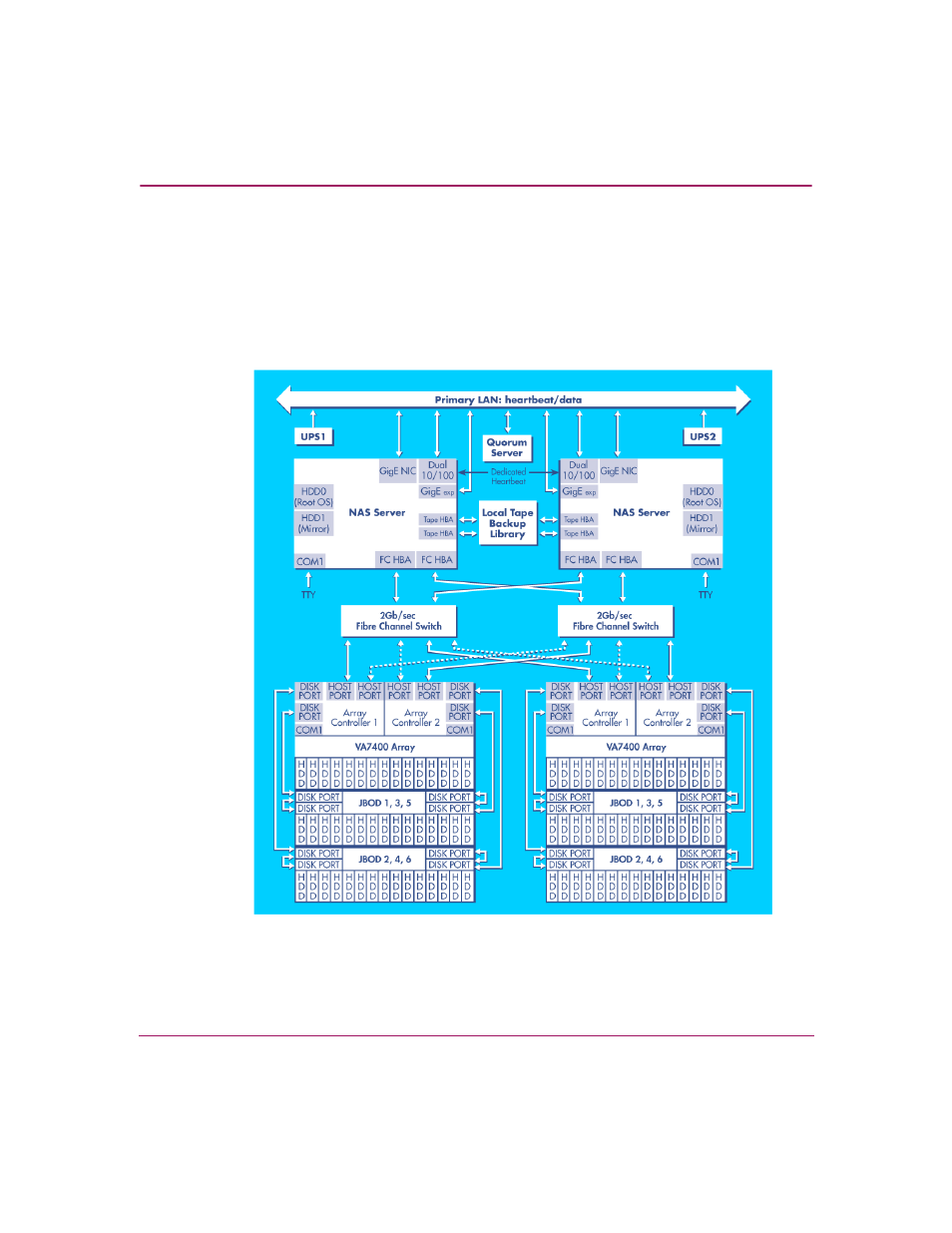

Figure 2: Sample configuration using NAS Data Path Manager on a NAS 8000 high
availability system
