Page 43

Diagnosing array problems 43
LED ID
Color
Name
Comments
9
Green
CR7: Gas Pedal
This LED, together with the Idle Task LED (next
item), indicates the amount of controller CPU
activity. For details, see the following table.
10
Green
CR8: Idle Task
This LED, together with the Gas Pedal LED (previous
item), indicates the amount of controller CPU
activity. For details, see the following table.
Gas Pedal LED
status
Idle Task LED
status
Controller CPU activity level
Off
Blinking
0–25%
Blinking Off
25–50%
On steadily
Off
50–75%
On steadily
On steadily
75–100%

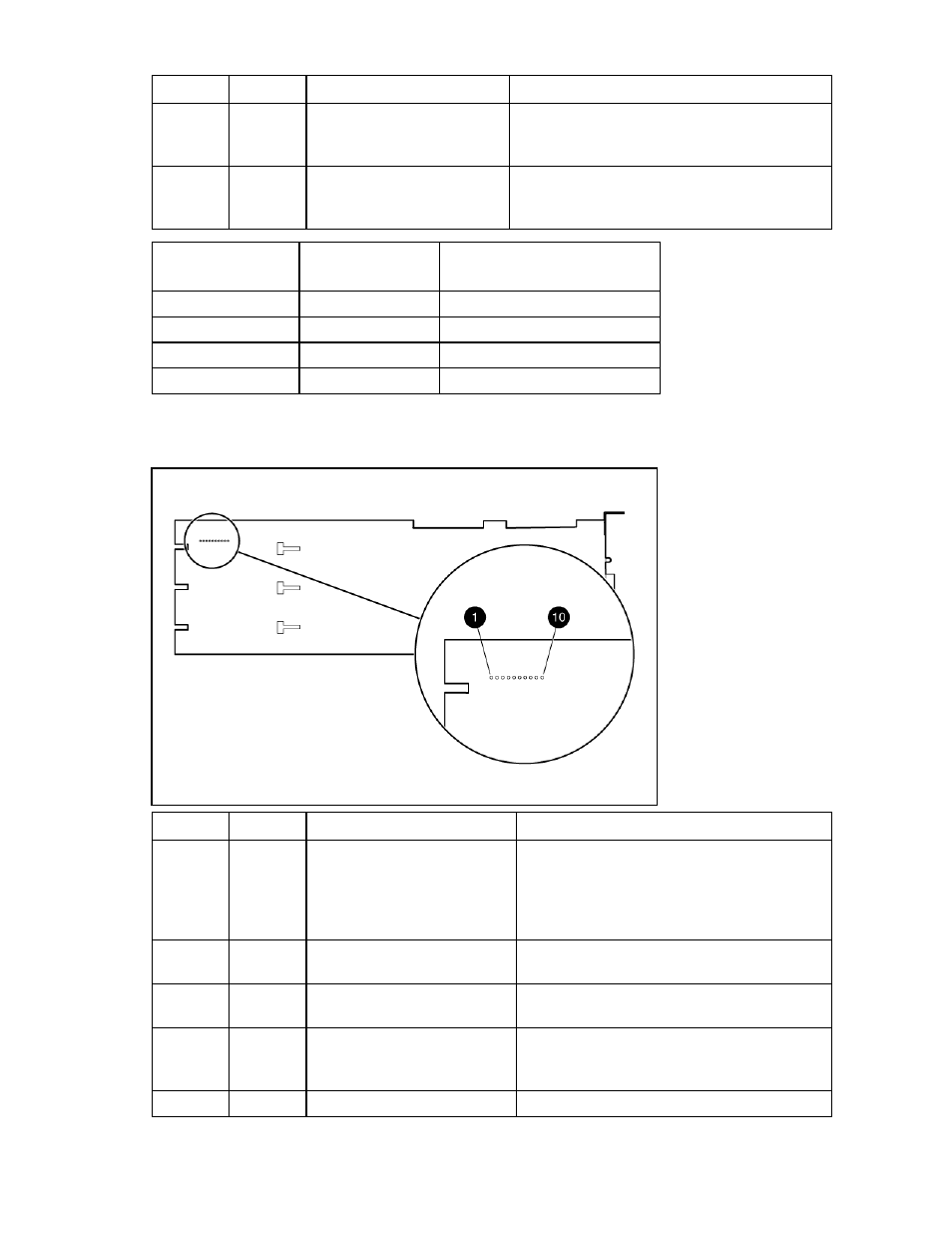

Runtime LEDs for P800 model
LED ID
Color
Name
Comments
1
Green
CR502: Expander Heartbeat
This LED flashes every two seconds during normal
operation. If the LED glows steadily, the expander
cannot function due to an internal problem. If the
LED flashes twice per second, the expander
cannot function because the NVRAM is corrupt.
2
Amber
CR510: System Error
The controller ASIC has locked up and cannot
process any commands.
3
Amber
CR509: Diagnostics Error
One of the server diagnostics utilities has detected
a controller error.
4
Amber
CR500: Drive Failure
To determine which drive has failed, check the
Fault LED of each physical drive connected to the
controller.
5
Green
CR508: Activity
Port 4I is active.
