ELECTRICAL SPECIFICATIONS (OUTDOOR ONLY):

NOTE: This unit is designed for operation in an

upright position. Installing the unit upside
down may cause damage to the internal
equipment, and will void the warranty.

Be sure the bracket is properly and securely
mounted to a supporting structure capable of
rigidly holding the weight of the entire unit.

GENERAL INSTRUCTIONS:

Tools Required: .100" Flat Head Screwdriver
Phillips Head Screwdriver

Listed on the following pages are the specific instructions
for each of the individual network cameras. See specific
instruction for the model that matches the unit you have.

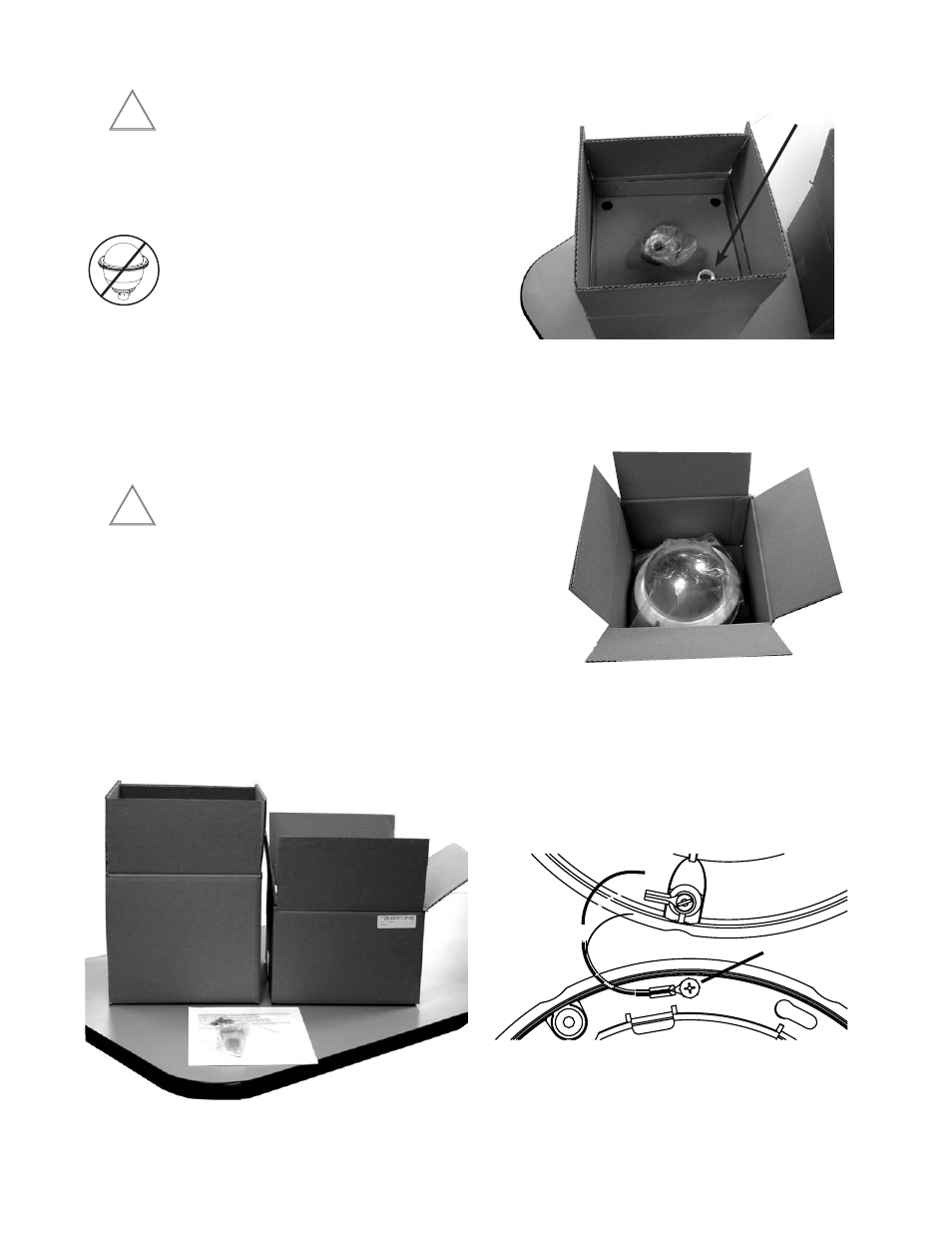

Picture 1

Teflon Tape

ASSEMBLING THE PRODUCT:

1. Remove the contents of the box onto a table. The larger

subassembly box is the housing assembly. The smaller
subassembly box is the dome assembly. (Picture 1)

3, Open the dome assembly box. Note there is a protection

film on the dome. DO NOT REMOVE the film until the
product is fully assembled and installed. This film protects
the dome from scratches during installation. (Picture 3)

4. There is a safety lanyard that is attached to the inside of the

housing assembly. Remove the phillips head screw on the
trim ring assembly and then attach the lanyard to the trim
ring with the phillips head screw.

5. The safety lanyard is now attached to the housing

(Picture 5).

Picture 5

Picture 2

2. Open the housing assembly box. Note there is a small roll

of Teflon Tape that will be needed during installation, put it
aside. (Picture 2)

Attach Lanyard
to Trim Ring

Picture 3

Power 24VAC, Class 2 Only

52 watts at 24 VAC (accessories)
Heater: 50 watts
Blower: 2 watts
