Installing Axis 233 Camera

(cont.)

8. Turn the camera counter-clockwise.

9. When the locking

buttons hit the end
of the keyhole
slots, tighten
the locking
screw.

7. Place the Quick Release plate onto the bottom of the

camera,

Make sure that the locking

screws on the AXIS 233
camera line up with
the keyhole slots
on the Q/R plate.

Slide the
camera into
the keyhole
slots by
targeting
the locking
screw(s).

Keyhole Slots

Locking Screw

Keyhole Slots

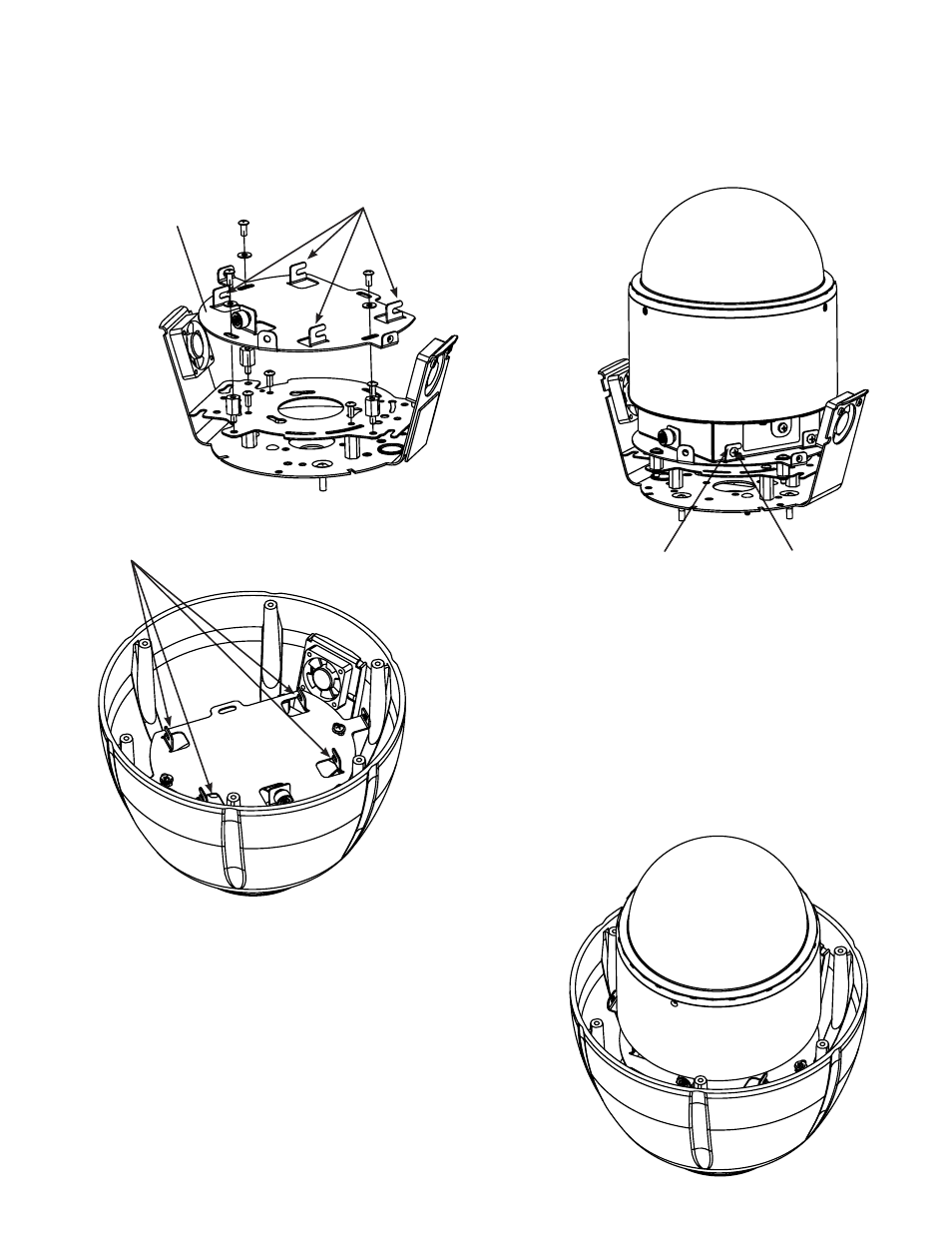

6. Mount the Axis 233 camera bracket and Q/R plate (Quick

Release plate) as shown.

Keyhole Slots

Quick Release
(Q/R) plate
