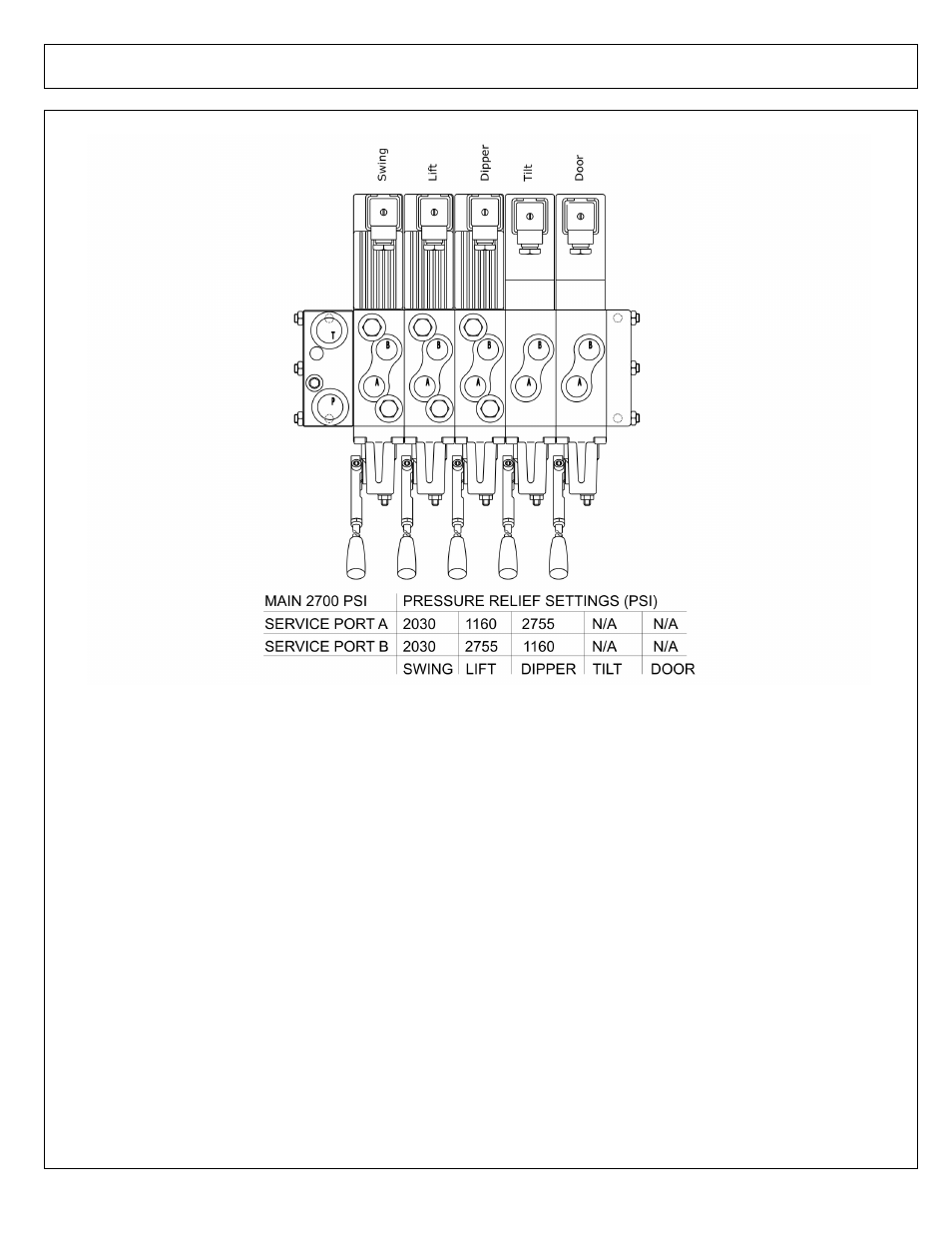

VALVE ASSEMBLY - ELECTRO-HYDRAULIC VALVE
ITEM PART NO. QTY. DESCRIPTION
02974004 2 ELECTRICAL ACTIVATION MODULE
02974005 3 ELECTRICAL ACTIVATION MODULE
02974027 5 SEAL KIT O RING (BETWEEN THE ELECTRICAL MODULE TO SECTION)
02974838 5 MECHANICAL ACTIVATION MODULE
02975881 5 ORING 033.0 X 2.5
02975882 10 ORING 05.0 X 2.0
02975950 5 SEAL KIT O RINGS (BETWEEN THE HANDLE MECHANICAL MODULE TO SECTION)
02976024 5 GASKET,CONNECTOR TO MODULE
02977032 1 KIT,VALVE ASSEMBLY - 5 SPOOL
02977414 1 RELIEF VALVE 2755 PSI
02977745 3 RELIEF VALVE 2030 PSI
02977851 20 SHCS METRIC 6-P1.0- 33MM 8.8
02977957 2 RELIEF VALVE 1160 PSI
02979050 1 RELIEF VALVE 2755 PSI(PRE4/98)
02979051 3 RELIEF VALVE 2030 PSI(PRE4/98)
02979052 2 RELIEF VALVE 1160 PSI(PRE4/98)
02980656 3 SECTION,BARE,SWING,LIFT,DIPPER
