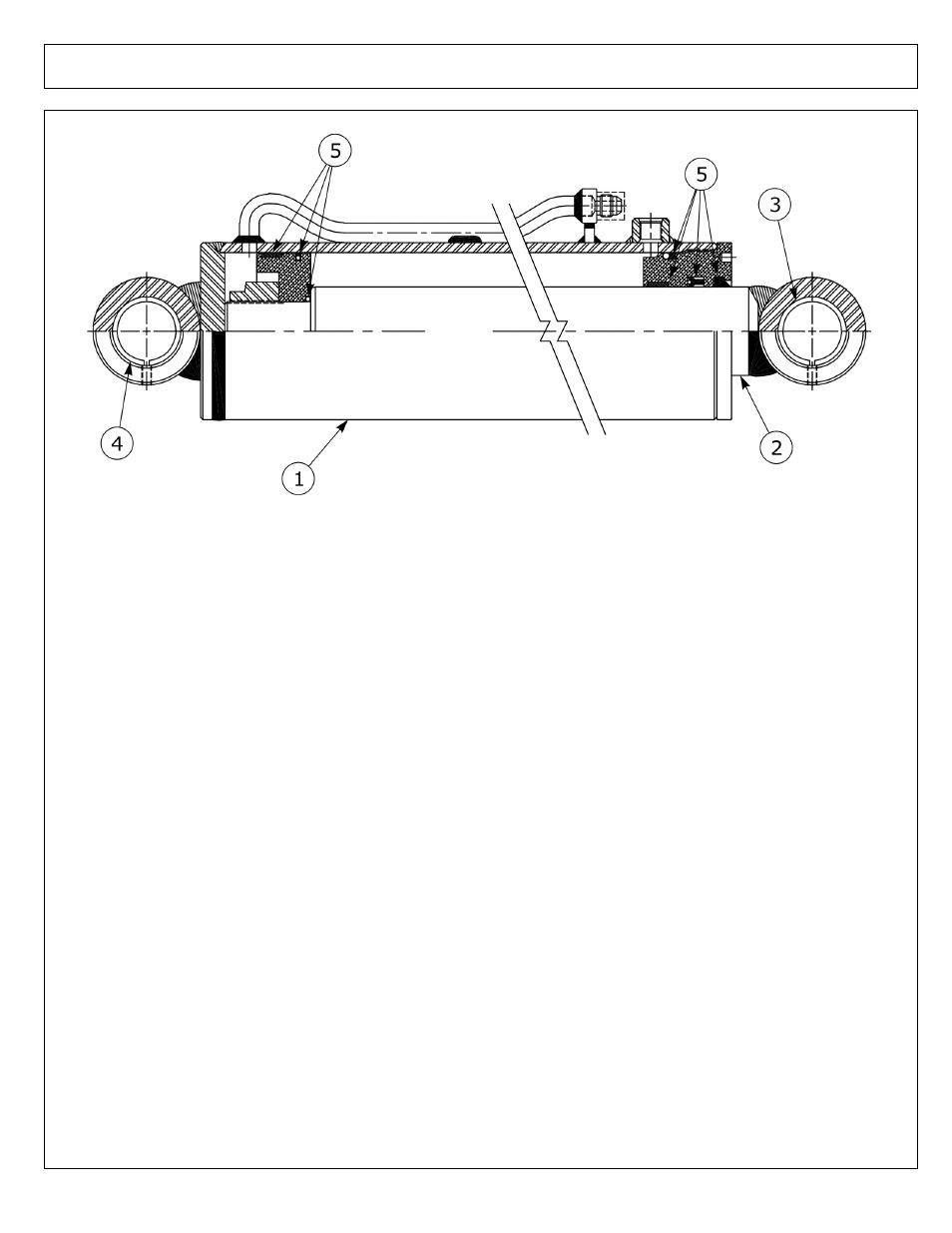

HYD CYL ASY - DIPPER (22 FT BOOM)

ITEM

PART NO. QTY.

DESCRIPTION

02981277

1

HYD CYL ASY, 4" BORE X 21.5" STROKE (22 & 25 FT BOOM)

1

02981925

1

BARREL WLDMT

2

02981926

1

ROD WLDMT

3

02982250

2

BUSHING, ROD END 1-1/2" LG

4

02982251

2

BUSHING, BARREL END 2" LG

5

02982068

1

SEAL KIT

©2012 Alamo Group Inc.

Parts Section -118

Axtreme2 Boom (09-09) Rev 02-12
