Alamo AXTREME2 02988075P - Manual (Page 121)

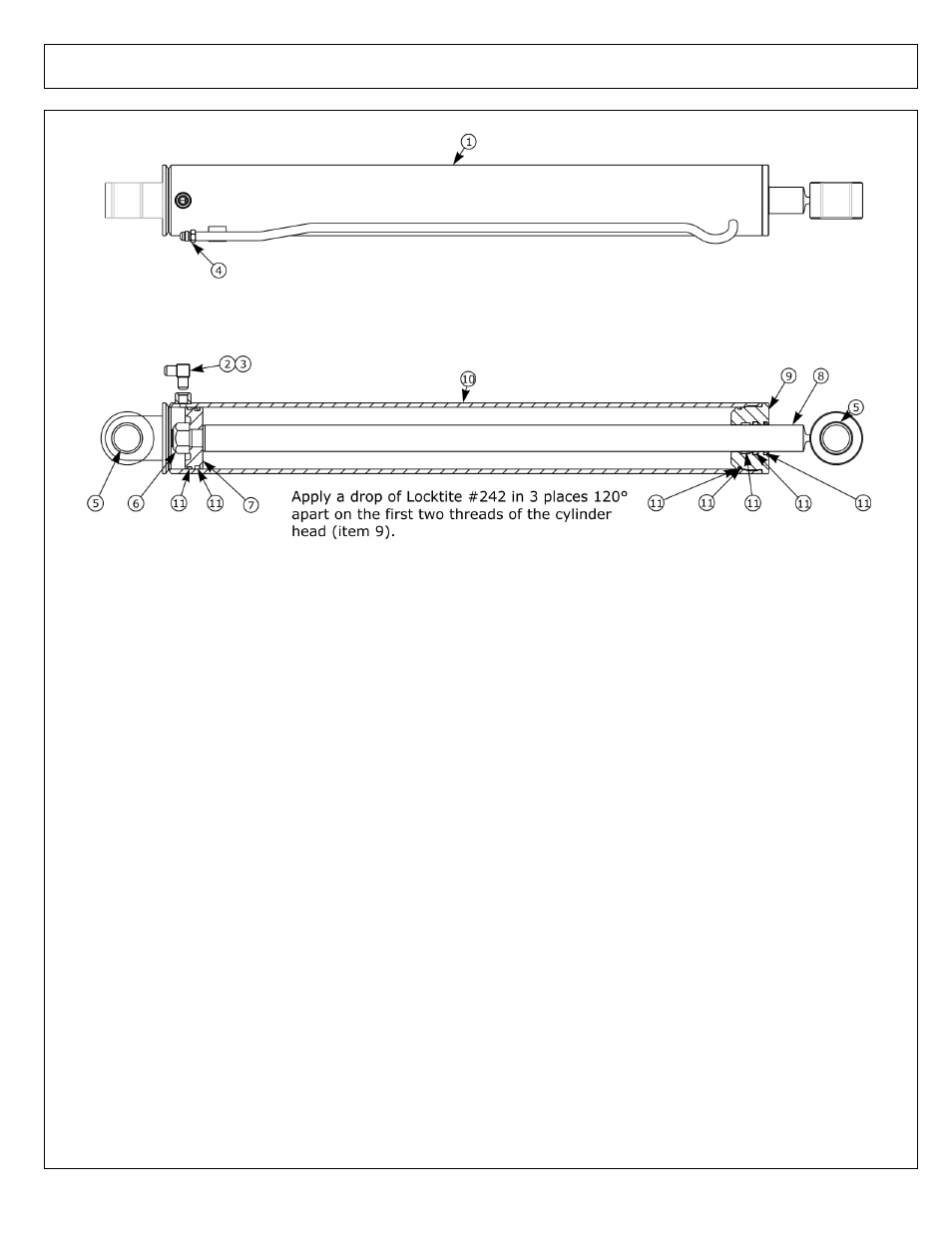

HYD CYL ASY - DIPPER (18 FT BOOM)
ITEM PART NO. QTY. DESCRIPTION
02979920 1 DIPPER CYLINDER ASY.
1 02979784 1 CYLINDER HEAD
2 63149100 1 ADAPTER, ELBOW
3 02968830 1 PLASTIC TIE - W/ BLUE TIE
4 02968831 1 PLASTIC TIE - W/ BLUE / WHITE TIE
5 02968803 2 BUSHING
6 5JRC16140 1 LOCKNUT
7 00002625 1 PISTON
8 02978823 1 ROD WLDMT
9 02979947 1 CYLINDER HEAD
10 02979924 1 TUBE / BARREL WLDMT
11 02975531 1 SEAL KIT
©2012 Alamo Group Inc. Parts Section -117
Axtreme2 Boom (09-09) Rev 02-12
